Overview

The

Eikos rear panel is equipped with 11 universal digital and analog inputs. Inputs #1 through #4 (3) are

universal analog inputs. Inputs #5 & #6 share a DVI-D signal and a universal analog signal (plug the included

Analog Way DVI/HD15 adaptor cable to use DVI-D and analog signals simultaneously).

The Main and Preview (6) outputs will allow for the

Eikos high resolution digital and analog signals to be

viewed on screen and/or on a preview monitor (see also Output Specifications in this chapter).

The extra Video Out card installed on the

Eikos, can be used for recording, broadcasting or previewing

purposes in a wide range of formats for maximum compatibility with industry viewing or recording equipment.

Finally, the audio in and output card will let users mix audio with any source, accurately balance or tweak

sound sources and outputs.

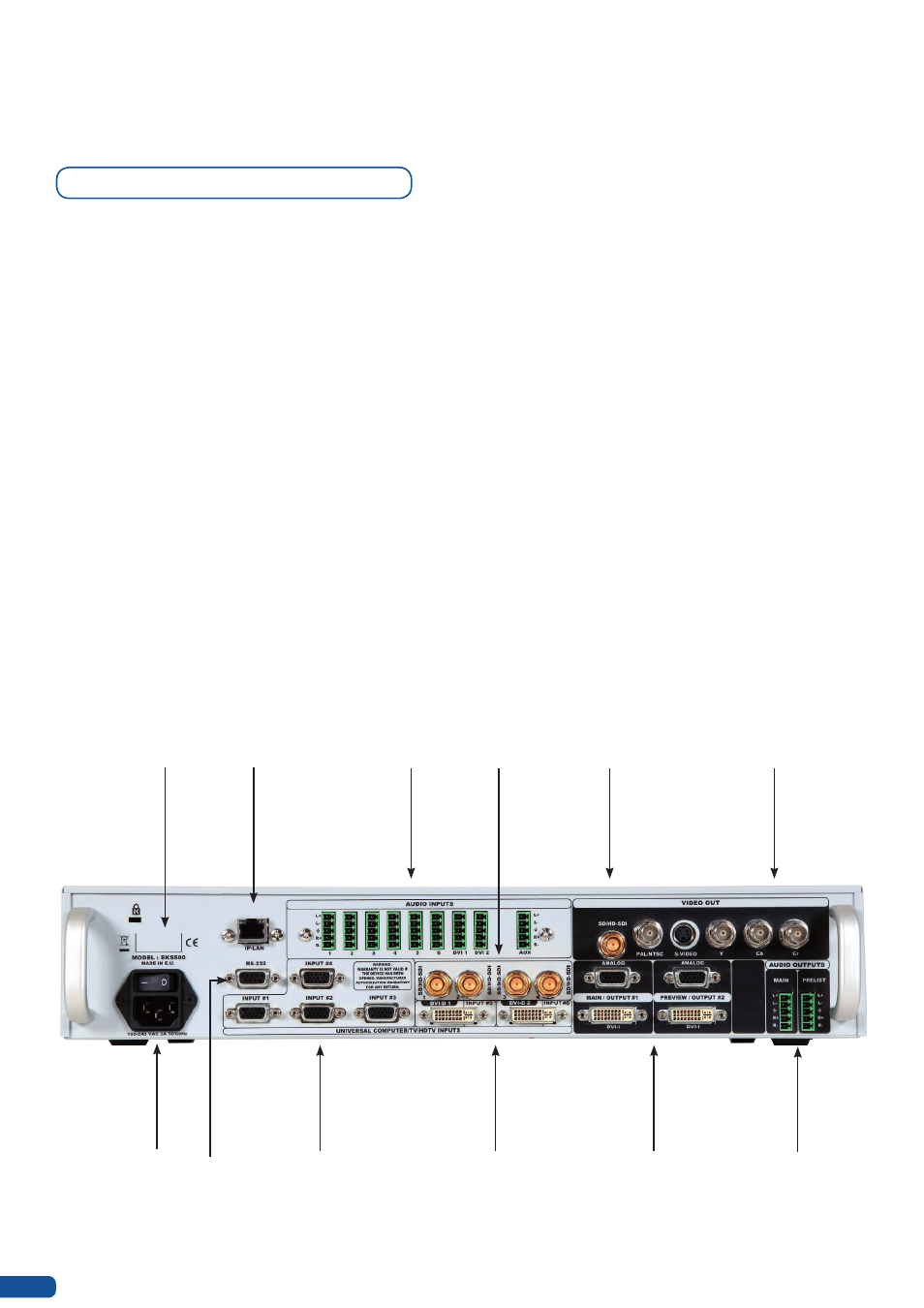

1 : AC outlet and on/off switch

2 : IP-LAN connector

3 : Universal Computer/TV/HDTV inputs

4 : DVI-D inputs

5 : HD- inputs

6 : Main and Preview outputs

7 : 3G/HD/SD-SDI output

8 : SD/HDTV output

9 : Audio inputs

10 : Audio outputs

11 : RS-232 connector

12 : Serial #

3-2. THE EIKOS REAR PANEL
