Opening transitions and closing Live Layers
Even the Logo and Frame buttons can access to their own settings, but a source # has to be affected too.
The Main output can displayed simultaneously up to 6 layers stacked from bottom to top as follows:
- The Background Frame: One stored frame selected from 8 available,
- The Background Live/ PIP#1: One source selected from 12 inputs available,
- The PIP#2: One source selected from 12 inputs available,
- The PIP#3: One source selected from 12 inputs available,
- The Logo#1: One stored Logo selected from 8 available,
- The Logo#2: One stored Logo selected from 8 available.
When transitioning live layers, depending on how many scalers are in use, the Eikos TAKE function will act in one
of 3 different ways when transitioning the Next Preset (Preview) to the Current Preset (Main):
• Take 1- shot: Case #1
- There are enough scalers for making a transition
- All inputs are locked on to scalers
- There are no contraints for closing before the Take
- All opening and closing transitions can be performed simultaneously.
• Take 2- shot: Case #2
- There are enough scalers for making a transition
- All inputs are locked on to scalers before the Take
- There are no constraints for closing during the Take
- All the necessary closing transitions are performed to free occupied scalers and then the Eikos performs all
openings.
• Take sequenced- shot: Case #3
- There are not enough scalers for making a transition
- All inputs are not locked on to scalers
- All the necessary closing transitions are performed to free occupied scalers. The Eikos locks on to new sources
and performs all openings.
Working with PIPs
A PIP is used as a layer. Please report to WORKING WITH LAYERS section.

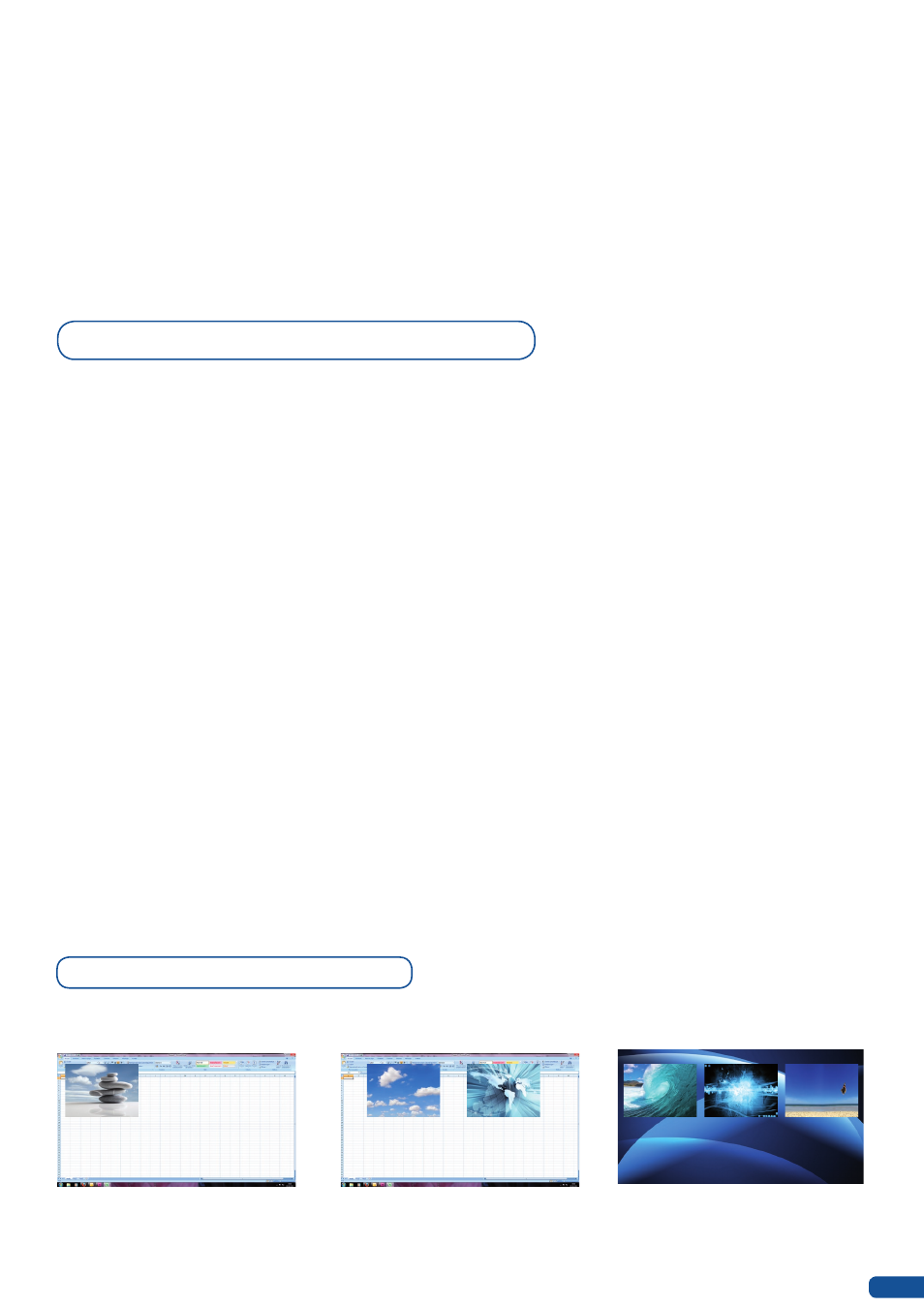

1 PIP + Live Background 2 PIPs + Live Background 3 PIPs + Still Background
