Analog Way Eikos User Manual

Page 39

INPUT1 NO SIGNAL

INPUT5 NO SIGNAL

DVI2 NO SIGNAL

SDI1 1920x1080 60.00 Hz

SDI2 NO SIGNAL

SDI3 NO SIGNAL

SDI4 NO SIGNAL

INPUT3 NO SIGNAL

INPUT2 PAL 50.00 Hz

INPUT6 1920x1080 60 Hz

DVI1 1920x1080 60.00 Hz

INPUT4 1920x1080 60 Hz

How to use the Mosaic Preview feature

To have better visualize all aspects of your inputs, two modes are available, when the Mosaic Preview

button is activated (Red light solid button):

Refresh current:

The input selected will be displayed at full frame rate on your Mosaic Preview

Select Mosaïc mode Menu --> Select Refresh current

- Refresh all:

To have a cyclic refreshment of all your inputs, select refresh all into the Mosaïc mode Menu.

All sources will be automatically refreshed.

Select Mosaïc mode Menu --> Select Refresh all

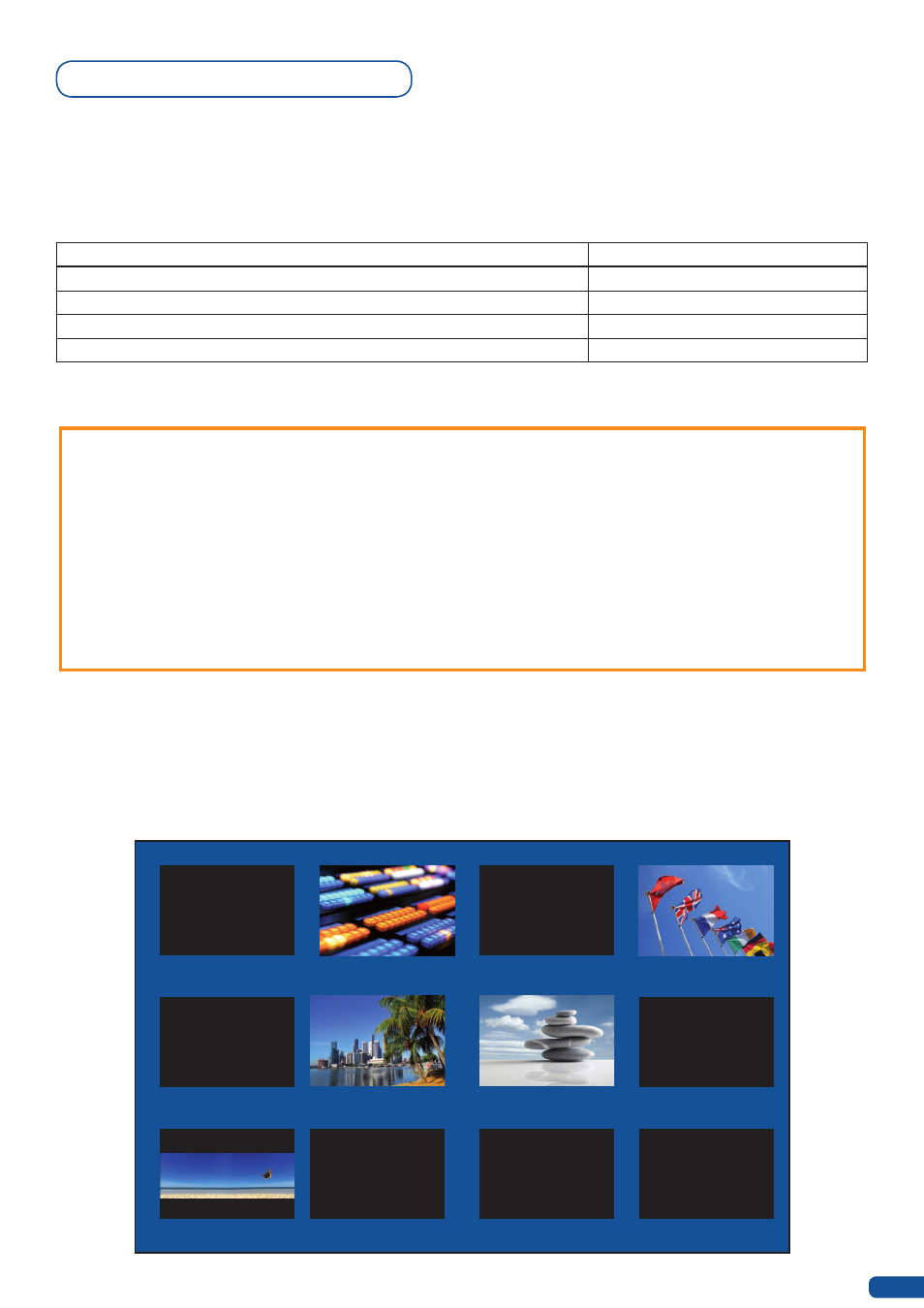

The Mosaic Preview displays all inputs on one screen with live information about the input status.

There are 3 lines of 4 pictures.

Information

Availability

Name of input

YES

Displaying (Green: Preview - Red: Main - Grey: No source)

YES

Resolution if recognized input

YES

Line frequency if recognized input

YES
