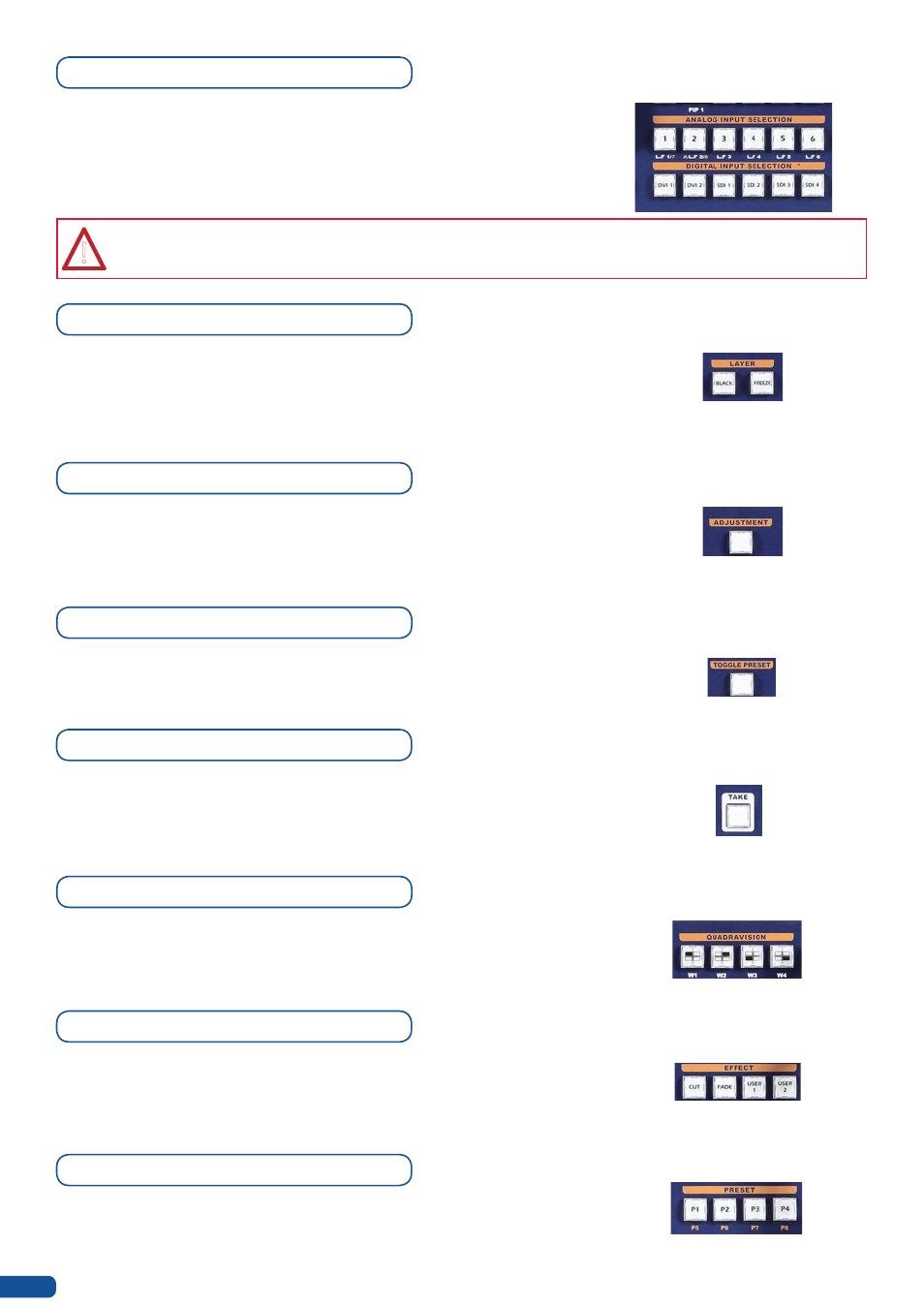

Freeze button
Toggle Preset
Take button
Quadravision selection button
Adjustment
Effect selection button
The Freeze button of the Eikos allows users to freeze the Main
output current display or the active input, depending on the freeze
mode: Freeze All or to freeze the current selected input [Input
Freeze].
The Eikos TOGGLE PRESET button allows users to return the
Current Preset to the Next Preset.
The Eikos TAKE button allows to switch from Preview to Main outputs.
By pressing the TAKE button, what you have setup on your preview
screen will be transitioned to the Main output display.
The Eikos QUADRAVISION Selection button is a practical Front
Panel shortcut to the Window Selection Button to Fill the Template.
The Eikos ADJUSTMENT button allows users to select which
type of adjustment: Pos, Size or Zoom. Press the button for toggle
between 2 menus: Layer Adjust or Layer Zoom.
The Eikos EFFECT SELECTION button selects the assigned Effect
to the active layer.
Preset selection button
The Eikos PRESET SELECTION button allows you to instantly
recall a saved preset.
Input selection section
The Input Selection section allows to select which input ( # 1 to # 12)
to display in a selected layer. Select one of 12 simultaneous inputs,
(6 analog inputs, 2 DVI-D inputs, 4 3G/HD/SD-SDI inputs) by simply
pressing one of the Input buttons.
! The BLACK button allows users to remove layer content on screen.
