Analog Way Eikos User Manual

Page 58

To use the Mirror mode, just perform your setting and operation from the Matrix output

Nevertheless, you can do manipulation on the output

2 at any time.

For a perfect use, set up the output format and rate for the output

2 as for the output

1 using the synchro-

nise button:

Output

2 → Synch w/Out 1

Working with Mirror Modes

The Mirror Matrix Mode is a specific Matrix Mode where the output

2 will be the perfect mirror copy of the

output

1. In that way, each settings apply to output

1 will be performed on the output

2 too.

Mode Menu → Matrix Mode Menu

Using the Matrix Mode, several configurations are available, the simple Mode and the mirror mode.

Using the Mirror Mode:

Select the chosen layer and go in the layer menu, then select the “Layer Copy Mode” menu.

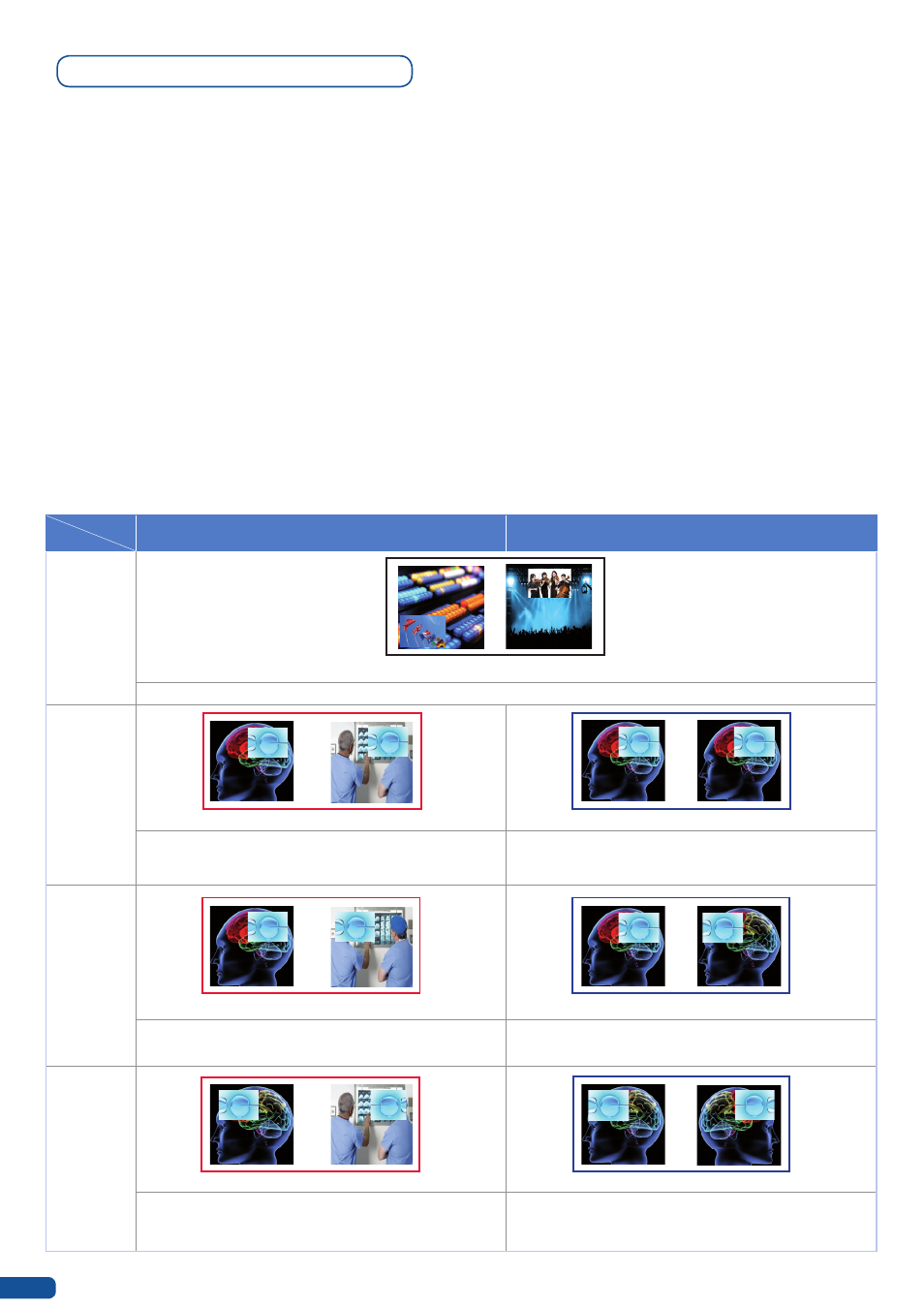

There are several mirror positioning options:

To use the Mirror Mode, simply select the Matrix Mode throught the main menu, then the Mirror Mode can be

activated layer by layer thanks to the layers menu.

PIP

PIP + Background

No Copy: This mode is the standard Matrix Mode, output #1 and #2 are independent

Copy Mode (Clone mode): Output #1 and #2 will be the same. All

changes on output #1 will be affected to output #2. PIPs will have

the same position and size

Copy Mode (Clone mode): Output #1 and #2 will be the same. All

changes on output #1 will be affected to output #2. The PIP and

the background will have the same position and size

Copy & Horizontal position Flip mode: Output #2 will be exactly

the same as output #1 except the fact that the selected PIP will

have its Horizontal position flipped

Copy & Horizontal position Flip mode: Output #2 will be exactly

the same as output #1 except the fact that the selected PIP or

background will have its Horizontal position flipped

Copy & Horizontal + Data Flip all modes: Output #2 will be

exactly the same as the output #1 except the fact that the selected

PIP will have its Horizontal position and data flipped

Copy & Horizontal + Data Flip all modes: Output #2 will be

exactly the same as the output #1 except the fact that the selec-

ted PIP or background will have its Horizontal position and data

flipped

OUTPUT #1

OUTPUT #2

OUTPUT #1

OUTPUT #2

OUTPUT #1

OUTPUT #2

OUTPUT #1

OUTPUT #2

Mode

Layer
