N+1 Configurations, continued

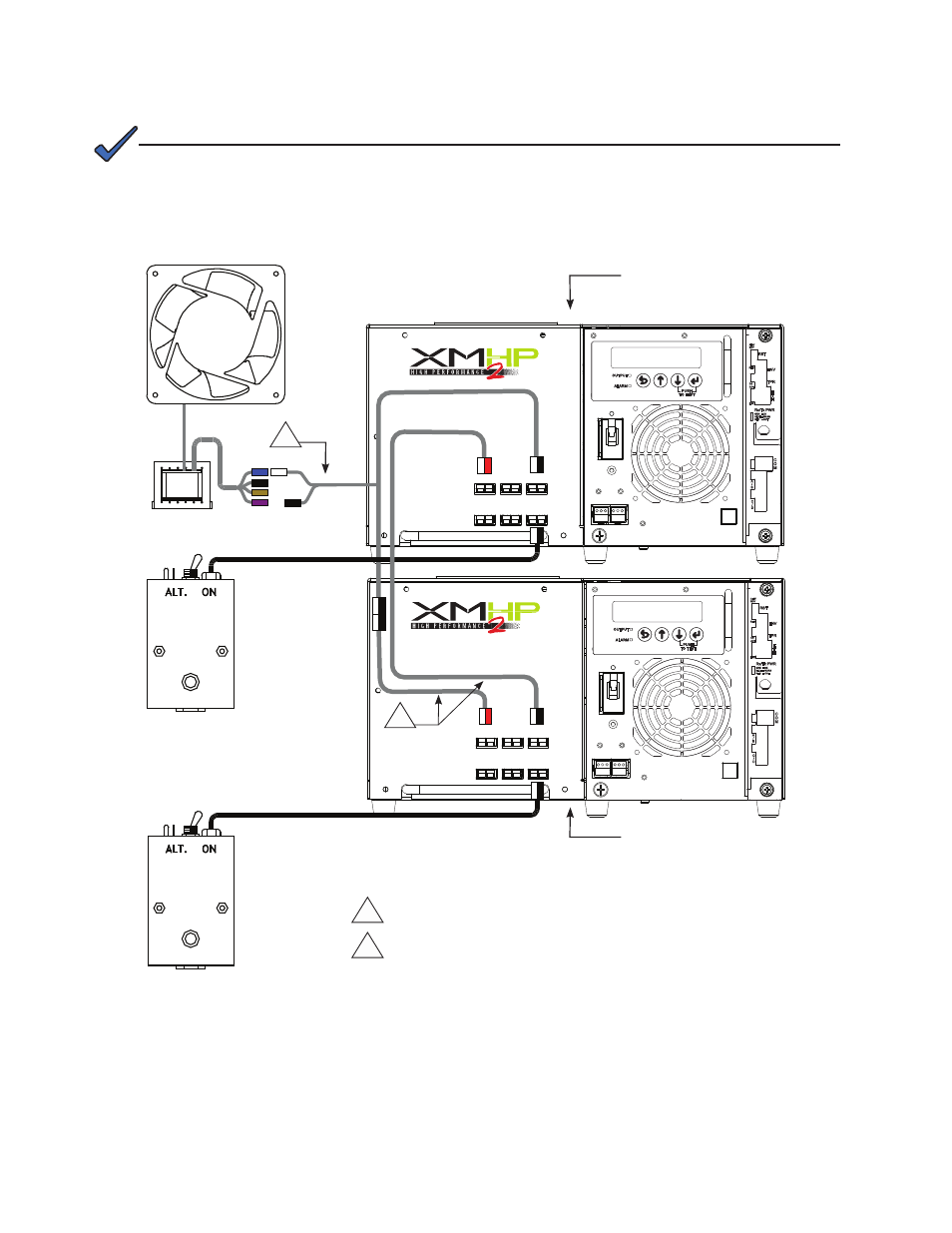

Fig. 2-15, Dual Redundancy (N+1) Configuration

The N+1 unit and the primary unit cannot be loaded over 50% of rated capacity when configured as
shown below.

NOTE:

1

2

Enclosure Cooling Fan

1

2

Fan Kit (Alpha P/N: 874-553-20)

2 ea., Wire kit, N+1 Cable(Alpha P/N: 874-647-20)

Redundant N+1 Power Supply

(with optional PIM installed)

Primary Power Supply

(with optional PIM installed)
