2.6 Installing the Optional PIM, continued
(Front of Power Supply)

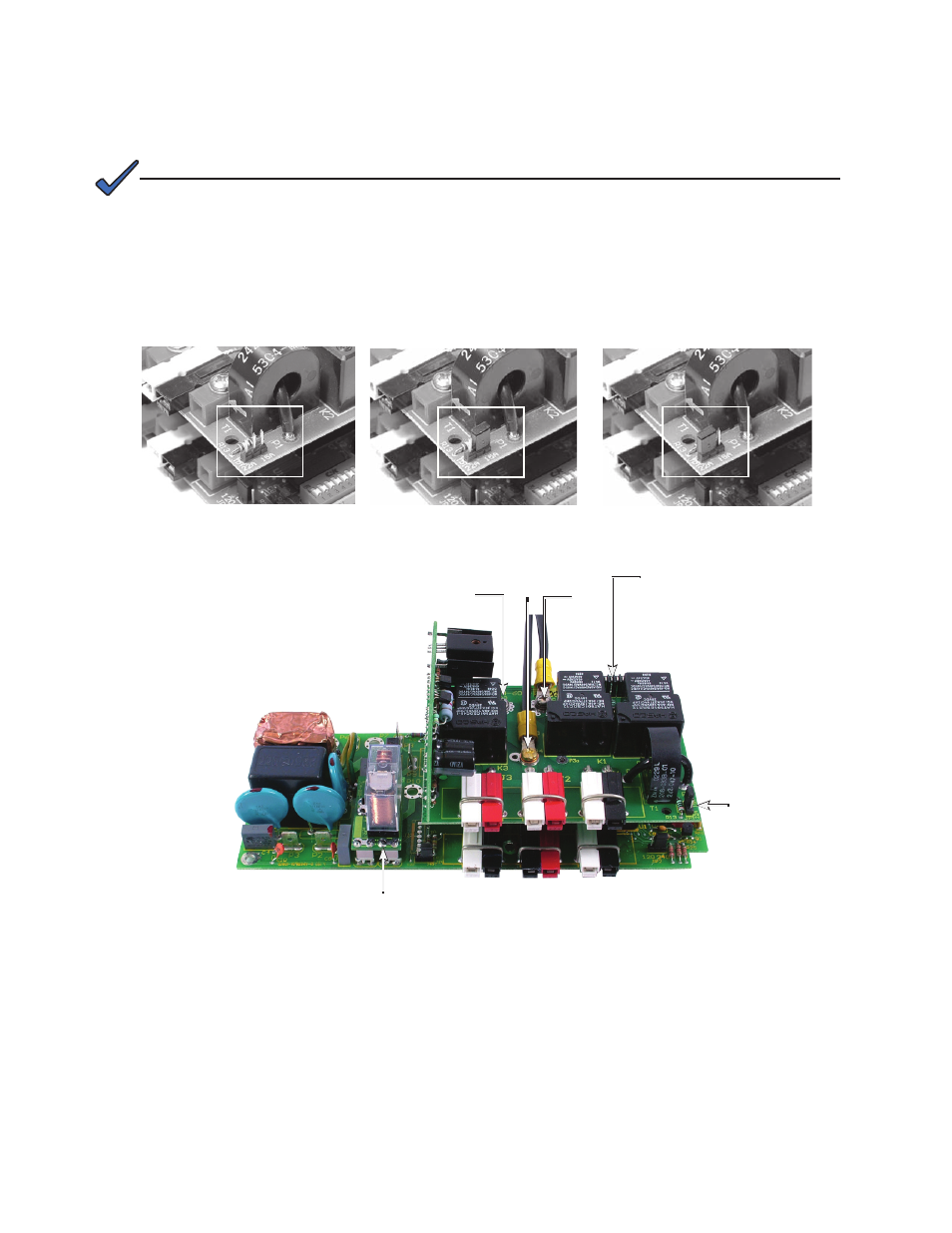

Fig. 2-10, Location of JP1 on PIM Fig. 2-11, Jumper in 15A position Fig. 2-12, Jumper in 22A position
Fig. 2-13, PIM (Protective Interface Module) and PDB (Power Distribution Board)
The output current limit for the PIM is set by the position of the jumper on JP1. Configure JP1 to the
proper current setting; either 15A or 22A.* For the 918HP and 924HP Cable UPS models, set this
jumper to the 22A position
NOTE:
J4
P3
P4
P5
15/22A
Jumper
Replaceable
Line Isolation Relay
* For additional configuration assistance, call Alpha Technologies Technical
Support, 1-800-863-3364
