6.3.8 View live status inverter report
This submenu of Inverters will enable the user to view, in a list report, all of the acquired inverters in the sys-
tem. The first column lists the module numbers (ID) of the inverters; which may be re-assigned. The report
then displays the unique serial number and module version, followed by the corresponding AC In, DC In, and
AC Out group mapping values. The input frequency and temperature of each inverter completes the top por-
tion of the report table. The bottom portion of the report lists all the currently active inverter module specific
and system alarms.

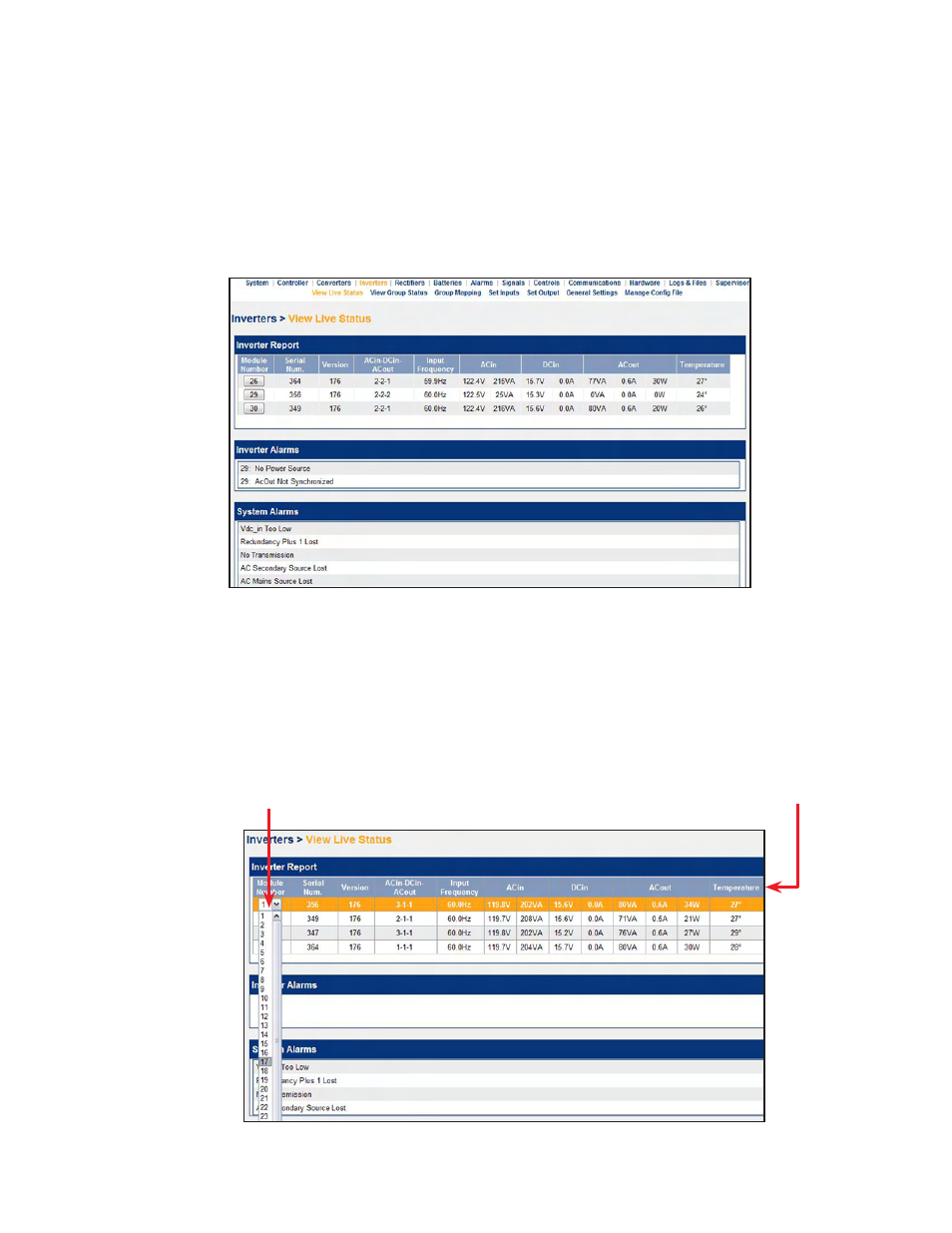

Figure 43 —
View live status page
Figure 44 —
View live status — inverters page
A pull down menu allows the user to re-
assign the inverter module number in the
report to correspond with its physical loca-
tion on the shelf, for example.
Selecting a module number that is already
used will swap the two modules.
Select a row to send a
locate command. The
inverter module's LEDs
will blink momentarily
