2 dc input groups – Alpha Technologies AMPS80 HP User Manual
Page 30

Doc. #: 026-069-B0 Rev F
28
3.6.2 DC Input Groups
The configuration of the DC input to the inverters provides several different ways to monitor DC input power
and input current. The number of DC Input Groups (maximum eight) is set in the
Inverters > Group Mapping
screen and monitored as a unit in the
View Group Status
screen. The following table gives examples of pos-
sible configurations.
Monitoring
DC Source
Bulk
Assign all inverters to DC Input Group 1.
Dual Input
For example:
Assign all the inverters in column 1 & 2 to DC Input Group 1.
Assign all the inverters in shelves 3 & 4 to DC Input Group 2.
Quad Input
For example:
Assign all the inverters in column 1 to DC Input Group 1.
Assign all the inverters in shelves 2 to DC Input Group 2.
Assign all the inverters in column 3 to DC Input Group 3.
Assign all the inverters in shelves 4 to DC Input Group 4.

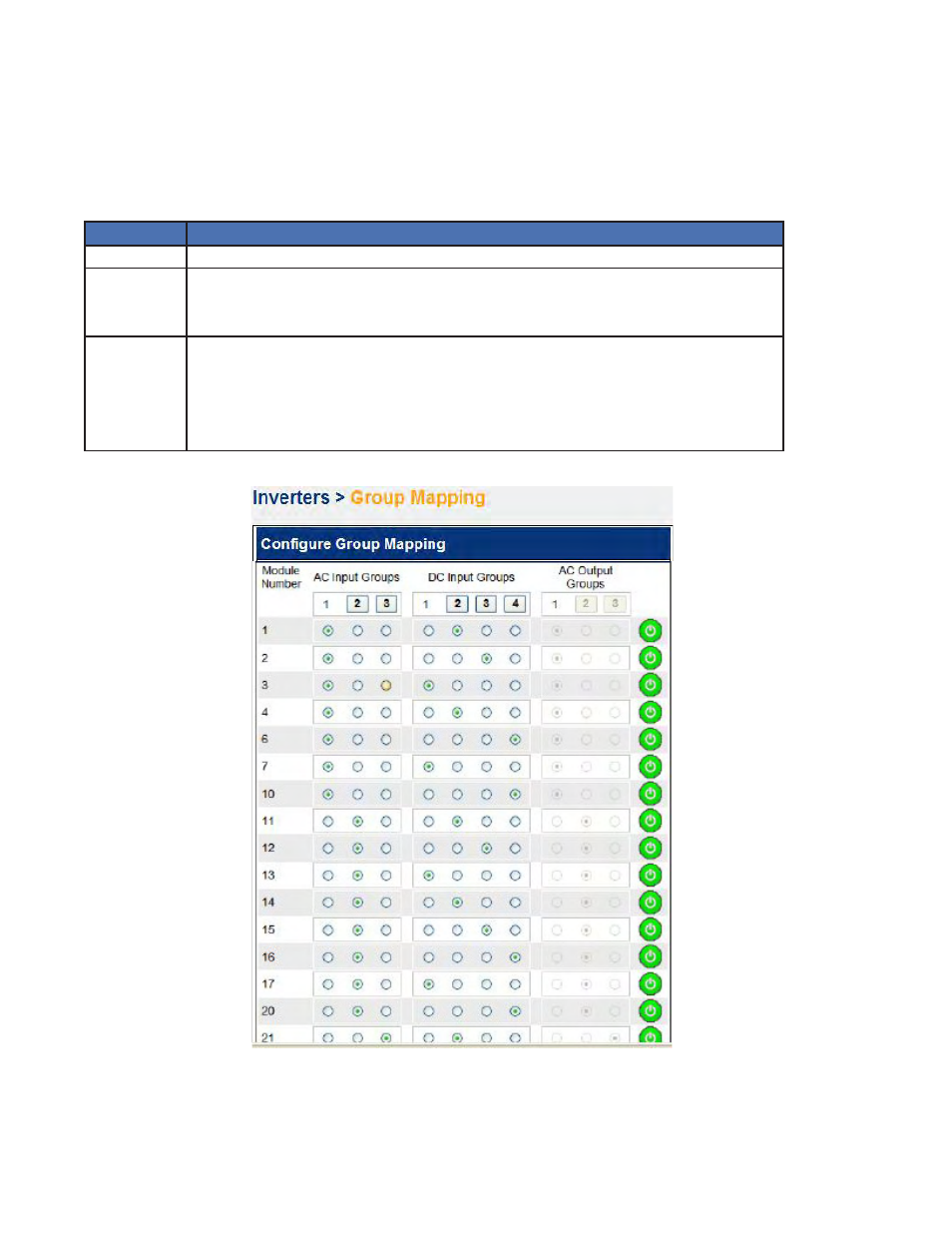

Figure 9 —
Inverter mapping for AC and DC Groups
