6.3.4 Startup and Reset Procedure
When the CXC is powered-up or reset, it will first perform a 15 second self-test before displaying the Cordex
logo. The three front-panel LEDs illuminate temporarily, and then extinguish after the system has finished its
self-test. The GUI then displays the power system parameters during Normal operating mode.
6.3.5 Normal Operation
This is the default-operating mode or “home page.” The GUI displays system status information and monitors
all input channels. The Analog Signals Display on the home page show two lines of text for system voltage
and current by default.
Each active area is touch sensitive and responds best to a stylus suited for this purpose.
Rectifier information
(Converter report if applicable)
Mode status
Alarm condition icon
Priority icon
Software version
Home page icon, tap to login
AC Output Power
Alarm indication
Date and time

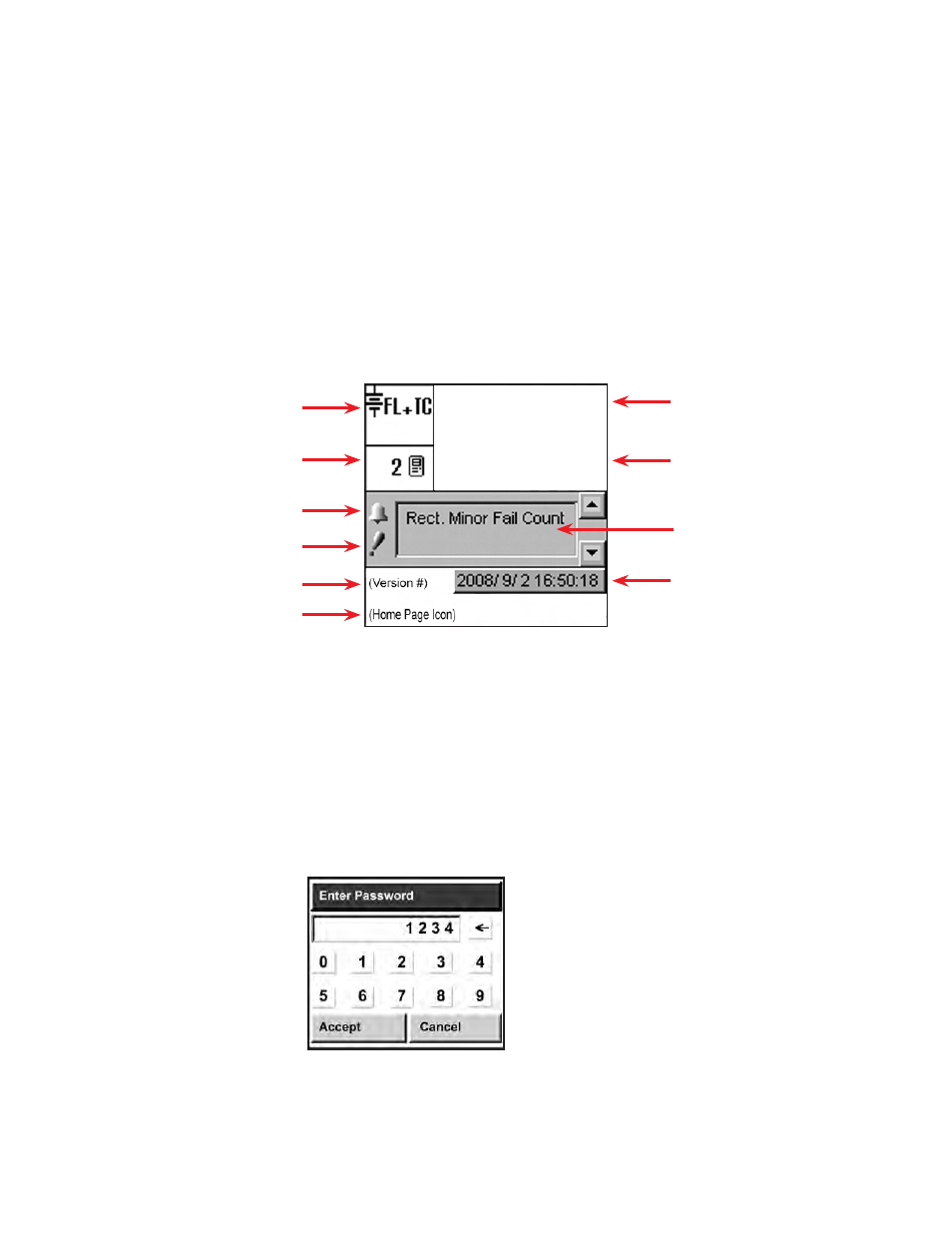

Figure 39 —
LCD active areas
Login
1. Tap the
Home
icon (Figure 39) and select
Login
from the menu prompt. A pop-up window for password
entry appears.
2. Enter
1234
for Supervisor access,
5678
(or nothing) for User access. In User access mode, the user
cannot make changes to parameters but can navigate through menus.
Figure 40 —
Password entry pop-up window
252W
2%
% ratio of the Output
Power VA or Watts
whichever is higher
