2 recommended installation layout – Alpha Technologies AMPS80 HP User Manual
Page 32

Doc. #: 026-069-B0 Rev F
30
4.2 Recommended Installation Layout
In the unlikely event that internal components need repair, 1 m access around the unit is
recommended.
NOTE:
Minimum required clearances around the cabinet:
• Rear: 18" (46 cm)
• Sides: no clearance required.
However for 75 kVA hybrid systems and systems with TVSS option, 36" (100 cm) clearance to the left
side of the cabinet is strongly recommended for ease of service
• Top: 12" (30 cm)
• Front: 36" (100 cm)
OTHER EQUIPMENT
OR WALL
OTHER EQUIPMENT OR WALL
3 Feet
The 1m recommended
clearance only applies to 75kVA
hybrid systems with TVSS
option (for ease of service).
Minimum distance
for ventilation
Minimum distance
for service
Minimum distance
for ventilation
Rear
Front
OTHER EQUIPMENT
OR WALL
18in
6.0in
[46cm]
[15cm]
[1 m]
3 Feet
[1 m]

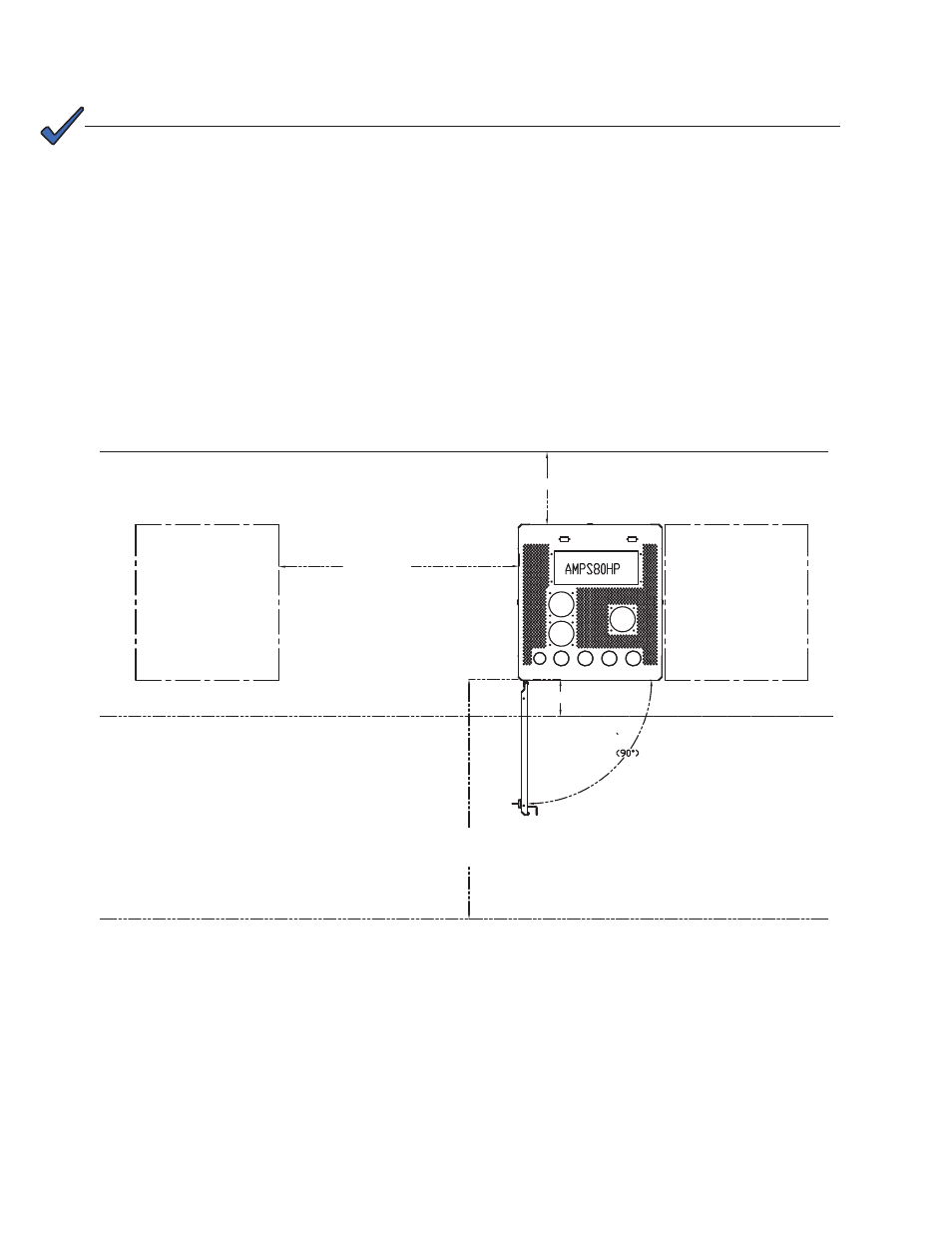

Figure 10 —
Installation layout and clearances
