1 ac input groups/ ac output groups – Alpha Technologies AMPS80 HP User Manual
Page 29

27
Doc. #: 026-069-B0 Rev F
3.6 How to Configure Inverters in AC Input Groups, AC Output
Groups and DC Input Groups
The following sections show how to distribute the inverters among the phases and also suggests how to dis-
tribute the DC input to the inverters.
3.6.1 AC Input Groups/ AC Output Groups

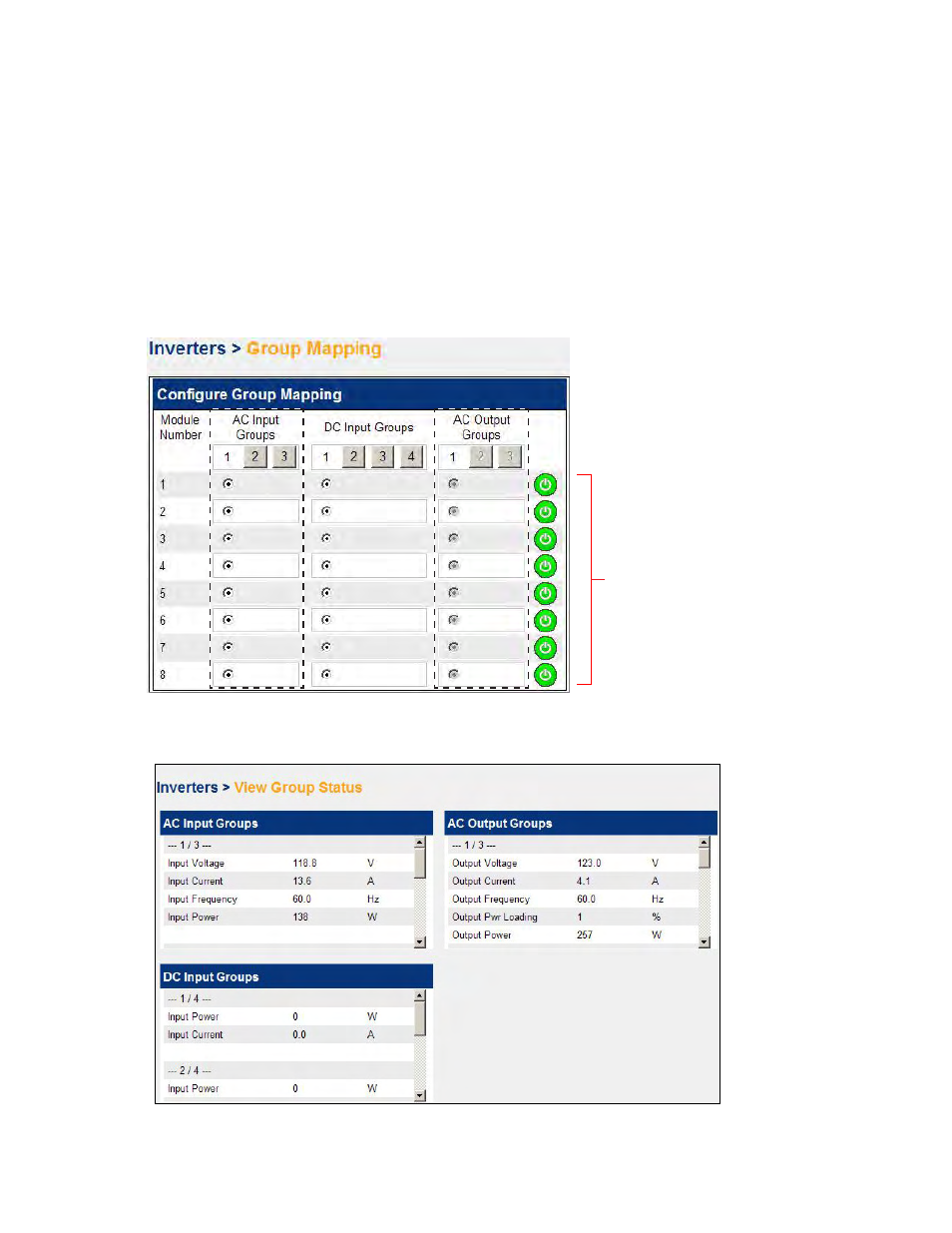

The CXC controller provides an interface to assign inverters to phases (
Inverters > Group Mapping
).
The logical approach is to match the configuration of inverters in the AC Input Group to the configuration of
inverters in the AC Output Group as shown. See Figure 9 also for three Input Groups.
These groups of inverters can then be monitored as a unit in the
View Group Status
screen.
Figure 8 —
Monitotring AC Input Groups, AC Output Groups and DC Input Groups
Turn off the inverters to configure
AC Output Groups by clicking the
green power icon.
