APPENDIX A Page A-3 A
LS300 User’s Guide
System Specifications
Third Party Approved Maximum Pipe Length
RIGID Pipe: 163 Gallon (617 L) & FLEXIBLE Pipe 39.5 Gallon (149.5 L)
System Approvals
Third-Party Tested & Approved using:
LS300-120 Plus, A/L Algorithm (Patent Pending)
WARNING This leak detector is designed for motor fuels for blend concentrations of:
· 0%-100% ethanol or methanol and gasoline 20% ETBE with 80% gasoline
· 20% MTBE with 80% gasoline
17% TAME with 83% gasoline
Other motor fuels that may be used with this product are Diesel, Avgas, Jet Fuel, or Kerosene. The maximum
liquid viscosity for a product is 70 S.S.U. at 60° F.
CAUTION This leak detector is designed for use in specific applications and in compliance with industry
standards and practices. Using it in applications for which it was not designed, or failure to follow industry
standards and practices, may cause the product to malfunction or fail.
CAUTION The LS300 Auto-Learn ® LLD can detect a leak from the STP check valve to the solenoid valve
at the dispenser, assuming no other Normally Closed valve is in the pipeline system. The LS300 Auto-
Learn
® LLD does not detect leaks in the storage tank or the submersible pump before the check valve.

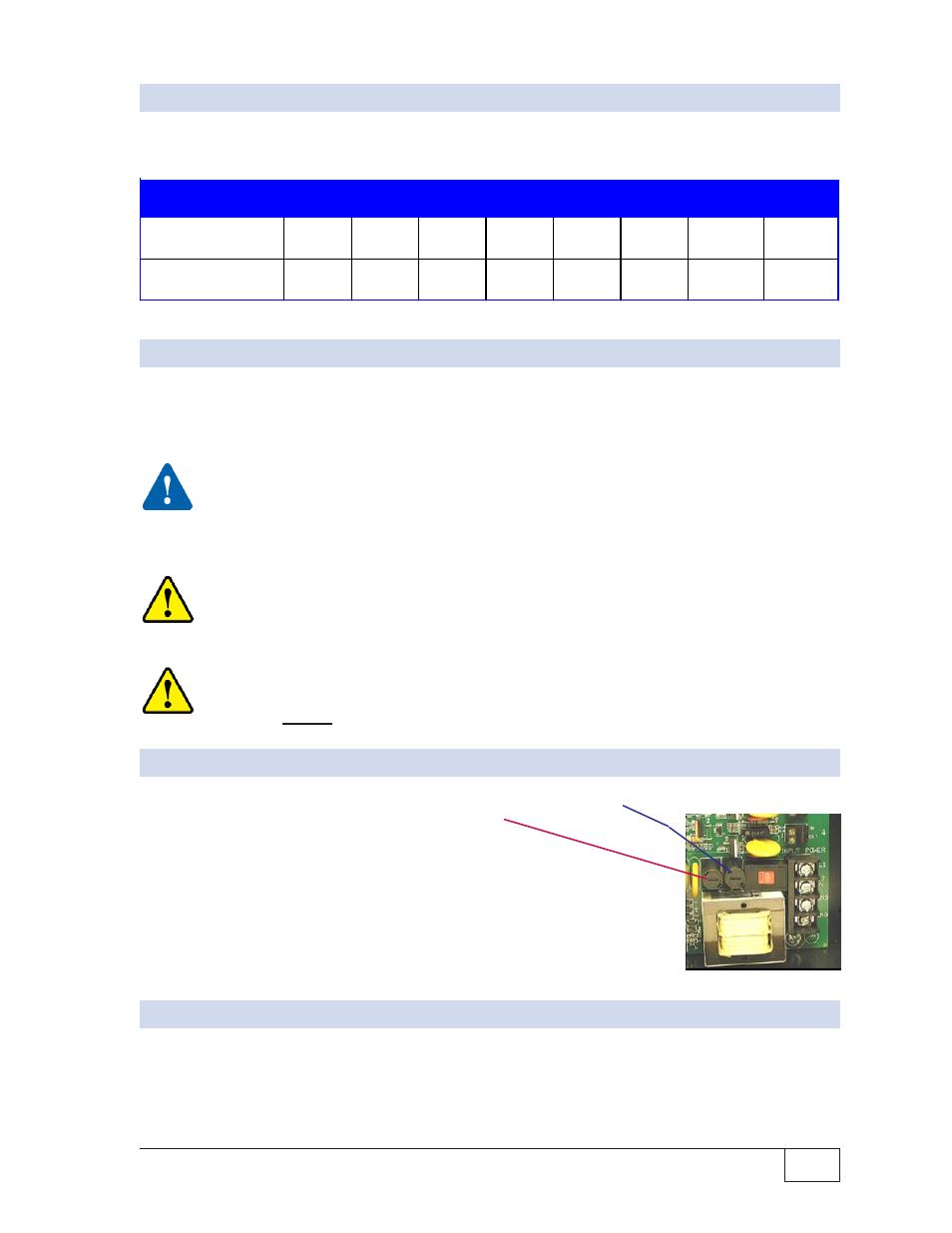

Console Replacement Parts
(1) 1/2 amp. slo-blow 5x20 250V fuse F2 for Console Overcurrent protection
(1) 1 amp. 5x20 250V fuse F1 for Hook Inputs Circuits
Display (front panel) assembly – 4 Channel
Display (front panel) assembly – 2 Channel
Ribbon Cable – Display to Main PC Board
Main PC Board (I.S. version)
Main PC Board (Explosion Proof version) for LS300E consoles &
LSU300E Explosion Proof Transducers only
TPI PC Board
Contact INCON for Order Numbers for the Replacement Parts
Spare LS300 System Parts
Spare I.S. Transducer – TS-LSU300
Spare Explosion Proof Transducer – TS-LSU300E for TS-LS300E Exp.Proof consoles only
Spare Leak Generating Device/Calibration Kit – TS-ALCAL
Spare Accessory Kit (nipple & needle valve) – TS-ALNIP
SW1
P ipe D iame te r I.D .
1"
(25 mm)
1 1/2"
(38 mm)
1 3/4"
(44 mm)
2"
(51 mm)
2 1/2"
(64 mm)
3"
(76 mm)
4"
(101 mm)
5"
(127 mm)
Max. R igid P ipe
Length
3995'
(1217 m )
1775'
(541 m )
1304'
(397 m )
998'
(304 m )
639'
(195 m )
443'
(107 m )
249'
(76 m )
159'
(48 m )
Max. Flexible P ipe
Length
968'
(295)
430'
(131 m )
316'
(96 m )
242'
(74 m )
154'
(46 m )
107'
(33 m )
60'
(18 m )
38'
(12 m )
