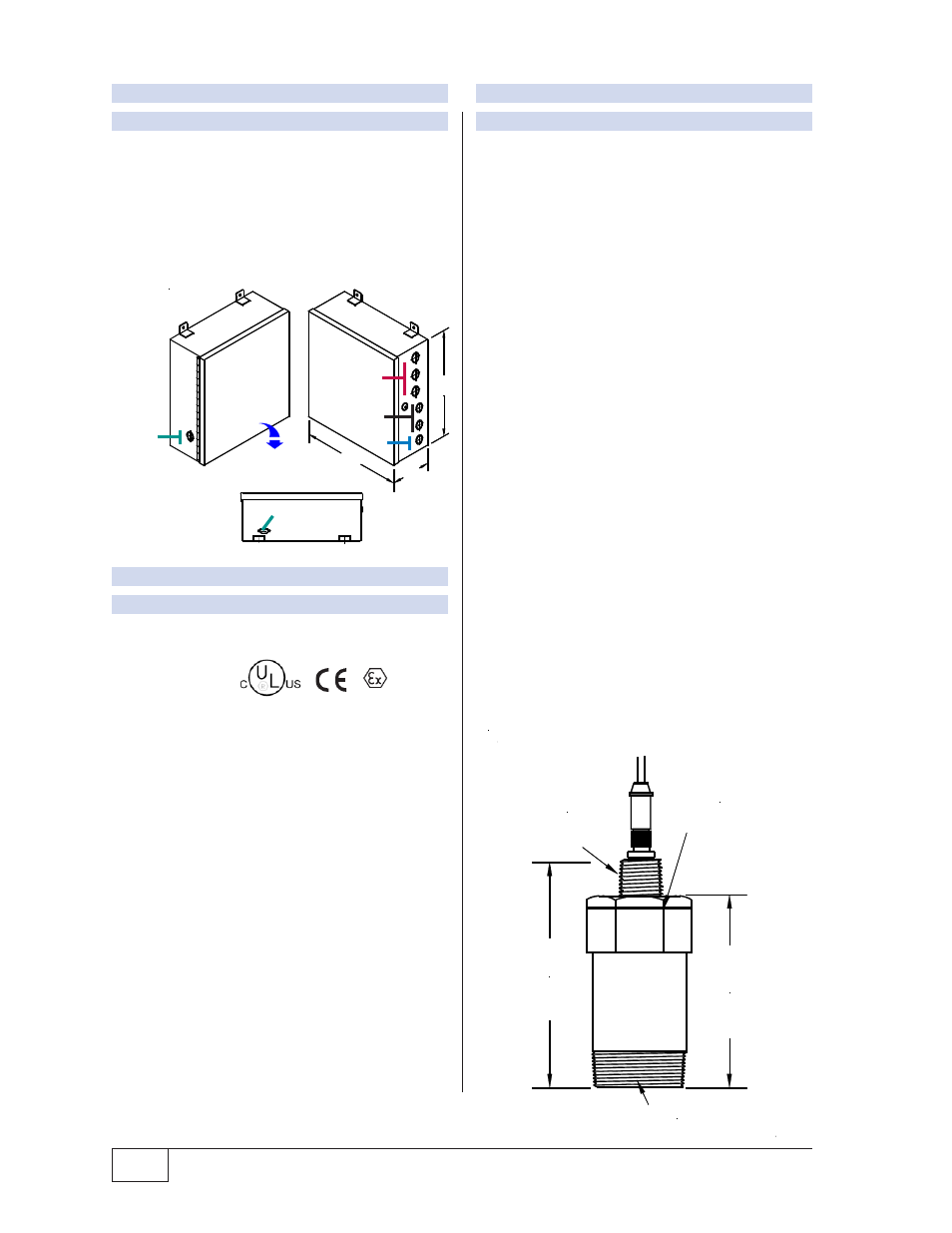

A Page A-2 APPENDIX A
LS300 User’s Guide
Pressure Transducer
Specifications
Model LSU300 Transducer
Approvals:
Electrical Specifications
Input Power = 10 to 32 VDC
Output Signal = 1 to 5 VDC
Signal Ground = Ground
Output Load
= 10K ohm output load
Output Noise = < 2 mV
Current = < 10ma
Insulation color:
Red = Input Power = V+
White = Output Signal = Signal
Black = Signal Ground = Ground
Bare Wire = Shield Drain = Ground
Unit is Reverse-Polarity protected
Applicable Liquid Products:
Petroleum (Gasoline, Diesel Fuel, Kerosene, Fuel
Oil, #2 Fuel Oil)
Accuracy:
0.5% FS (FS=Combined Linearity, Hystereses
and Repeatability)
Auto-Learn ® Console
Specifications
Mechanical Specifications
Inches & ( mm):
Enclosure 11.75H x 10.75L x 3.75D
(298H x 273L x 95D)
Encl. w/ Door 12H x 11L x 4D
(305H x 279L x 102D)
Pressure Transducer
Specifications
Stability:
0.25% FS over full operating temperature
Materials Used:
Housing = Anodized Aluminum
Pressure Transducer (wetted portions) =
17-4
PH or 316 Stainless Steel
Environmental Specifications
Storage Temperature:
-67° to 185° F (-55° to 85° C)
Operating Temperature:
-40° to 149° F (-40° to 65° C)
Operating Pressure:
Normal 25 to 29 psi (1.7 to 2.0 Bar)
Transducer burst 500 psi (34.5 Bar)
Vibration:
10 G peak, 20 to 2000 Hz
Safety
LSU300 transducers are Intrinsically Safe for
installation in: Class I, Division 1, Group D (EU
Group IIA) hazardous locations, and
LSU300E transducers are Explosion Proof
Mechanical Specifications
inches: (mm):
6.25H x 2NPT (159H x DN50NPT)
H
L
D
Dispenser
Hooks
LSU300
transducers
RS232
Comm Port
Optional
TS-TPI
to
TS
Console
Input Power
2 INCH NPT
(DN50 NPT)
6.25
INCHES
(159
mm)
3/4 INCH
NPT
(DN20NPT)
5.13
INCHES
(130
mm)
2-3/8
INCHES
(70 mm)
ACROSS
FLATS
