2

Overview

The TS-SCM (Secondary Containment Monitoring) system is a continuous secondary containment monitoring system that 

monitors the interstitial spaces of double walled tanks and sumps, secondarily contained product and vapor return piping. 

This product can be ordered as an available option with Franklin Fueling Systems’s TS-550 and TS-5000 FMS consoles.
The TS-SCM system is comprised of an application running on a T5 series FMS console and all necessary input and 

output modules with installation kits. The Secondary Containment Control Module (SCCM) consists of a vacuum sensor, 

solenoid valve, mechanical bypass valve, and vacuum manifold. SCM uses the STP siphon port vacuum to evacuate the 

containment space and AutoLearn® technology to determine the characteristics of each secondary containment area that 

is monitored. 

Warning

SCM equipment operates at a standard 2" to 6" Hg and should only be used to monitor contain-

ments that are designed to withstand these vacuum levels. Refer to the containment manufacturer

for further information.

Applications

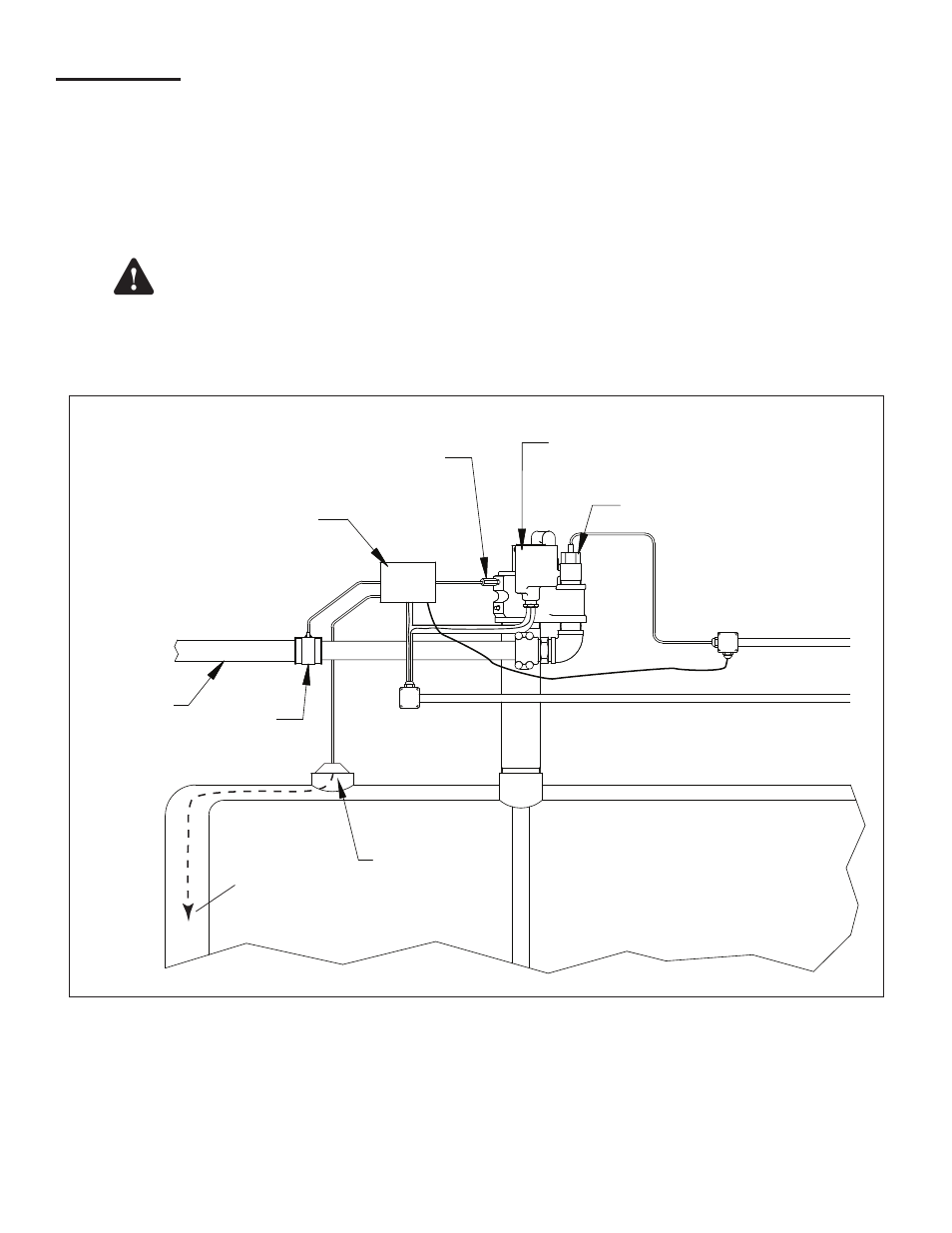

The following diagram illustrates a typical installation of SCM equipment inside of a STP sump.

Tank

Containment

Install Kit

Vacuum Sensor

Integral Solenoid

Product Pipe

Double Wall

APT

Test

Boot

APT

Syphon

Check Valve

TS-LSU500

Pump

Submersible

FE Petro

TS-SCCM/1

High Voltage Conduit

Intrinsically

Safe Conduit

To Bottom
of Tank

Figure 1 – TS-SCM System Overview
