Matrix Software, cont’d
MTPX Twisted Pair Matrix Switchers • Matrix Software 5-4
PRELIMINAR
Y
2 . Choose either the comm port that is connected to the switcher’s serial port or
Emulate.
N Although IP [LAN] is available for selection, the switcher does not have an
Ethernet port. Do not select IP [LAN].
• If you selected a comm port, check the baud rate
displayed in the comm port selection window. If you
need to change the baud rate, click on the Baud button
and double-click on the desired baud rate.
Available rates are 9600, 19200, 38400, and 115200. The
default is 9600.
N See “Selecting the rear panel Remote port protocol and baud rate” in chapter 3,
“Operation”, on page 3-42, to identify the current baud rate from the front
panel.
Click OK and proceed to step 3.
• If you selected Emulate, click OK and see “Using emulation mode” on
page 5-14.

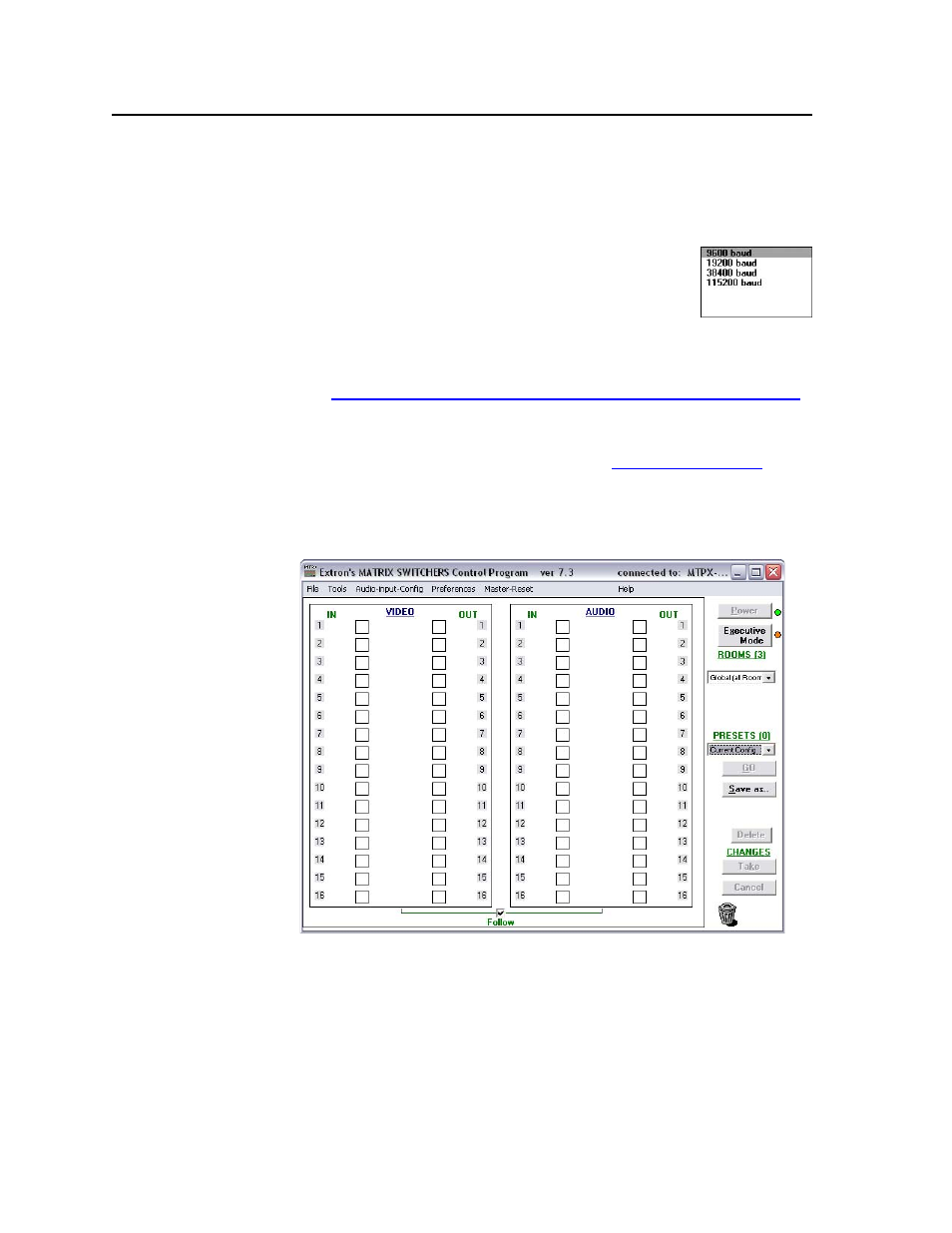

The Extron Matrix Switcher Control Program window (figure 5-4 and
figure 5-5) appears. The window displays the current configuration of the
attached matrix.
Figure 5-4 — Extron Matrix Switcher Control Program window (blank)
