Operation, cont’d
MTPX Twisted Pair Matrix Switchers • Operation 3-14
PRELIMINAR
Y

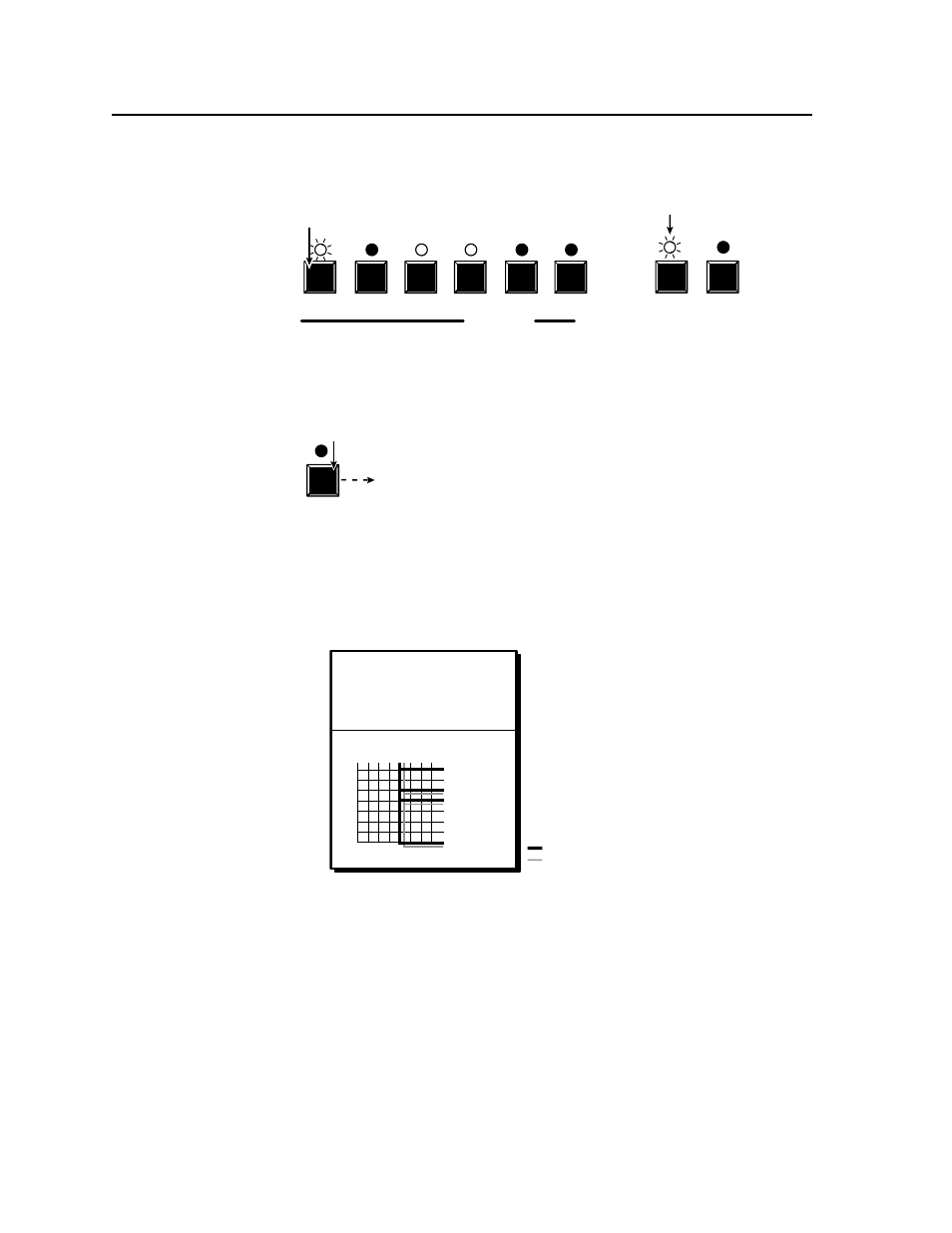

4 . Press and release the Output 1 button (figure 3-13).
1 2 3 4 5
OUTPUTS
6 ENTER PRESET
Press and release the Output 1 button.
The LED blinks to indicate that the selected
video input will be tied to this output. The Enter LED blinks to indicate
the need to confirm the change.
Figure 3-13 — Select the output
5 . Press and release the Enter button (figure 3-14).
ENTER
The Enter LED and all input LEDs and
output LEDs return to the unlit state.
Press the Enter button to confirm
the configuration change.
Figure 3-14 — Press the Enter button
The current configuration (figure 3-15) is now:
• Input 5 (video) is tied to output 1, output 3, output 4, and output 8.
• Input 5 (audio) is tied to output 3, output 4, and output 8.
Input 5 video tied
to outputs 1, 3, 4, and 8
Input 5 audio tied
to outputs 3, 4, and 8
Input
Output
1
3
4
8
5
Video
Audio
Figure 3-15 — Example 2, final configuration
