Operation, cont’d
MTPX Twisted Pair Matrix Switchers • Operation 3-16
PRELIMINAR
Y

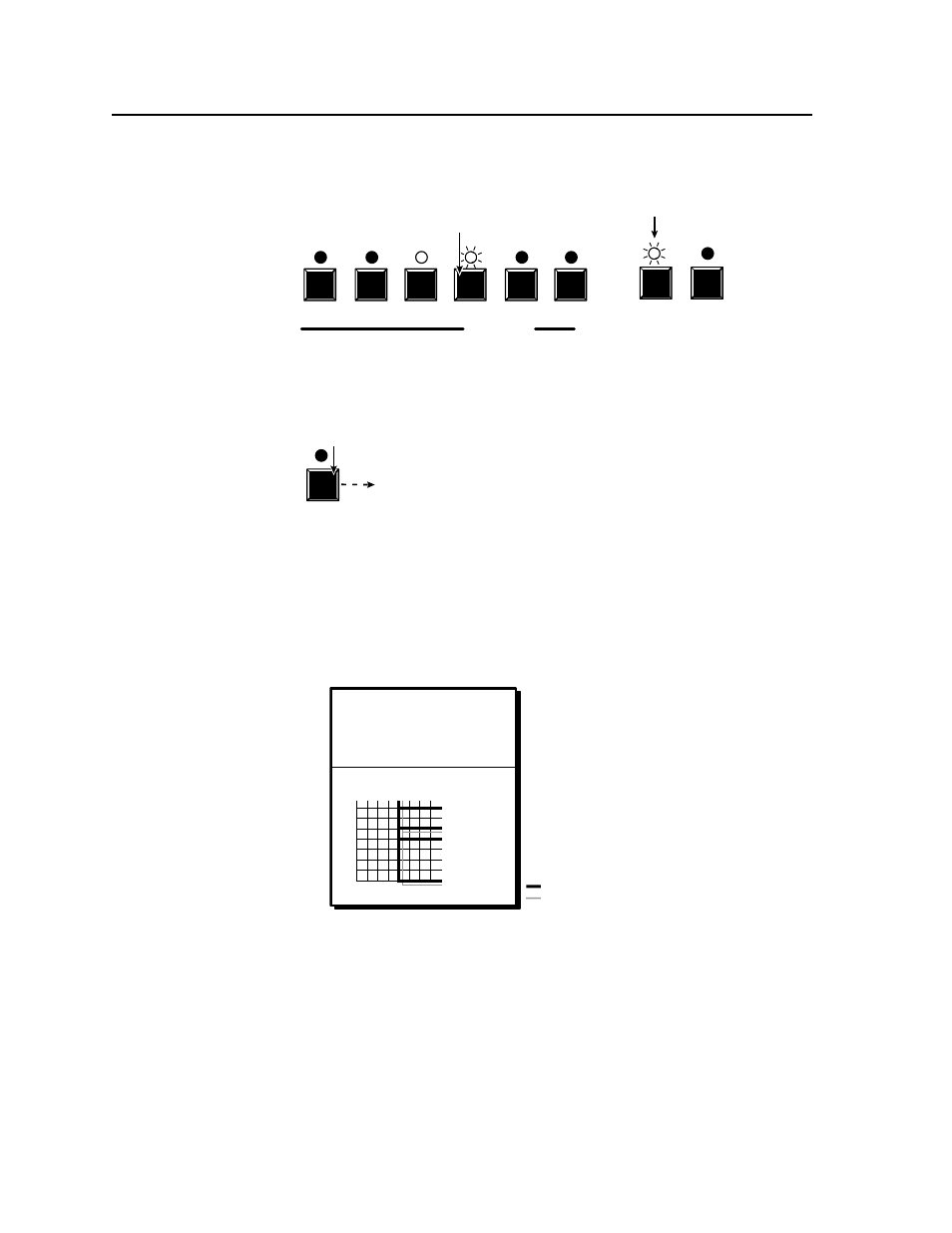

4 . Press and release the Output 4 button (figure 3-19).
ENTER PRESET 1 2 3 4 5
OUTPUTS
6
Press and release the Output 4 button.
The LED blinks to indicate that the
selected audio output will be untied.
The Enter LED blinks to indicate
the need to confirm the change.
Figure 3-19 — Deselect the output
5 . Press and release the Enter button (figure 3-20).
ENTER
The Enter LED and all input LEDs and
output LEDs return to the unlit state.
Press the Enter button to confirm
the configuration change.
Figure 3-20 — Press the Enter button
The current configuration (figure 3-21) is now:
• Video — Input 5 (video) is tied to output 1, output 3, output 4, and
output 8.
• Audio — Input 5 (audio) is tied to output 3 and output 8. (Input 5 audio
is no longer tied to output 4.)
Input 5 video tied
to outputs 1, 3, 4, and 8
Input 5 audio tied
to outputs 3 and 8
Input
Output
1
3
4
8
5
Video
Audio
Figure 3-21 — Example 3, final configuration
