3-11 MTPX Twisted Pair Matrix Switchers • Operation
PRELIMINAR
Y
Example 1: Creating a set of video and audio ties
The following example ties input 5 to outputs 3, 4, and 8. The steps show the front
panel indications that result from your actions.
N This example assumes that there are no ties in the current configuration.
1 . Press and release the Esc button (figure 3-4).
ENTER PRESET VIEW ESC
CONTROL
Press the Esc button to clear all selections.
The LED
blinks once.

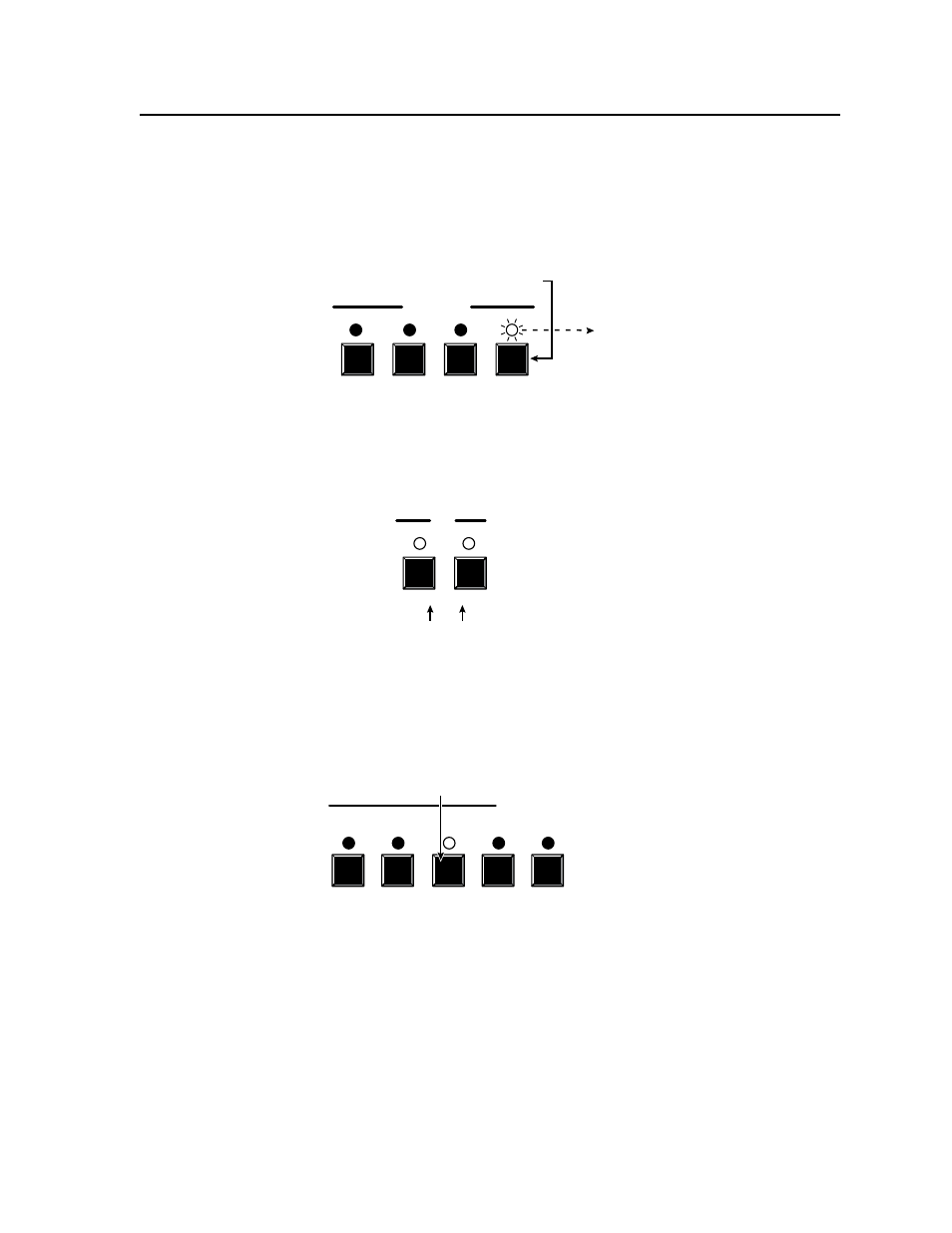

Figure 3-4 — Clear all selections
2 . To select video and audio for the tie, if necessary, press and release the Video
button and the Audio button until both the Video and Audio LEDs light
(figure 3-5).
VIDEO AUDIO
I/O
Press the Video button to
toggle on and off.
The LED lights when
selected.
Press the Audio button
to toggle on and off.
The LED lights when
selected.
Figure 3-5 — Select video and audio
3 . Press and release the Input 5 button (figure 3-6).
3 4 5 6
INPUTS
7
Press and release
the Input 5 button.
The LED lights.
Figure 3-6 — Select an input
