5-15 MTPX Twisted Pair Matrix Switchers • Matrix Software
PRELIMINAR
Y
Button-Label Generator Program
The Button Label Generator software creates labels that you can place in the
translucent covers above and below the input and output pushbuttons. You can
create labels with names, alphanumeric characters, or even color bitmaps for easy
and intuitive input and output selection. See appendix A, “Reference Information”,
for the procedure for removing and replacing the translucent covers.
The Extron Button Label Generator is available on the Extron Web site,
www.extron.com , under the Download Center tab. Click the Software link
(figure 5-14), and download and install the program onto your computer.

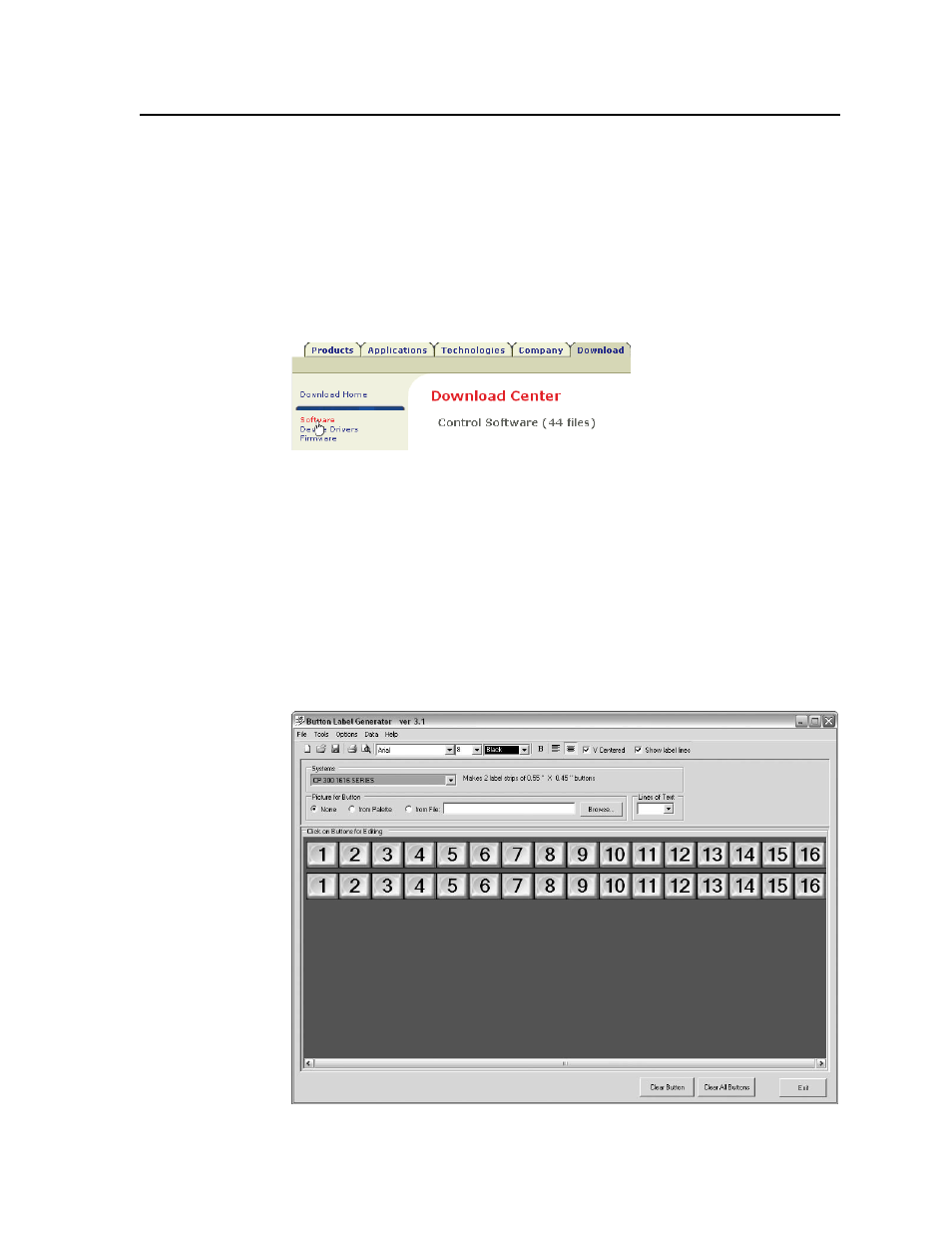

Figure 5-14 — Location of software on the web site
N The Button Label Generator software is also included on the Extron Software
Products Disk that accompanied the switcher.
By default, the Windows installation creates a C:\Program Files\Extron\
ButtonLabelGenerator directory and places the Button Label Generator icon into a
group or folder named “Extron Electronics”.
Using the Button-Label Generator software
1 . To run the Button-Label Generator program, click Start > Programs > Extron
Electronics
> Button Label Generator > Button Label Generator. The
Button-Label Generator window appears (figure 5-15).
Figure 5-15 — Extron’s Button-Label Generator window
