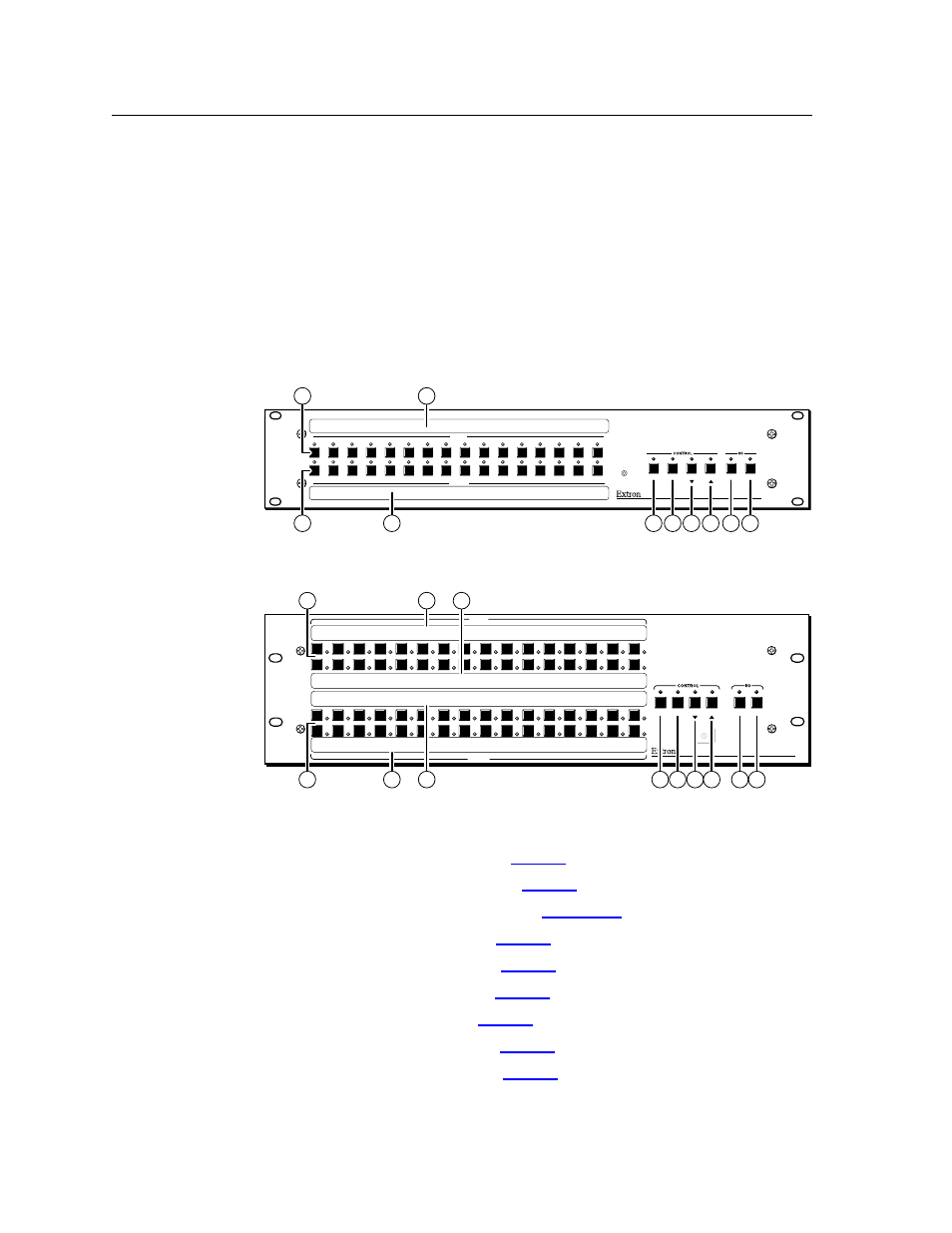

Front Panel Controls and Indicators
The front panel controls (figure 3-1 and figure 3-2) are grouped into two sets. The
input and output buttons are grouped on the left side of the control panel. The
control buttons and video/audio (I/O) selection buttons are grouped on the right
side of the panel.
N
While the number of inputs and outputs varies, depending on the size of the
matrix, there are only two front panel arrangements: 16 input buttons by 16
output buttons (figure 3-1) and 32 by 32 (figure 3-2).
N
On smaller matrix switchers, the larger-numbered buttons are not used for
input and output selection, although they are used to select and indicate preset
numbers, indicate the input audio level, and indicate the output audio volume.
INPUTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
OUTPUTS
AUDIO
VIDEO
ENTER
PRESET
MTPX SERIES
MTP MATRIX SWITCHER
CONFIG
VIEW
ESC
6
7
8
9
3
1
3
2
4
5
Figure 3-1 — Front panel, MTPX 1616
INPUTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
OUTPUTS
AUDIO
VIDEO
ENTER PRESET VIEW
ESC
MTPX SERIES
MTP MATRIX SWITCHER
CONFIG
6 7
8 9
3
1
3
3
3
2
4 5
Figure 3-2 — Front panel, MTPX 3232
a
Input buttons and LEDs — See page 3-3.
b
Output buttons and LEDs — See page 3-4.
c
Input and output label windows — See page 3-4.
d
Enter button and LED — See page 3-5.
e
Preset button and LED — See page 3-6.
f
View button and LED — See page 3-6.
g
Esc button and LED— See page 3-6.
h
Video button and LED — See page 3-7.
i
Audio button and LED — See page 3-8.
