Matrix Software, cont’d
MTPX Twisted Pair Matrix Switchers • Matrix Software 5-12
PRELIMINAR
Y
Hardware status — Provides an overall view of the status of the matrix switcher,
including the power supply voltages, the temperature status, the Remote
RS-232/RS-422 port configuration, and the installed and updated firmware
status (figure 5-11).
Green — Proper operation.
Red — Component has failed.
White —
Not displayed for the MTPX.

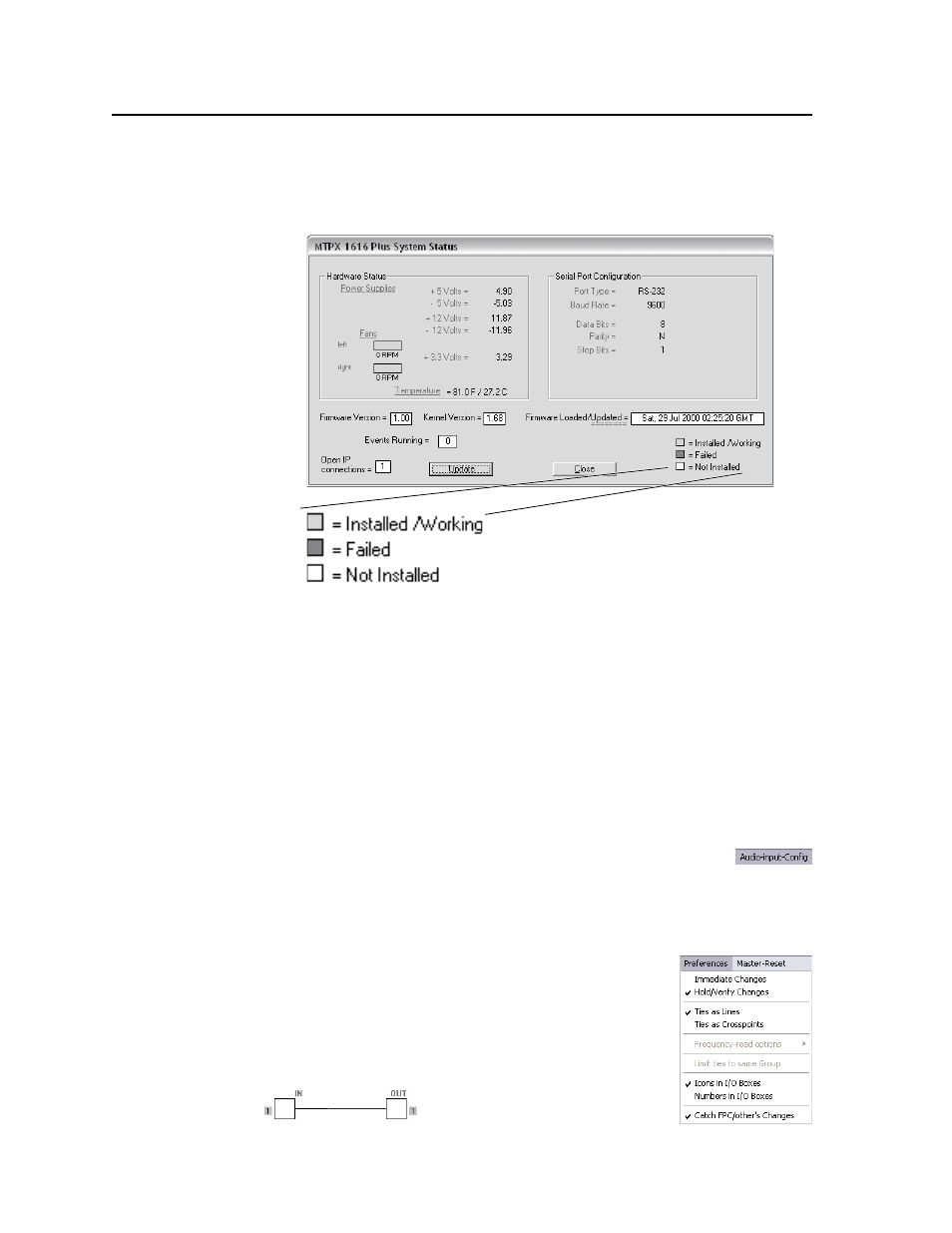

Figure 5-11 — Status window
Name presets — Allows you to assign a name to each of the 32 memory presets.
N Preset names are limited to 12 upper- and lower-case alphanumeric characters,
space, and the _ and / characters.
N The following characters are invalid in preset names:
+ ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.
Show RS-232 strings — Displays the ASCII commands that are used by the
current configuration. You can refer to these for RS-232 programming.
Initialize — Initializes and clears any or all of the following: ties, presets, audio
configuration, preset names, icon names, and icons.
Audio-input Configuration selection
Displays the audio gain level setting for a single input or for all inputs
and allows you to change it. The level is expressed as the magnitude (number
of decibels) and polarity (positive, gain or negative, attenuation) of the audio
adjustment.
Preferences menu
Immediate changes — Causes configuration changes to take
effect immediately.
Hold/verify changes — Delays configuration changes until
the Changes – Take button is pressed.
Ties as lines — Displays ties as lines (figure 5-12).
Figure 5-12 — Ties shown as lines
