3-13 MTPX Twisted Pair Matrix Switchers • Operation
PRELIMINAR
Y
Example 2: Adding a tie to a set of video and audio ties
In the following example, a new video tie is added to the current configuration.
The steps show the front panel indications that result from your action.
N This example assumes that you have performed example 1.

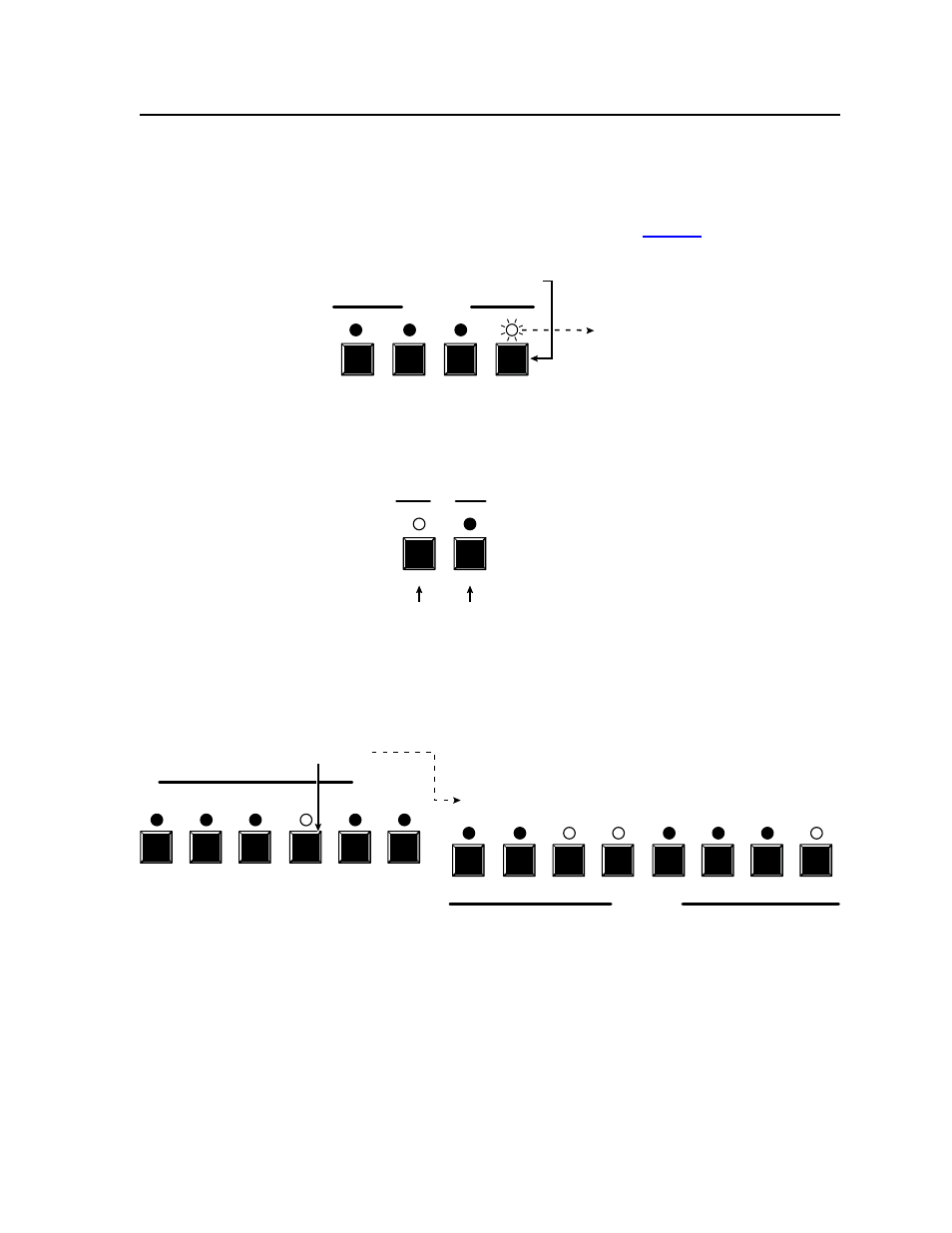

1 . Press and release the Esc button (figure 3-10).
ENTER PRESET VIEW ESC
CONTROL
Press the Esc button to clear all selections.
The LED
blinks once.
Figure 3-10 — Clear all selections
2 . To select video only for the tie, if necessary, press and release the Video button
and/or Audio button (figure 3-11).
VIDEO AUDIO
I/O
Press the Video button to
toggle on and off.
The LED lights when
selected.
Press the Audio button
to toggle on and off.
The LED is unlit when
deselected.
Figure 3-11 — Select video only
3 . Press and release the Input 5 button (figure 3-12).
2 3 4 5 6
INPUTS
7
1 2 3 4 5
OUTPUTS
6 7 8
The Output 3, Output 4, and Output 8 LEDs light
to indicate the video ties created in example 1.
Press and release the Input 5 button.
The LED lights.
Figure 3-12 — Select an input
