Rs-232/rs-422 connection, Reset button, Power connection – Extron Electronics MTPX Series User Guide User Manual

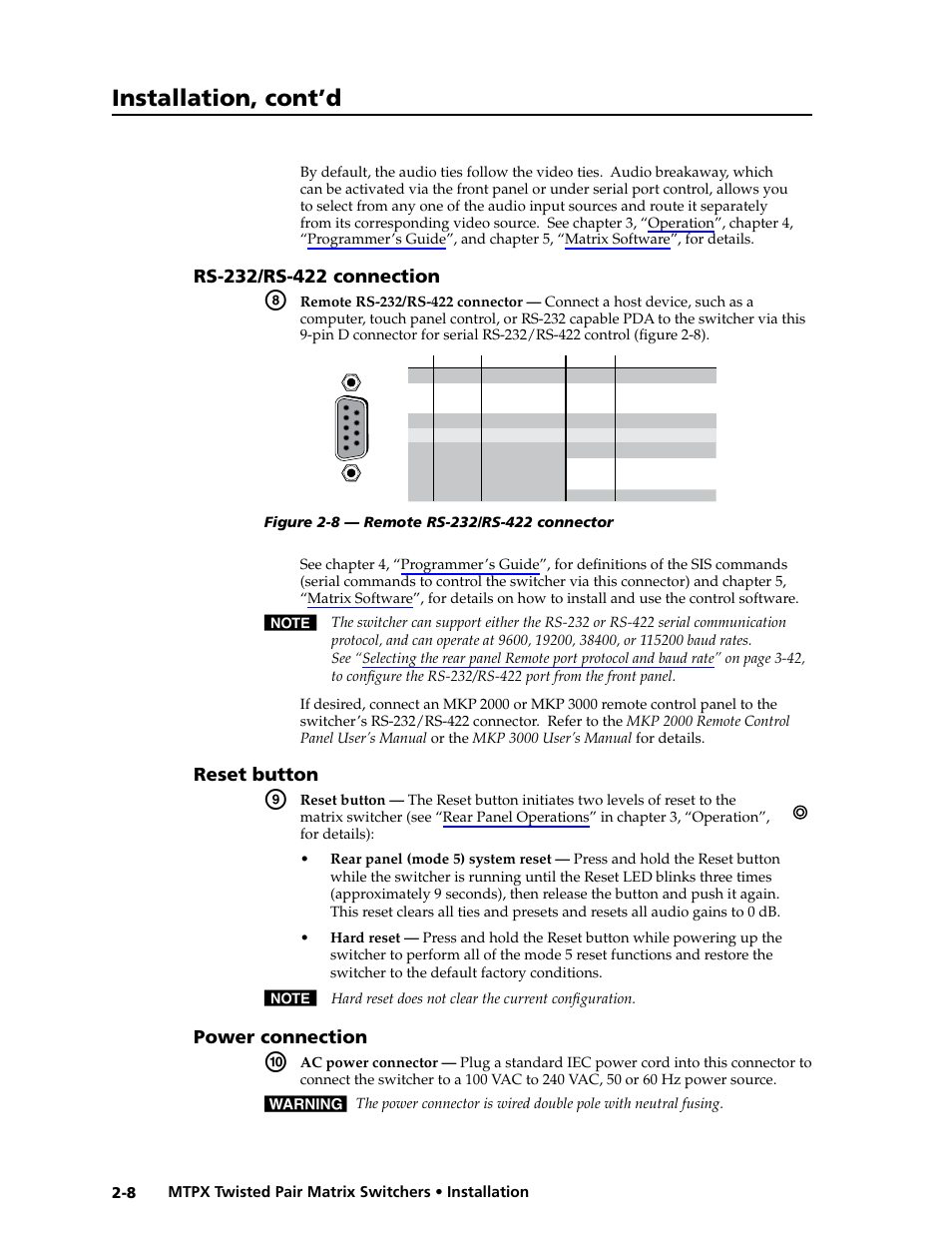

Page 24: Preliminar y, Installation, cont’d
