Changing the Fuses
The JMP 9600 is equipped with field replaceable fuses to protect against overcurrent
damage. If one of the two power circuits fails, replace the fuses as follows:
WARNING : Physically disconnect both power cables from the player before removing
the fuse module.
CAUTION: This unit employs double pole/neutral fusing.
1. Unplug both power cords.
2. With a Tweeker or other small screwdriver, gently pry the cover away from the AC
Power Input switch for the power circuit that has failed (see
a on figure 81).
NOTE: The cover does not separate from the power block but hangs in place.
INPUT
: 100-240V
AC, 0.4-1A, 50/60HZ
USE ONL
Y: F2 AH 240V FUSES.
INPUT
: 100-240V
AC, 0.4-1A, 50/60H
Z
USE ONL
Y: F2 AH 240V FUSES.
INPUT
: 100-240V
AC, 0.4-1A, 50/60HZ
USE ONL
Y: F2 AH 240V FUSES.
INPUT
: 100-240V
AC, 0.4-1A, 50/60H
Z
USE ONL
Y: F2 AH 240V FUSES.
1 2a
2b
3

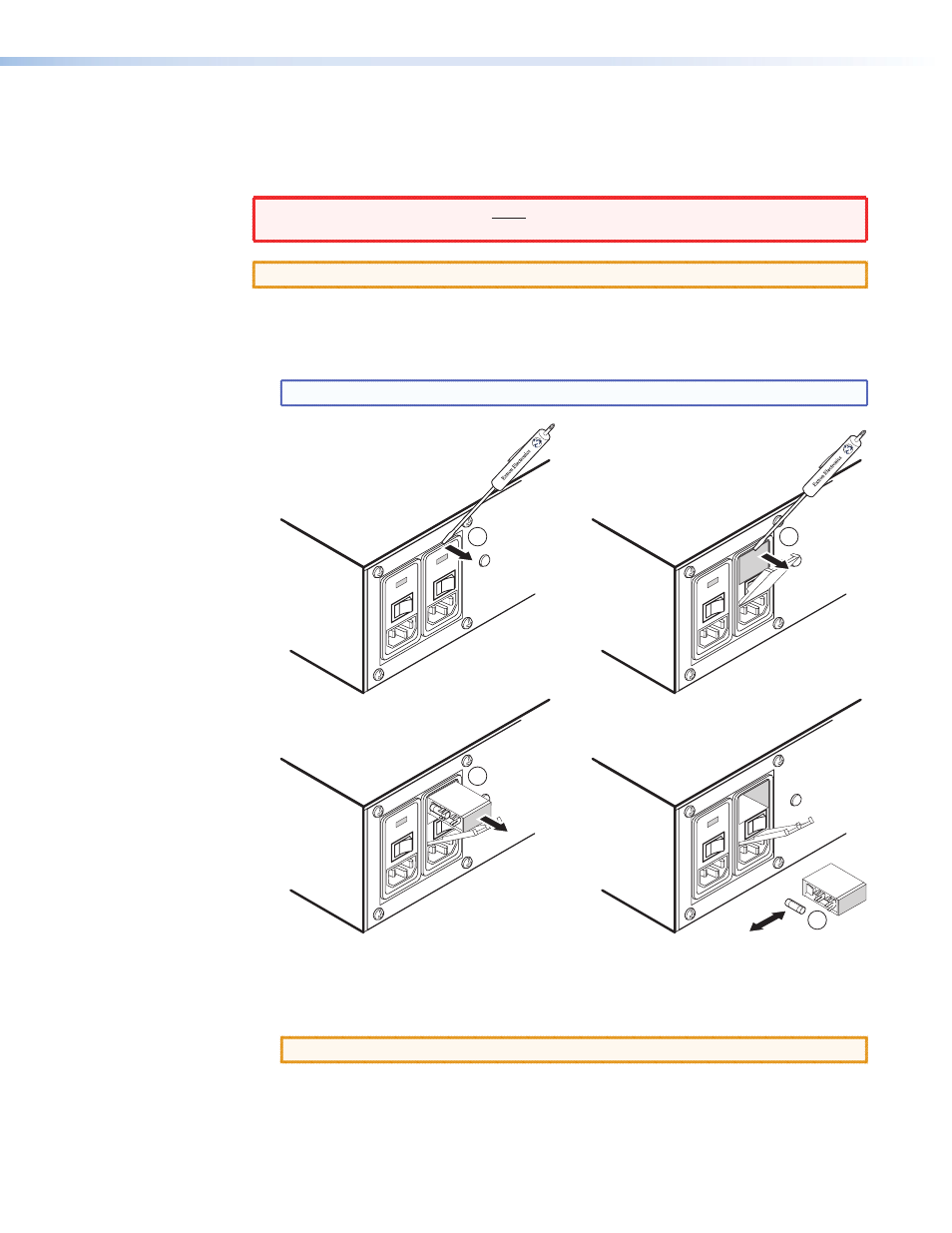

Figure 81. Replacing Fuses
3. Gently pry the fuse module from the power block ( Ç ) and pull it from the enclosure ( É ).
4. Remove and replace both fuses on the fuse module.
CAUTION: Replace the fuses with F2 AH 240V fuses only.
5. Slide the fuse module into the power block and snap it into position ( c ).
6. Snap the cover back into place on the power block.
7. Restore power.
