ISS 408 Integrated Seamless Switcher • Operation 28
3. Rotate the Adjust knob or the Adjust knob to vary the settings within the following
adjustment ranges:
NOTE: The Adjust knobs have no mechanical limits to their rotation.
• Color/Tint: Color adjusts within a range of 0 to 127.
Tint adjusts within a range of 0 to 255.
• Brightness/Contrast: The range for both adjustments is 0 to 63.
• Size: Observe the display and turn the Adjust knob to increase or decrease the
horizontal size of the image. Turn the Adjust knob to increase or decrease the
vertical size of the image. The adjustment range depends on the selected output
resolution.
• Center: Observe the display and turn the Adjust knob to center the image
horizontally or the Adjust knob to center the image vertically. The adjustment range
depends on the selected output resolution.
• Horizontal and vertical filter (RGB or component video input):
Horizontal (Horz) adjusts within a range of 0 to 3.
Vertical (Vert) adjusts within a range of 0 to 7.
•
Filter (S-video and composite video input):
Either knob adjusts within a range of 0 to 7.
4. Repeat steps 2 and 3 for each image adjustment to be made for that input.
Front Panel Security Lockout (Executive Mode)
The front panel security lockout limits the operation of the Integration Seamless Switcher
from the front panel. When the switcher’s front panel is locked, all of the front panel
functions are disabled except for input selection, black/mute, cut, and dissolve.
To toggle the front panel lock on and off, press and
hold the Color/Tint and Center buttons
for approximately 2 seconds (see figure 28). The LCD displays Executive Mode Enabled
or Executive Mode Disabled to indicate the mode. Release the buttons. The LCD also
displays Executive Mode Enabled. if you push a locked out button when the switcher’s
front panel is locked.
10 sec.
timeout
Press and hold both buttons
simultaneously for 2 seconds
OR
Default
Cycle
COLOR/
TINT
CENTER
ISS 408
Executive Mode
Enabled
ISS 408
Executive Mode
Disabled

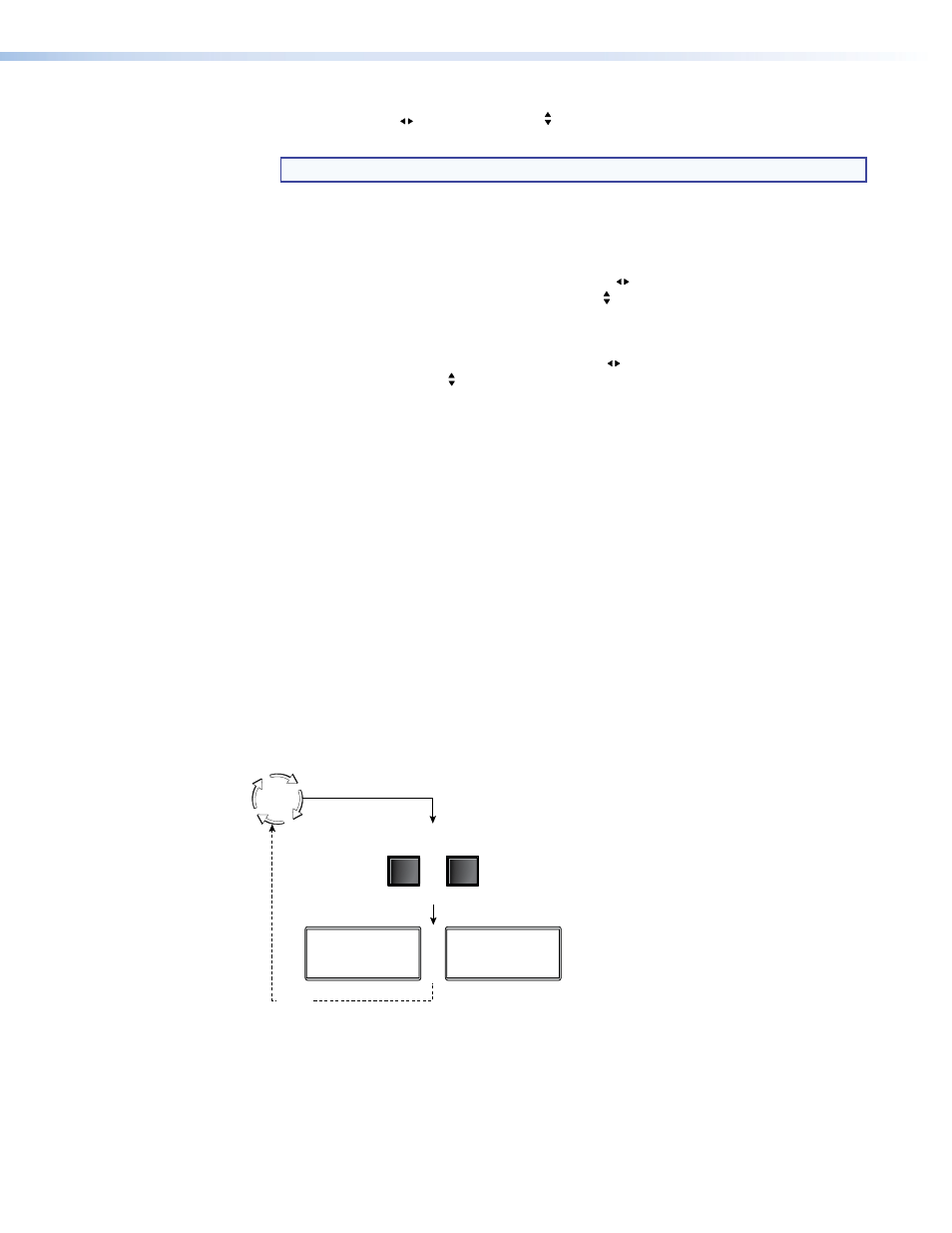

Figure 28. Front Panel Security Lockout Flowchart
