ISS 408 Integrated Seamless Switcher • Operation
24
CUT
DISSOLVE
CUT
DISSOLVE
Scaler
A
Press Cut or
Dissolve
RS-232 Report
Scaler
B
Scaler
A
Scaler
B
Stay Mode
ISS
Scaler A Changes Inputs
Neither Scaler Changes Inputs
Swap Mode
Input 1
(program output)
Input 2
(preview output)
Input 1
(program output)
Input 2
(preview output)
Program Monitor
(input 2)
Preview Monitor
(input 2)
Program Monitor
(input 2)
Preview Monitor
(input 1)
Press Cut or
Dissolve
NO RS-232 Report
ISS

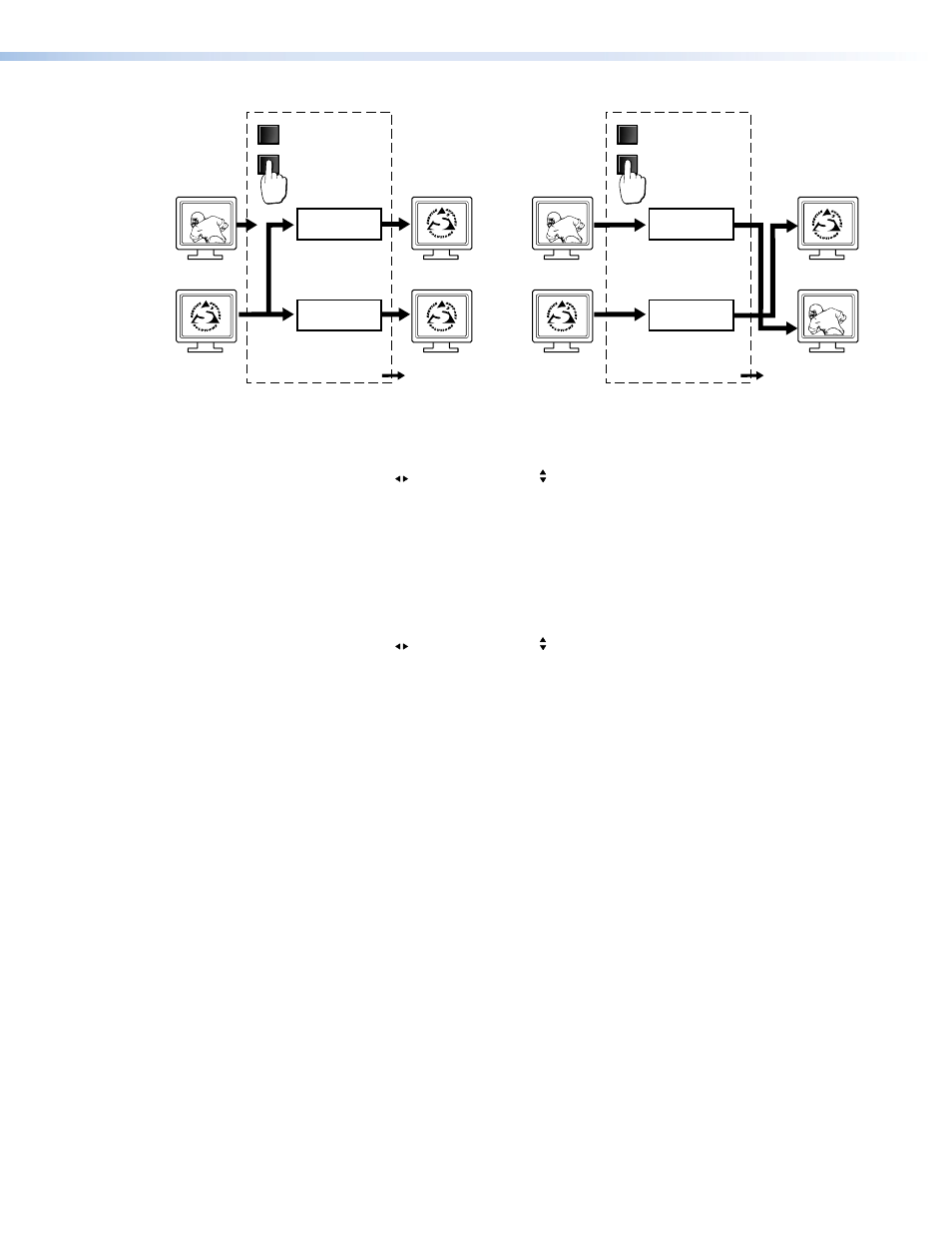

Figure 24.
Stay Mode and Swap Mode
Use either the Adjust knob or the Adjust knob to select Stay or Swap.
PAL Film Mode submenu
The PAL Film Mode submenu lets you turn PAL film mode (2:2 pulldown detection) on and
off for the selected input. The PAL film mode should be used for a video source that is PAL
video that originated from film. PAL film mode applies video processing algorithms that
optimize the conversion of video that was made with the 2:2 pulldown (PAL video from film)
process.
Use either the Adjust knob or the Adjust knob to select On or Off. Select other inputs as
necessary to configure.
Reset submenu
The Reset submenu resets the ISS 408 to the default values. The front panel reset performs
the same functions as the
Reset the switcher by pressing and
holding the Black/Mute button while this submenu is
active. The LCD displays
Unit Reset to Factory Defaults when the reset is complete.
Release the Black/Mute button.
