ISS 408 Integrated Seamless Switcher • Operation 11
Operation
This section describes:
• Front Panel Controls and Indicators
• Front Panel Operations
• Optimizing the Video
• Optimizing the Audio
• Troubleshooting
Front Panel Controls and Indicators
All of the switcher controls and indicators are on the front panel (see figure 11). A label
window above the input buttons can be labeled with text and/or graphics. The 20 x 4 LCD
display indicates the switcher status, menu selections, the data rate, and the status of
additional system features.
BLACK 1 2 3 4 5 6 7 8 VIDEO CUT
DISSOLVE
1 2 3 4 5 6 7 8 AUDIO MUTE
COLOR/
TINT
BRT/
CONT
SIZE CENTER FILTER
ADJUST
MENU NEXT
INPUTS
ISS 408
INTEGRATION SEAMLESS SWITCHER
3 1
7 5
2
6
4 8 9

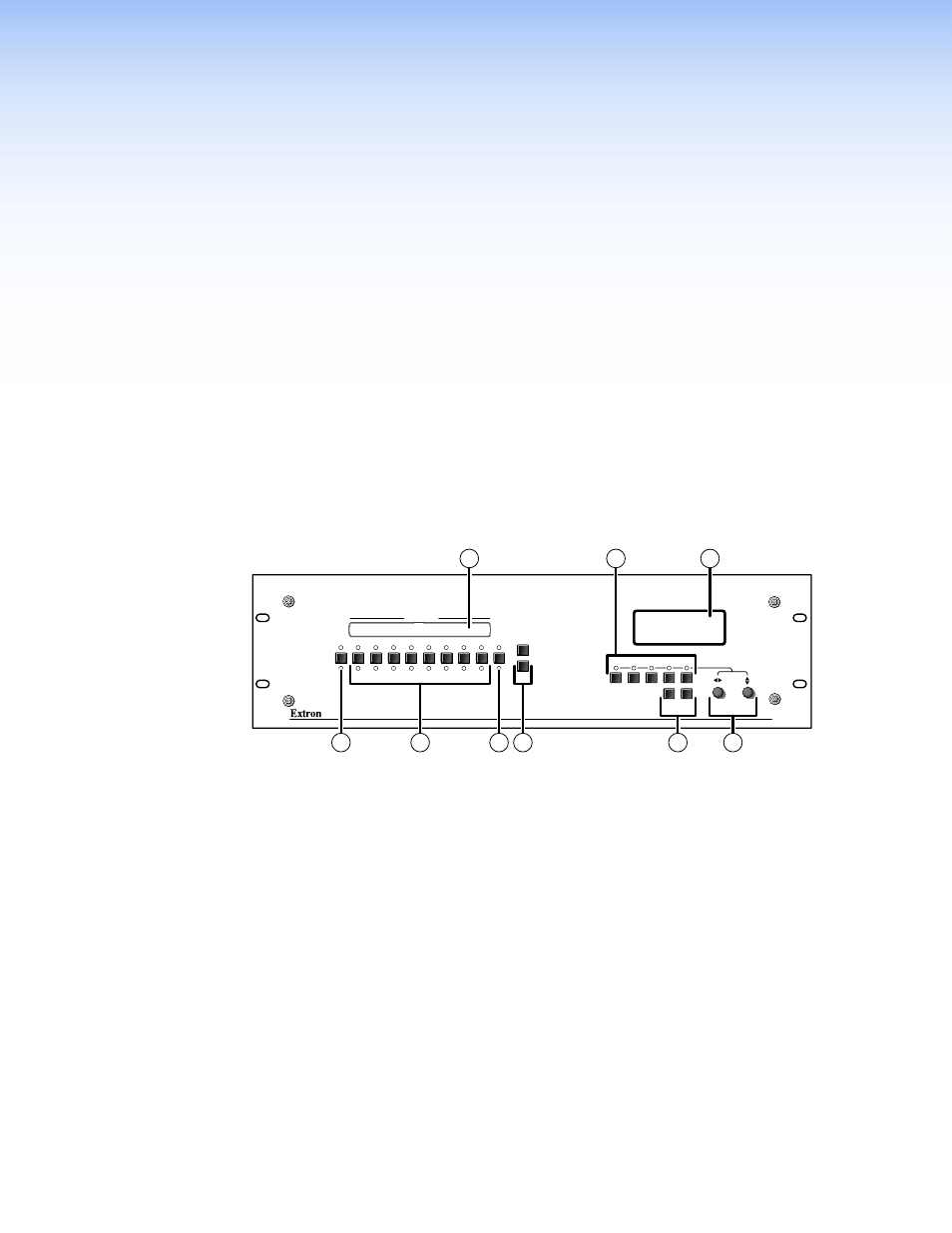

Figure 11. Integration Seamless Switcher Front Panel
Black/Mute, Input Selection, and Cut/Dissolve Controls
a
Black/Mute button and LEDs — The Black/Mute button switches the program
output to a black screen and/or muted audio. The black screen and/or mute audio
is deselected when a cut or dissolve is selected to switch the preview output to the
program output.
b
Input selection buttons — The Input 1 through 8 buttons select the associated input
to scale and display on the preview monitor.
Input selection LEDs — The green Input 1 through 8 LEDs above the input buttons
indicate the video selection. The red Input 1 through 8 LEDs below the input buttons
indicate the audio selection.
Flashing LEDs (green for video and red for audio) indicate the input selected for the
preview output. Solid LEDs indicate the input selected for the program output. If there
are no flashing LEDs, the same input is selected for the preview and program outputs.
