User Presets menu

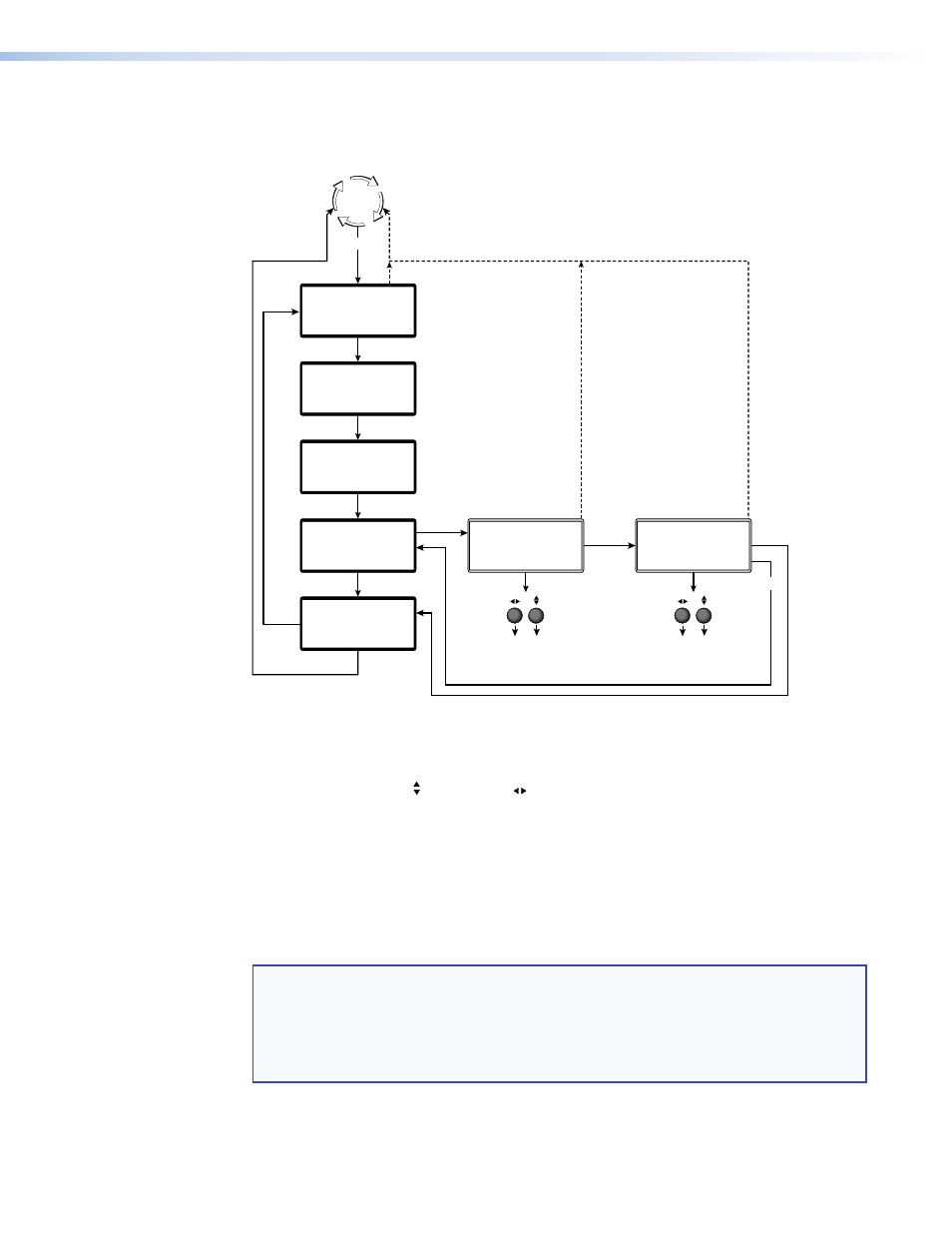

Figure 25 is a flowchart that shows an overview of the User Presets menu, the Save Preview
Preset and Erase Preview Preset submenus, and the available settings.
Use either Adjust knob
to select a preset or no
preset (N/A). Press Next. Use either Adjust knob
to select a preset or no
preset (N/A). Press Next.
Default
Cycle
Menu
Menu
Next
Next
10 sec.
10 sec.
Video & Audio
Configuration
Menu
Output
Configuration
Menu
Advanced
Configuration
Menu
User Presets
Menu
Next
Exit Menu
Press Next to Exit
Menu
Save Preview Preset
1 2 3
Erase Preview Preset
1 2 3
Next
10 sec.
Figure 25. User Presets Menu Flowchart
Save Preview Preset submenu
Rotate either the Adjust or the Adjust knob while in the Save Preview Preset submenu
to highlight (< >) one of three memory presets for the selected input or to highlight N/A for
no preset. Press the Next button to save the current settings to the selected preset. Select
N/A and press the Next button to exit without saving the settings.
User presets are are saved values of the current color, tint, contrast, brightness, detail,
sizing, and centering settings. Presets are saved in nonvolatile memory; when the ISS is
powered down and later powered back up, the settings are available for selection. Saving
the settings to a preset number overwrites the settings previously written to that preset
number.
NOTE: The color, tint, contrast, brightness, detail, sizing, and centering settings are
tailored for the selected output rate. If you change the output rate and then recall a
preset for the earlier rate, the adjustments recalled in the preset have no effect on the
video output. However, if you then change back to the earlier output rate, the effects
of the adjustments appear on the screen if they were not overwritten for the old
output rate.
User presets are recalled using the Input buttons. See Recalling a user preset , on
page 16, for instructions on recalling a user preset.
