Introduction, cont’d
Matrix 12800 Switchers • Introduction 1-4
PRELIMINAR
Y
Features
Input and output connectors — All connectors are clearly labeled as either input or
output for easy installation. With the Extron virtualization/control software,
a visual map can be printed for easy representation of the virtual I/Os. This
feature reduces the time required for setup and programming.
Bandwidth — Bandwidth is a minimum of 375 MHz (-3 dB), fully loaded. This
high bandwidth allows Extron switchers to switch everything from NTSC
video to high-resolution computer video.
Digital Sync Validation Processing (DSVP ™ ) — In critical environments or
unmanned, remote locations, it is vital to know that sources are active and
switching. The exclusive Extron DSVP confirms that input sources are active
by scanning all sync inputs for active signals. DSVP provides instantaneous
frequency feedback for composite sync or separate horizontal and vertical
sync signals via the RS-232/RS-422 port of the switcher. The frequency
information can be displayed on any control system or in a Windows ® -based
control program on a local-area network (LAN) or internet (IP) connection
(figure 1-2).
RS-232/
422
OR
Input Horz. Vert.
01 31.50 60.00
02 31.50 60.00
03 31.50 60.00
04 48.01 67.50
05 48.01 67.50
06 48.01 67.50
07 48.01 67.50
08 61.55 72.00
09 61.55 72.00
10 61.55 72.00
11 61.55 72.00
12 61.55 72.00
• • •
• • •
• • •
3rd party control system
Windows-based control program on
LAN or IP connection
MATRIX INPUT STATUS
Input # 01
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 02
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 03
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 04
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 05
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 06
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 07
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 08
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 09
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 10
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 11
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 12
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Input # 01
Signal: PRESENT
Sync Type: H&V
Vertical Freq.: 60 Hz
Horz Freq.: 31.5 kHz
Ethernet

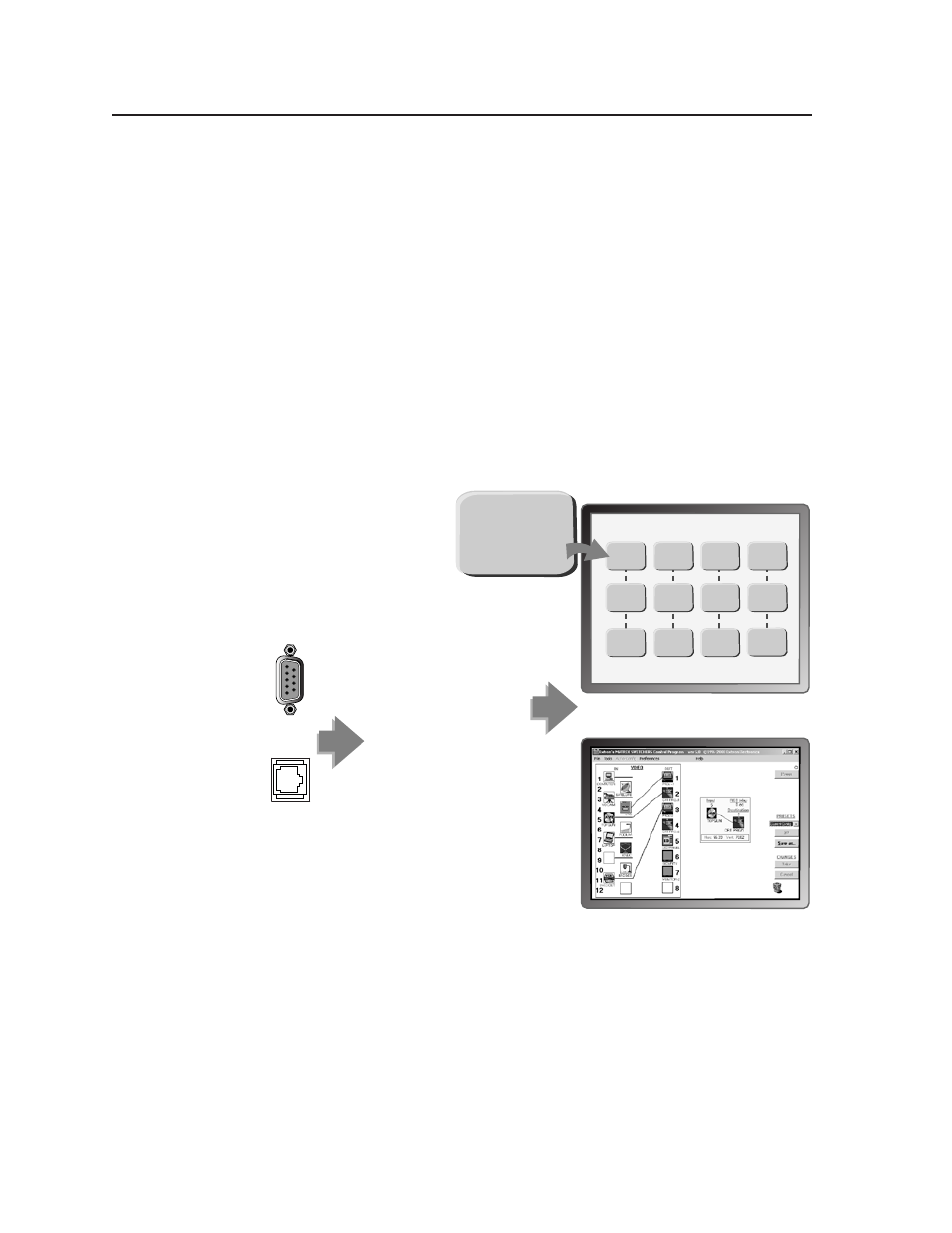

Figure 1-2 — DSVP data display
Rooming — Each Matrix 12800 system can be programmed to group multiple
outputs to specific “rooms”, allowing them to have their own presets. The
system can have up to 32 rooms, each of which can have up to 10 presets.
Triple-Action Switching ™ (RGB delay) — RGB delay blanks the screen when the
matrix switcher switches to a new RGB video source. The new sync signals
precede the RGB signals, so there is no noise-filled scramble shown during
the transition. The time delay between the RGB and sync signals is user
adjustable up to five seconds via SIS and Windows program control.
