Upgrades and Maintenance, cont’d
Matrix 12800 Switchers • Upgrades and Maintenance 6-6
PRELIMINAR
Y
Removing and Installing the Power Supply Module
Removing the power supply module
The two or four power supply modules (primary power supplies A and B and
optional redundant power supplies A and B) are identical and hot-swappable. Each
power supply module has two LEDs, visible when the fan assembly door is open,
that indicate the status of the voltages that power supply outputs. If both LEDs are
lit, the power supply is operating normally. If either LED is unlit, the power supply
is out of tolerance and should be reseated, swapped, or replaced at the earliest
opportunity.
N If this BME does not have redundant power supplies, the switcher may or may
not shut down for an out of tolerance voltage.
N The power supply modules are hot-swappable. If this BME has redundant power
supplies A and B, each power supply can be removed without powering down the
switcher. If the BME does not have power supply redundancy, removing either
primary power supply shuts down the matrix.
Remove a power supply module as follows:
1 . Open the front door.
2 . Turn the left and right knurled knobs on the fan assembly door ¼-turn
counterclockwise. Raise the door and rest it on the roof of the power
distribution enclosure.
3 . Grasp the handle on the power supply module and push down on the thumb
detent (figure 6-5). Pull the power supply module straight back until the
module clears the alignment guides.
PRIM
ARY
A
RED
UND
ANT
A
ON = G OOD
OFF
= FA
ILED
2 LE D's:
ON = G OOD
OFF = FA
ILED
2 LE D's:
PRIM
ARY
B
RED
UND
ANT
B
ON = G OOD
OFF
= FA
ILED
2 LE D's:
ON = G OOD
OFF = FA
ILED
2 LE D's:
CON
T
PO WE
R S
UPP
LY B
PO
WE
R S
UPP
LY A
2 LEDs
Thumb
Detent
Align power supply
with plastic guides.
Primary A
Power Supply
Open fan door

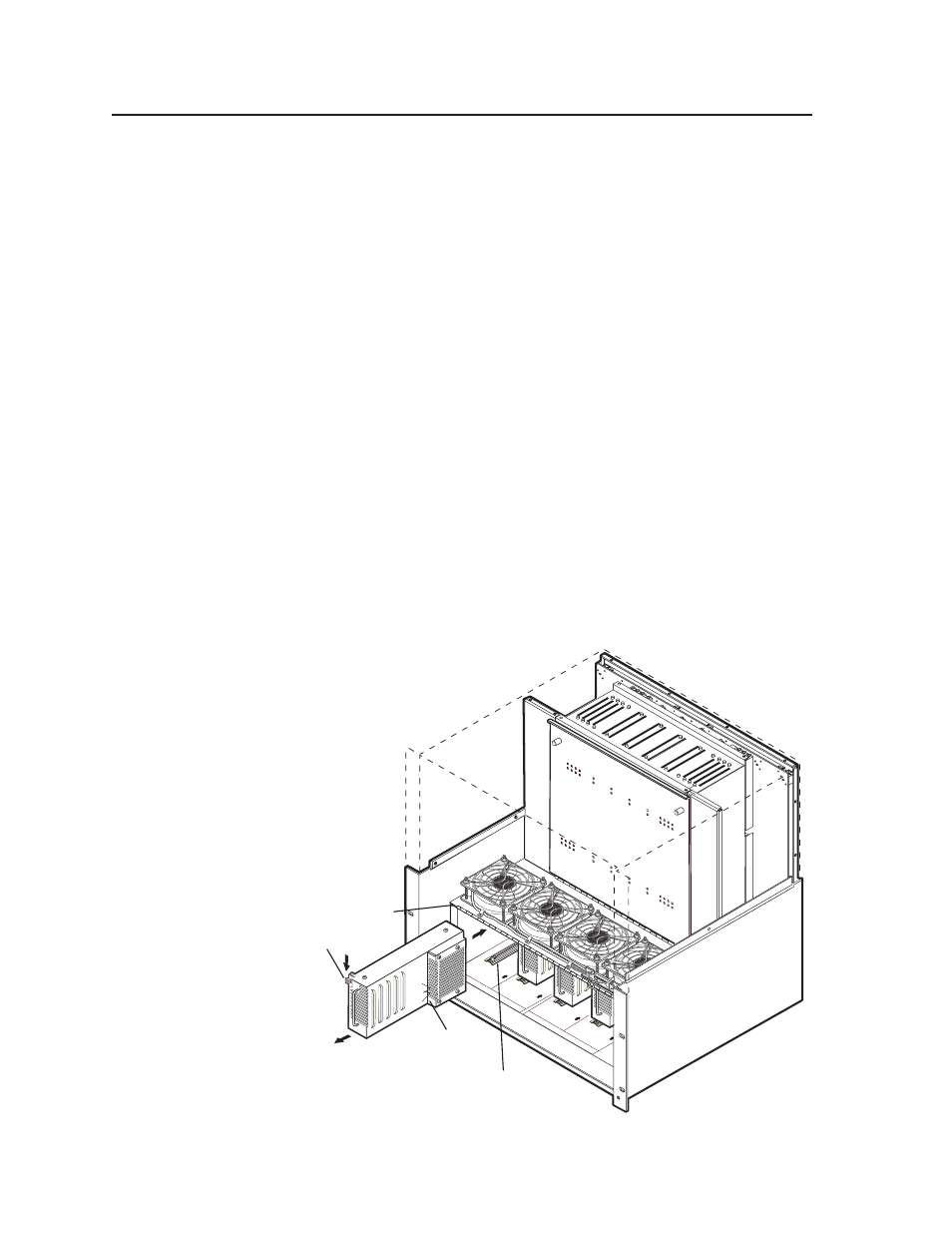

Figure 6-5 — Power supply replacement
