52 EN 5.10 SuSix Manual 1406 FW: 841013-005/843003-001
Turbidity and Suspended Solids Transmitter
Graph Display

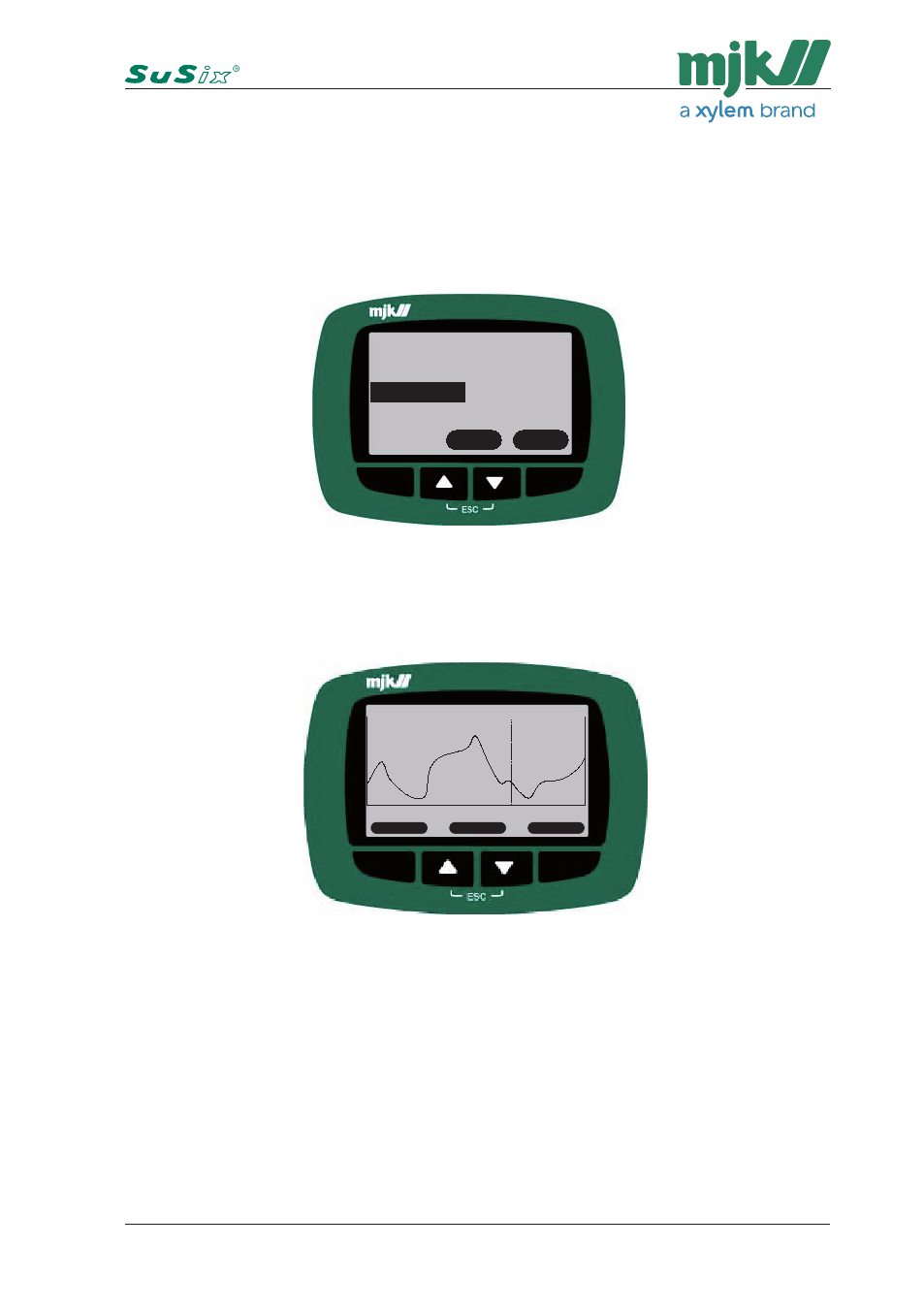

The content of the Data Logger can displayed on the Display Unit by
pressing the up/down keys, highlighting "Measurements" and selecting
"Graph"
10000.00000MG/L
2007-08-21 15:25:42 1.31200MG/L
<< >> < >
SuSix1
Measurement 2312 mg/L
Select Graph
The Display Unit then shows the Graph screen. To return to the Main
Menu display screen, select "esc" by pressing the up/down keys simulta-
neously.
10000.00000MG/L
2007-08-21 15:25:42 1.31200MG/L
<< >> < >
SuSix1
Measurement 2312 mg/L
Select Graph
The Y axis is automatically scaled according to the maximum value of the
mA output.
Double-arrow keys jump forward and backward one screen frame at a
time. Single-arrow keys move the cursor forward and backward on the
screen.
The actual values at the cursor position is shown at the bottom of the
screen.
