36 EN 5.10 SuSix Manual 1406 FW: 841013-005/843003-001
Turbidity and Suspended Solids Transmitter

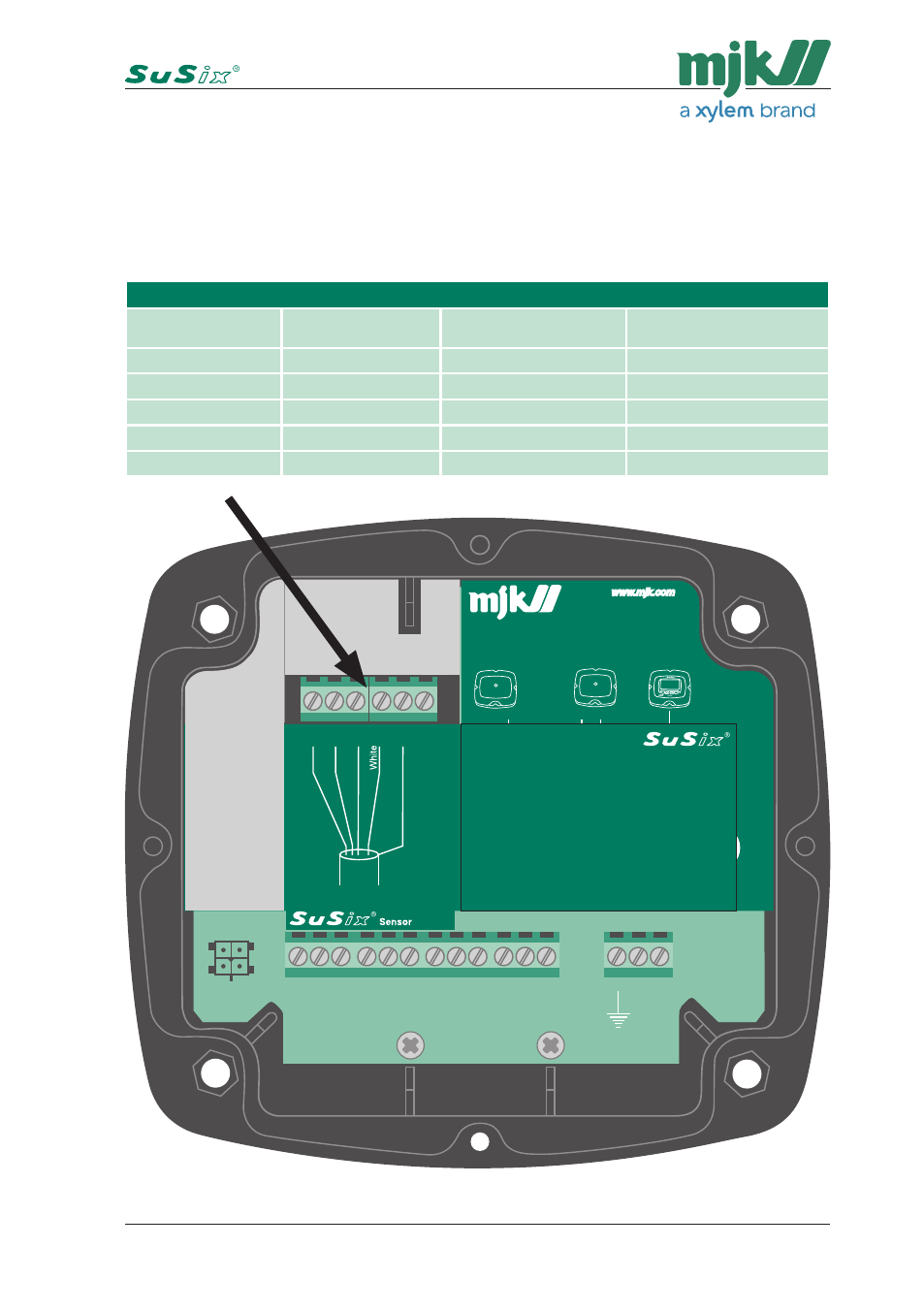

Sensor and Mounting Kit / Connection Board Terminals
Connect the sensor wires to the SuSix converter (or to Mounting Kit
207030 PCB 510252 or to Connection Board 207030 PCB 510252-004)
with the wires coming from the sensor as shown below (see arrow).
Terminals
Wires from sensor Converter terminals
Mounting Kit 207030
PCB 510252
Connection Board 207030
PCB 510252-004
Pink +DC E1 2
Grey DC GND E2 3
Brown A L1 4
White B L2 5
Shield Shield GND GND 1
Mains
supply
-mA- -D02- -D01- -DI- -Display-
+ + A B C2 N02 C NO N01 PE N L - - C1
Line
2 wire
shielded cable.
4 wire
shielded cable.
Fuse 24V A
C:
500mA
T
Fuse 115V A
C:
125mA
T
Fuse 230V A
C:
63mA
T
Display unit Converter #4 Converter #1
Max. four MJK converters with Modbus
can be connected to one display unit:
521268
+DC GND A B
Pink Gr
ey
Br
own
Shield
521269
www.mjk.com
DK: +45 45 56 06 56
NO: +47 69 20 60 70
SE: +46 53 31 77 50
NL: +31 251 672171
USA: +1 847 482 8655
AUS: +61 3 9758 8533
SuSix ® converter terminals
