101

FW: 841013-005/843003-001

Turbidity and Suspended Solids Transmitter

EN 5.10 SuSix Manual 1406

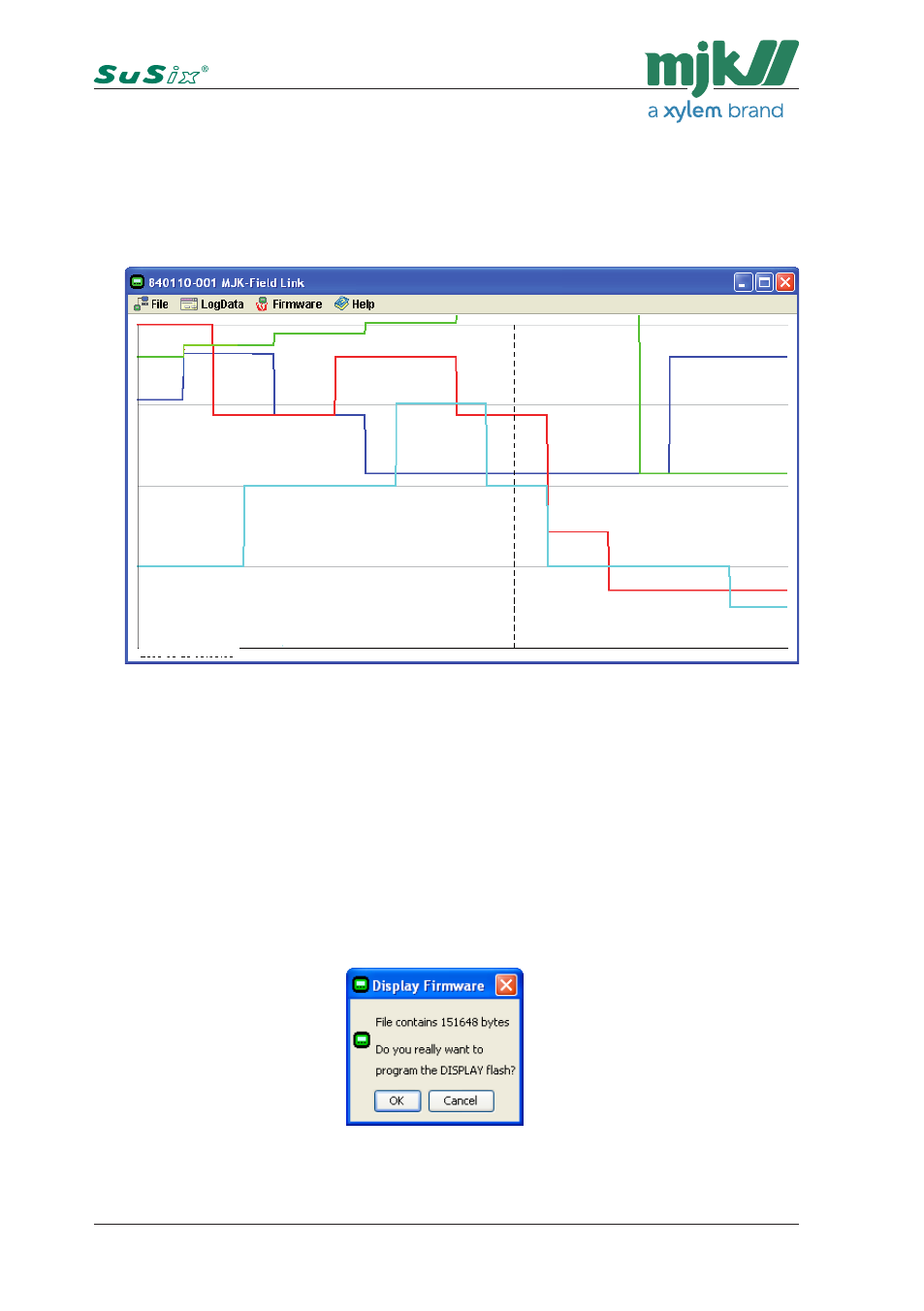

B. Save Log Data

1. Select "LogData" in the menu bar and click "Save Log to File".
2. Assign a file name, find the destination you want to save the file to, and

click "Save". Consequently the file is saved, and the contents is displayed.

C. Upgrade Display Firmware

Important: Always upgrade the display firmware before you upgrade
the converter software.
1. Select "Firmware" in the menu bar and click "Display".
2. Locate the "MJK Field FW" directory on the CD-ROM, select the

841xxx-xxx.hex file (or similar 841*.hex) and click "Open".

3. Click OK when the "Display Firmware" dialogue box appears and

prompts for programming the display Flash memory.

The display unit firmware is then transferred, and the display unit is
consequently programmed. Expect this process to take a few minutes.
