Xylem SuSix Turbidity and Suspended Solids Transmitter - Manual (Page 35)

35 FW: 841013-005/843003-001
Turbidity and Suspended Solids Transmitter
EN 5.10 SuSix Manual 1406
Converter Terminals
Mains
supply
-mA- -D02- -D01- -DI- -Display-
+ + A B C2 N02 C NO N01 PE N L - -
+DC GND A B
Pink Gr
ey
Br
own
Shield
521269
C1
Line
2 wire
shielded cable.
4 wire
shielded cable.
Fuse 24V A
C:
500mA
T
Fuse 115V A
C:
125mA
T
Fuse 230V A
C:
63mA
T
displa
y unit
displa
y unit
Display unit Converter #4 Converter #1
Max. four MJK converters with Modbus
can be connected to one display unit:
521268

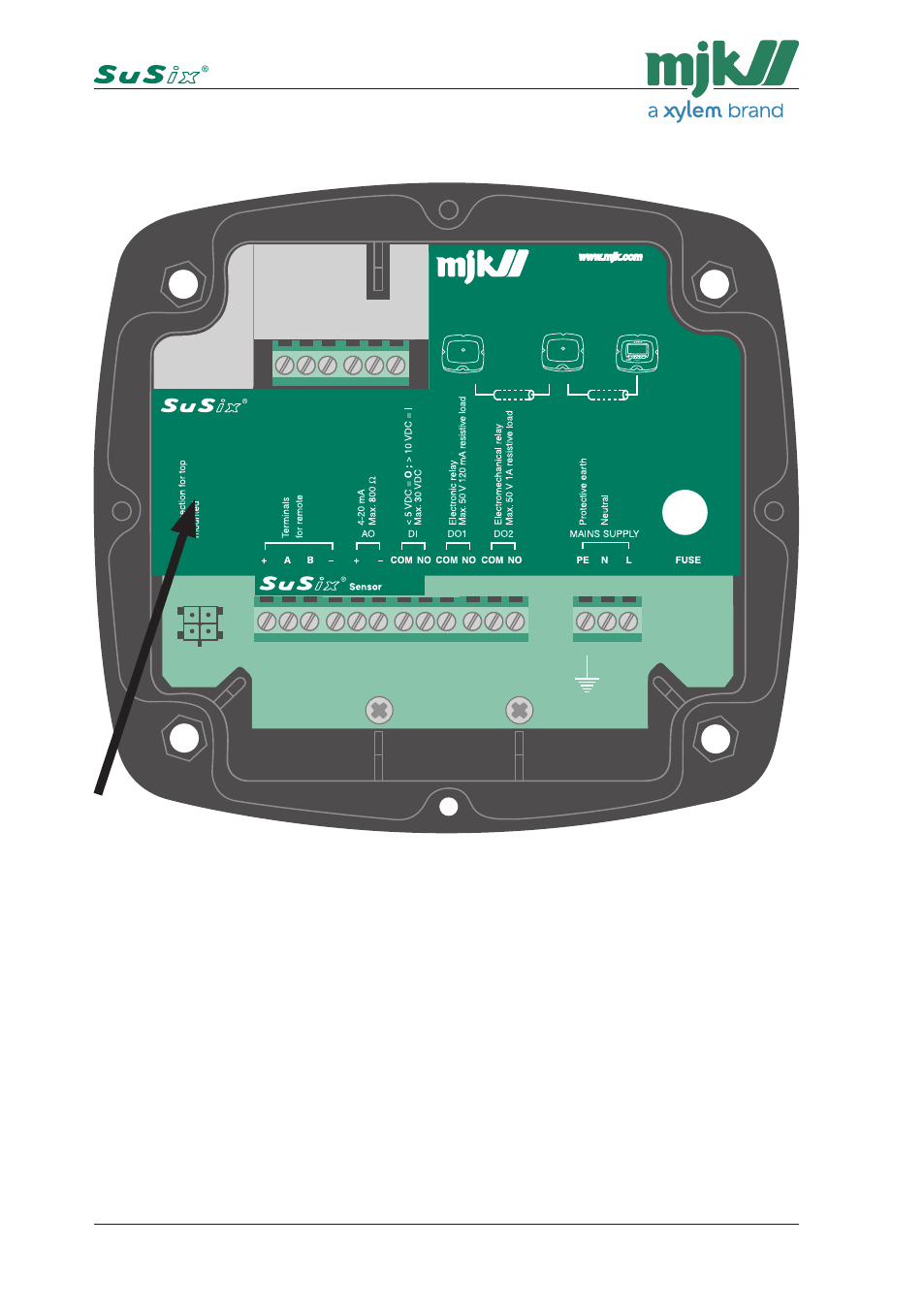

SuSix ® converter terminals
Flip the green label with "SuSix ® " printed on it (see arrow) to the right to
gain access to the sensor connection terminals (see next page).
