41
FW: 841013-005/843003-001
Turbidity and Suspended Solids Transmitter
EN 5.10 SuSix Manual 1406

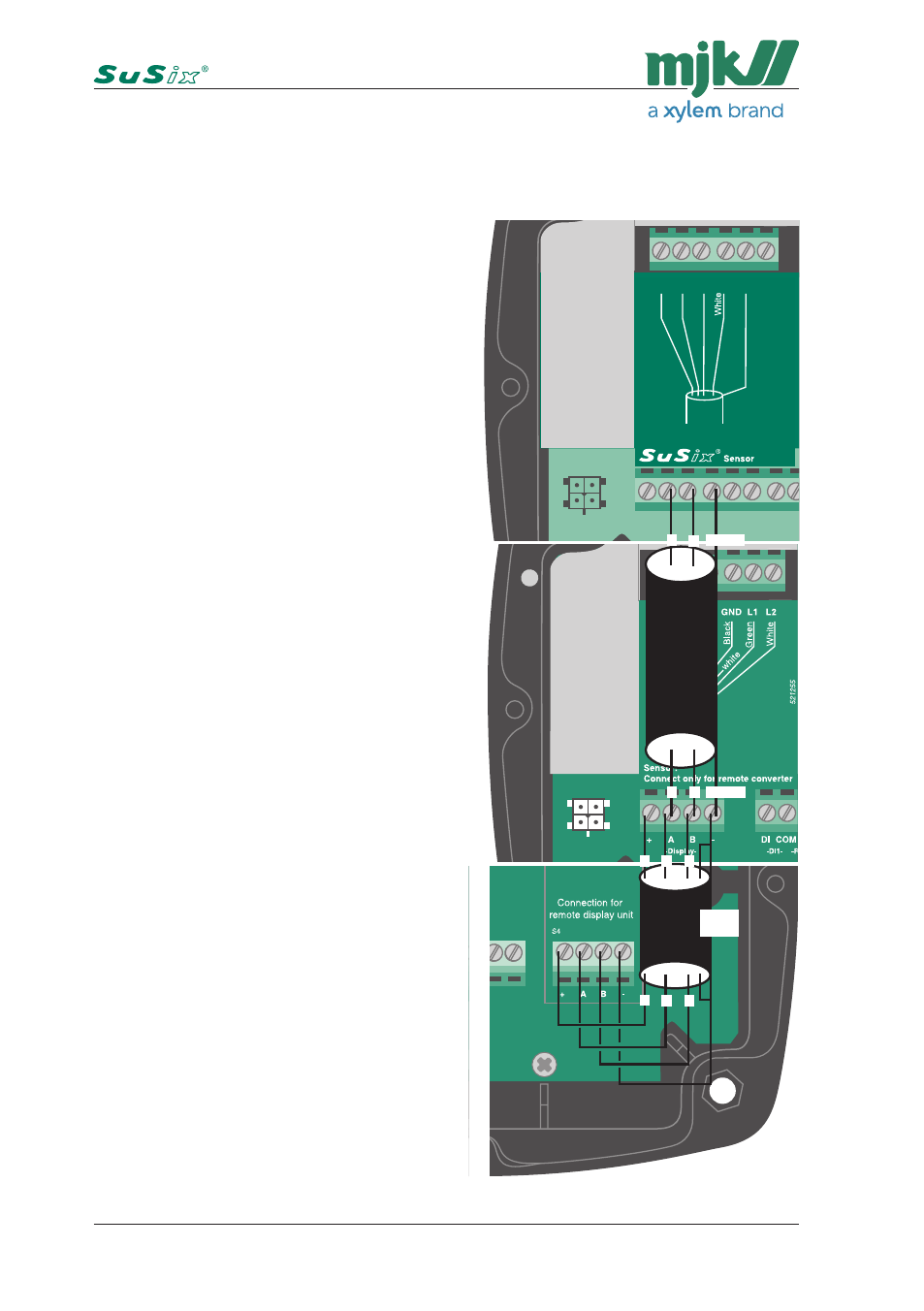

Wiring Schematic #2
for "SuSix
®
with Blind Lid and a Magflux
®
with Blind Lid connected to a
common wall mounted Display Unit" on the opposite page (page
40
).
SuSix
®
with Blind Lid
2-wire, shielded twisted cable
1. Connect lead "1" to slot "Display A"
2. Connect lead "2" to slot "Display B"
3. Connect the twisted shield to slot
"Display -"
Magflux
®
with Blind Lid
2-wire, shielded twisted cable
1. Connect lead "1" to slot "Display A"
2. Connect lead "2" to slot "Display B"
3. Connect the twisted shield to slot
"Display -".
4-wire, shielded twisted cable
1. Connect lead "1" to slot "Display +"
2. Connect lead "2" to slot "Display A"
3. Connect lead "3" to slot "Display B"
4. Connect the twisted shield to slot
"Display -".
Wall Mounted Display Unit
4-wire, shielded twisted cable
1. Connect lead "1" to slot "Display +"
2. Connect lead "2" to slot "Display A"
3. Connect lead "3" to slot "Display B"
4. Connect the twisted shield to slot
"Display -".
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
A
B
207920
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
Mains
supply
-mA-
-D02-
-D01-
-DI-
-Display-
+
+
A
B
C2 N02
C NO
N01
PE
N
L
-
-
C1
Line
2 wire
shielded cable.
4 wire
shielded cable.
Fuse 24V A
C:
500mA
T
Fuse 115V A
C:
125mA
T
Fuse 230V A
C:
63mA
T
Display unit
Converter #4
Converter #1
Max. four MJK converters with Modbus
can be connected to one display unit:
521268
+DC GND A
B
Pink
Gr
ey
Br
own
Shield
521269
www.mjk.com
DK: +45 45 56 06 56
NO: +47 69 20 60 70
SE: +46 53 31 77 50
NL: +31 251 672171
USA: +1 847 482 8655
AUS: +61 3 9758 8533
1 2 Shield
4 and
shield
1 2 Shield
1 2 3
1 2 3
