Xylem SuSix Turbidity and Suspended Solids Transmitter User Manual
Page 19
19
FW: 841013-005/843003-001
Turbidity and Suspended Solids Transmitter
EN 5.10 SuSix Manual 1406

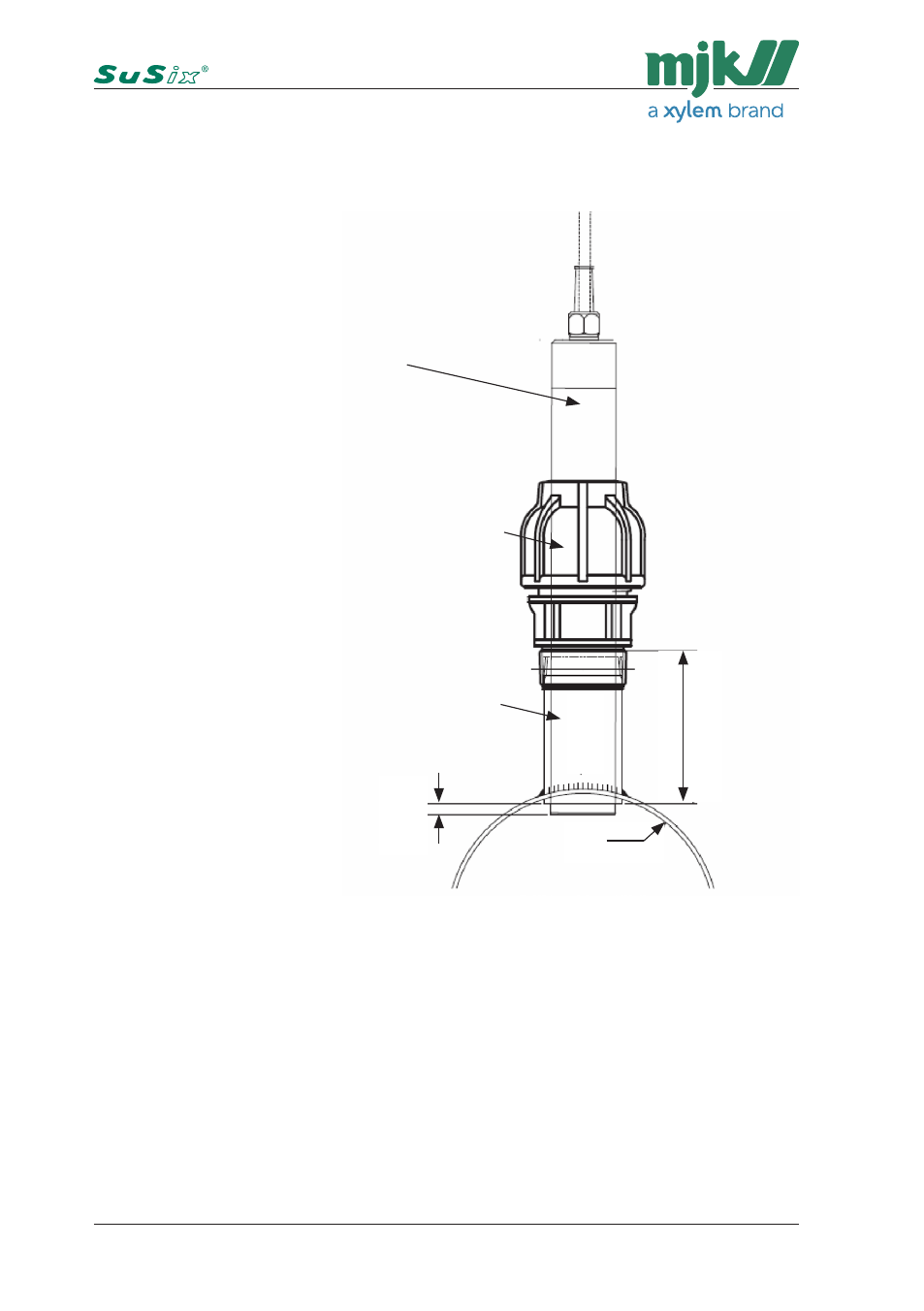

6. This drawing below illustrates a SuSix
®
sensor installed in an in-line
clamp fitting with parts and dimensions.
MJK Automation A/S
MJK, 206310-12 SuSix
®
sensor
GPA, ZFP 040-R040
PP- d40 x 1½” inner RG
1½” welding stud, 1½” outer thread RG
5 mm
1½”
nippel
122 mm
Min. Ø100 mm
90 degrees
