Xylem SuSix Turbidity and Suspended Solids Transmitter User Manual
Page 16
16
EN 5.10 SuSix Manual 1406
FW: 841013-005/843003-001
Turbidity and Suspended Solids Transmitter

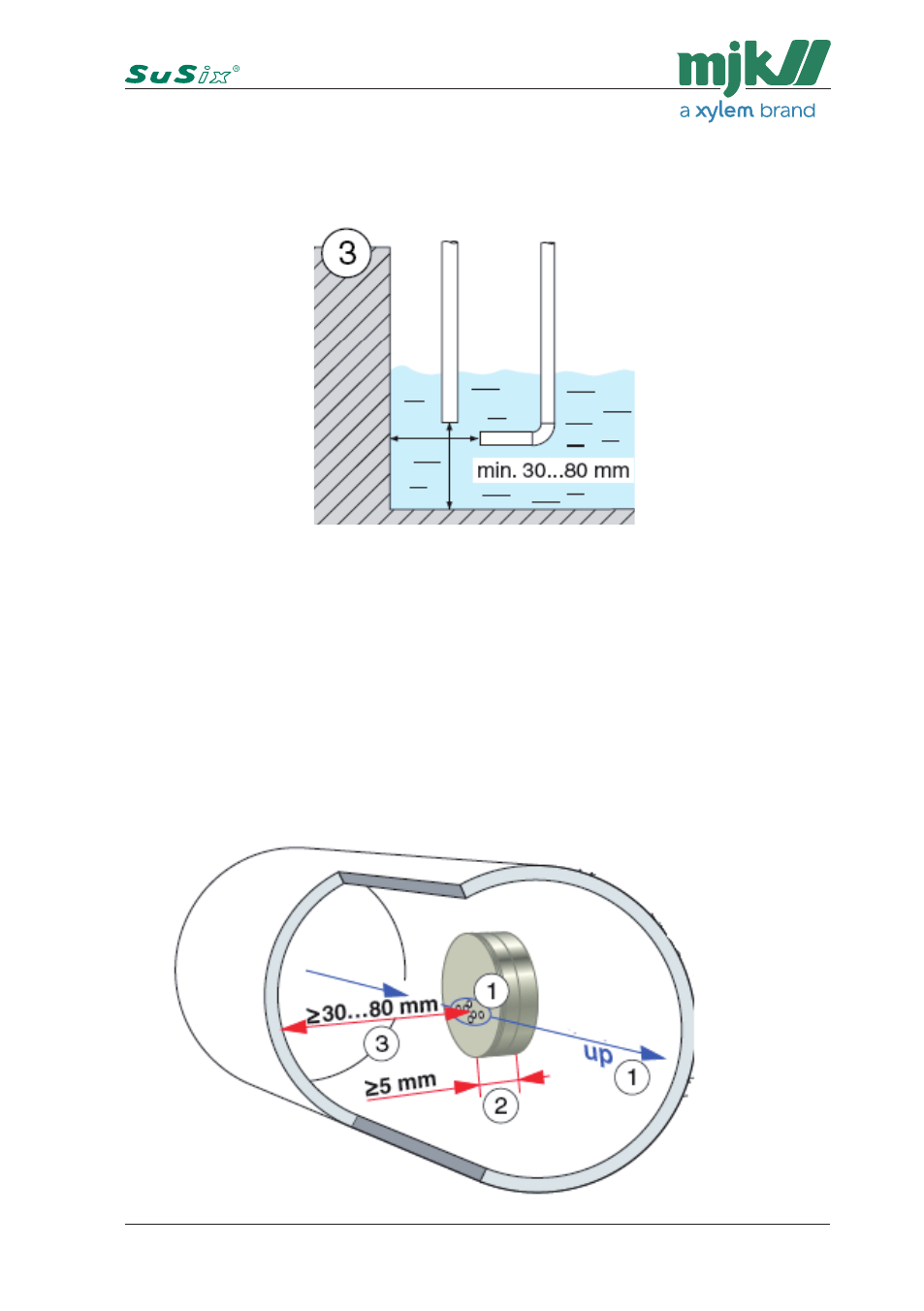

3. The distance from the sensor head (the optics) to solid faces (for exam-
ple bottom and walls) must be at least 30 - 80 mm (depending on the
liquid’s concentration).
Mechanial installation of sensor in a tube (in-line)
Mounting guidelines
1. The optical windows row have to be arranged lengthwise to the me-
dium flow direction (
1).
2. Keep the minimal insertion depth >5 mm (
2).
3. Control the minimum distance to the opposite wall. Must be >30 …80
mm depending on the concentration (
3).
