29 FW: 841013-005/843003-001
Turbidity and Suspended Solids Transmitter
EN 5.10 SuSix Manual 1406
5. Converter
Electrical Mounting
Warning!
The SuSix® converter/display unit must not be mounted in
explosion hazardous areas!

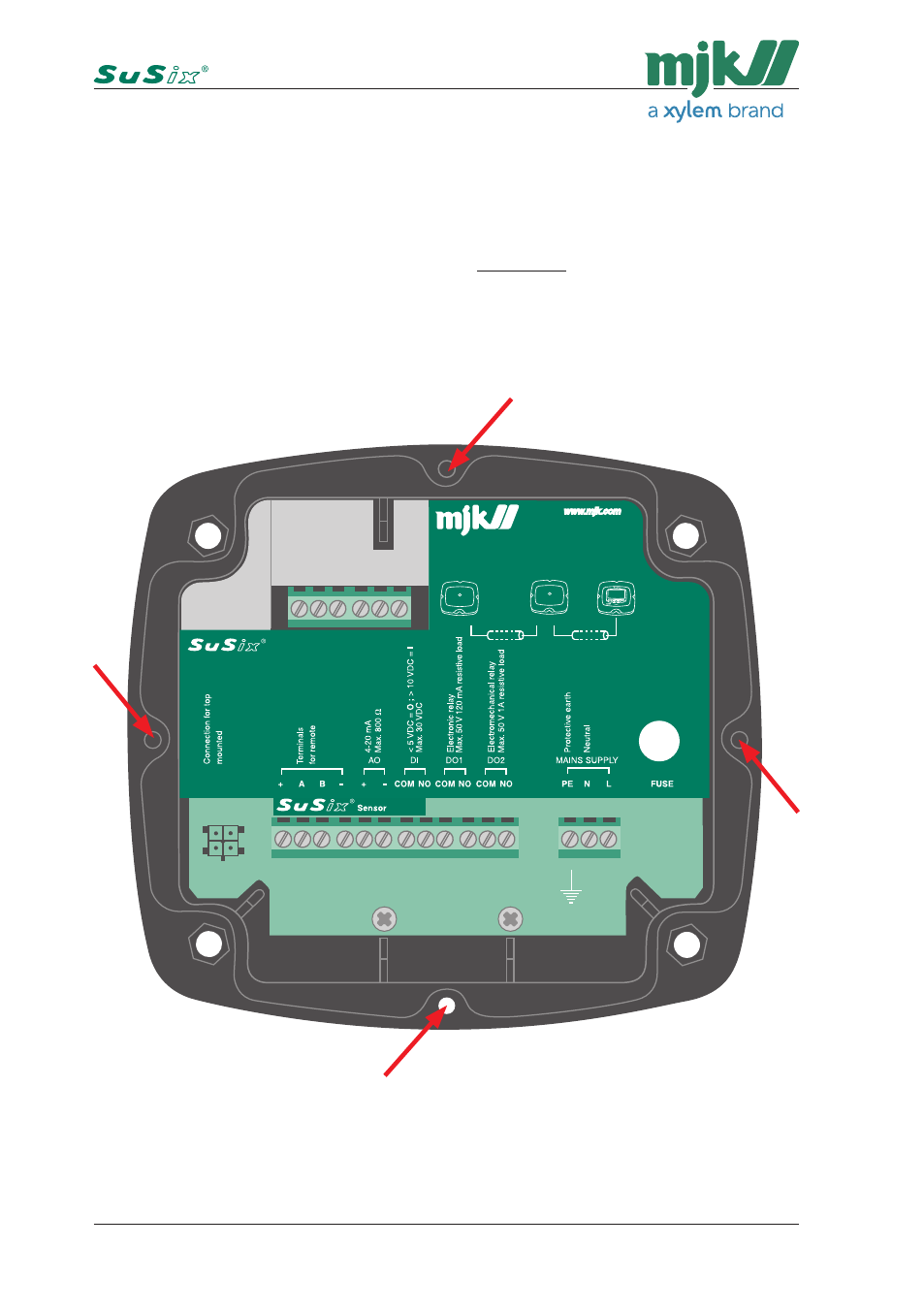

Loosen the four screws (positions indicated by arrows) and remove the
display unit to gain access to the terminals.
Mains
supply
-mA- -D02- -D01- -DI- -Display-
+ + A B C2 N02 C NO N01 PE N L - -
+DC GND A B
Pink Gr
ey
Br
own
Shield
521269
C1
Line
2 wire
shielded cable.
4 wire
shielded cable.
Fuse 24V A
C:
500mA
T
Fuse 115V A
C:
125mA
T
Fuse 230V A
C:
63mA
T
displa
y unit
displa
y unit
Display unit Converter #4 Converter #1
Max. four MJK converters with Modbus
can be connected to one display unit:
521268
