Mechanical installation of a submerged sensor – Xylem SuSix Turbidity and Suspended Solids Transmitter User Manual
Page 15
15
FW: 841013-005/843003-001
Turbidity and Suspended Solids Transmitter
EN 5.10 SuSix Manual 1406
Mechanical installation of a submerged sensor
Preparation
Select an easy-to-get-to position for a measuring point which can produce
a valid and representative measuring value.
Position of submerged sensor
The following three steps are of vital importance for getting optimal meas-
uring values.

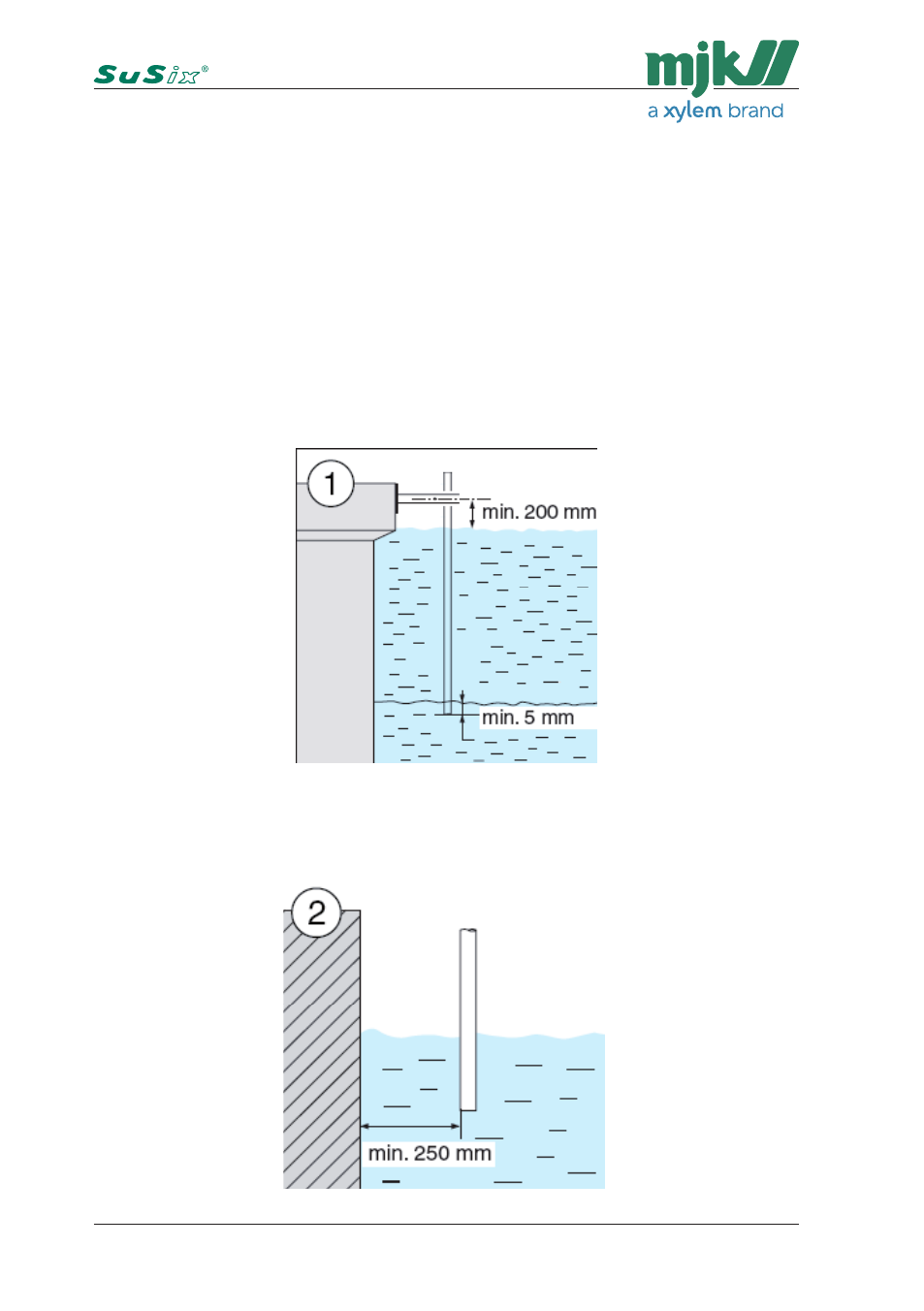

1. The sensor (the optics) must be submerged at least 5 mm in the liquid.
2. The sensor to wall distance must be at least 250 mm.
