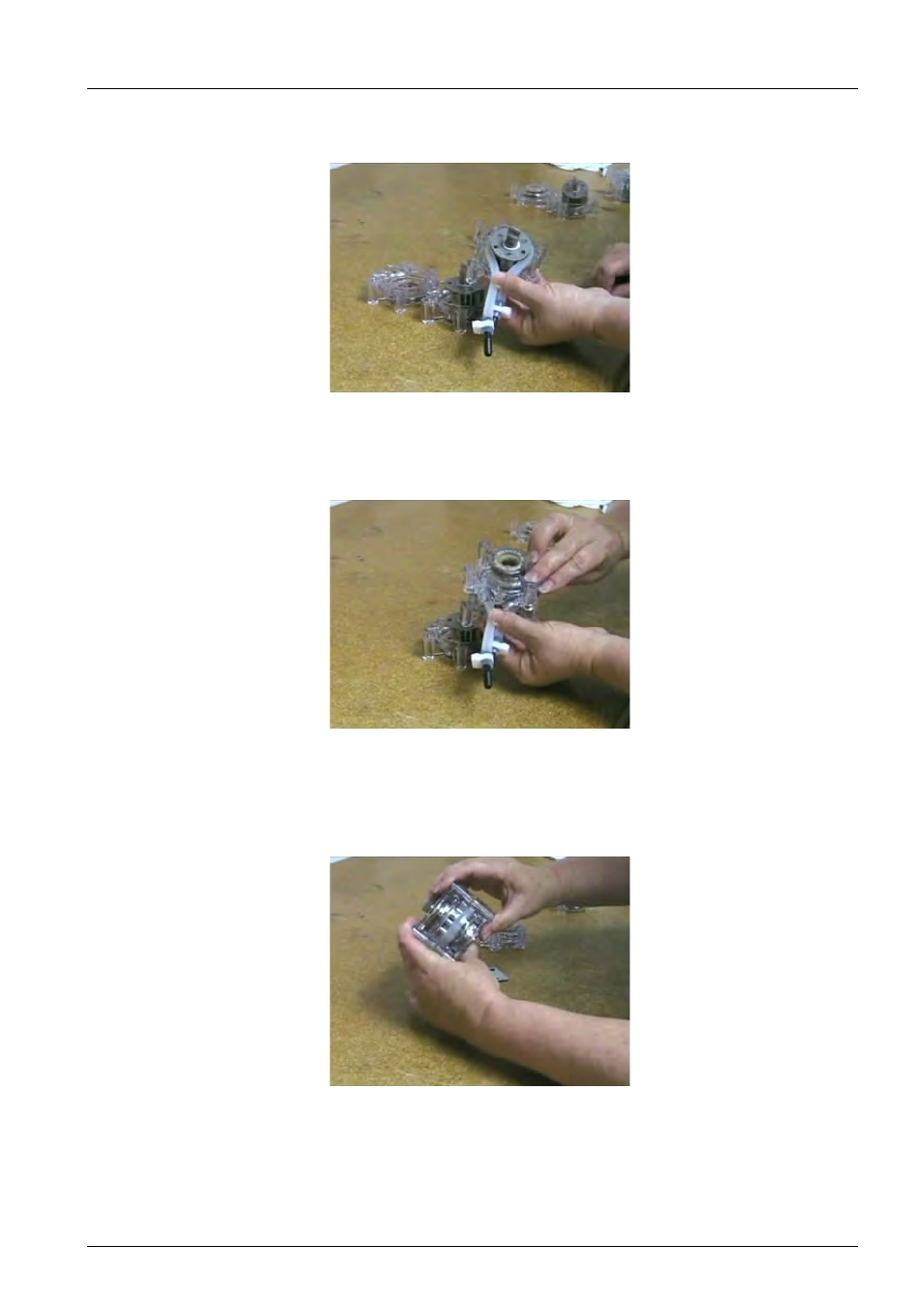

20 The tube is now in the dent. See Fig. 5-20,  87.
Fig. 5-20: Pump tube in the dent
21 Place the upper part of the pump head on the motor shaft. See
Fig. 5-21,  87.
Fig. 5-21: Positioning the upper part of the pump head
22 Arrange both halves of the pump head and then press them
together. See Fig. 5-22,  87.
Make sure that the tube is not pinched between both halves!
Fig. 5-22: Pressing together both halves of the pump head
Mounting the pump 23 Position the pump head on the pump drive in the analyzer.
