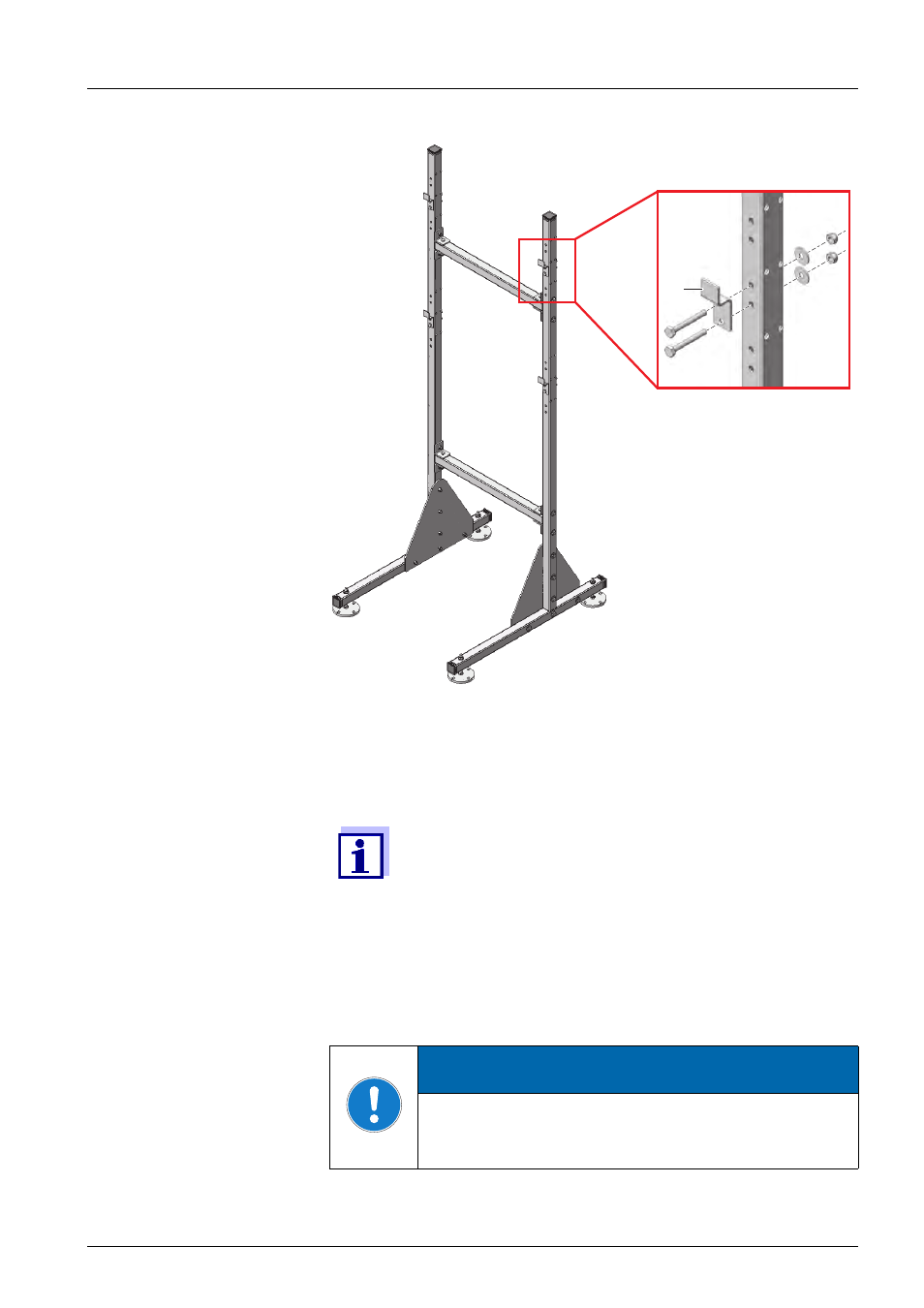

Fig. 3-4: Mounting the retaining hooks
7 Mount the four retaining hooks (8) on the stand mount. To do so,
use a total of eight M8 hexagon head screws with large M8 plain
washers and locknuts.
Positioning the stand
mount
8 Place the stand mount at the intended operating location.
9 Adjust the four height adjustable stand feet so that the stand
mount stands straight.
There are three pairs of holes each for the upper and lower
retaining hooks. Thus the analyzer can be mounted opti-
mally at working level. Use the same relative positions for
each of the upper and lower hooks.
8
ATTENTION
Always screw the four stand feet to the ground. With
installation at an open air test site, make sure that the
installation will also hold out against strong storms.
