15 Insert the mounting aid (included in the scope of delivery)
between the rotor plate and the tube. See Fig. 5-17,  86.

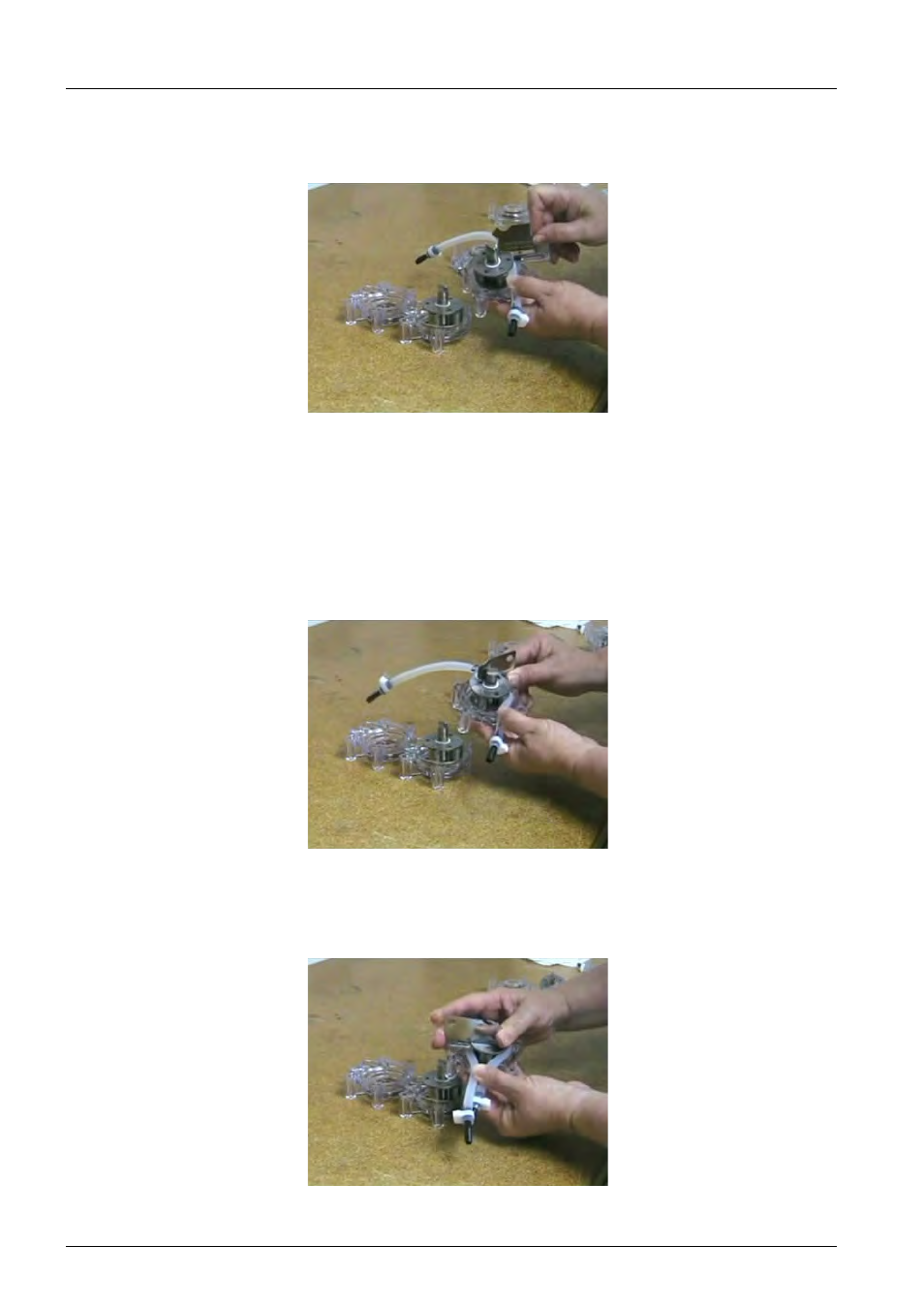

Fig. 5-17: Inserting the mounting aid
16 Push the mounting aid completely inside. The mounting aid
presses the tube into the dent.
17 Turn the mounting aid counterclockwise while holding the tube
with your thumb. See Fig. 5-18,  86.
18 Continue until the tube is completely around the rotor.
Fig. 5-18: Turning the mounting aid anticlockwise
19 Hold both ends of the tube with your thumb and remove the
mounting aid. See Fig. 5-19,  86.
Fig. 5-19: Removing the mounting aid
