3.3.2 Installing the housing
The housing of the P 700 IQ can be installed in the following ways:
• On the SM stand mount. See section 3.3.2.1 Installation on the SM
stand mount,  24.
• On a rail. See section 3.3.2.2 Installation on a rail,  29.
• On a wall. See section 3.3.2.3 Installation on a wall,  33.
3.3.2.1 Installation on the SM stand mount
Proceed as follows to install the housing on the stand mount:
Assembling the stand
mount

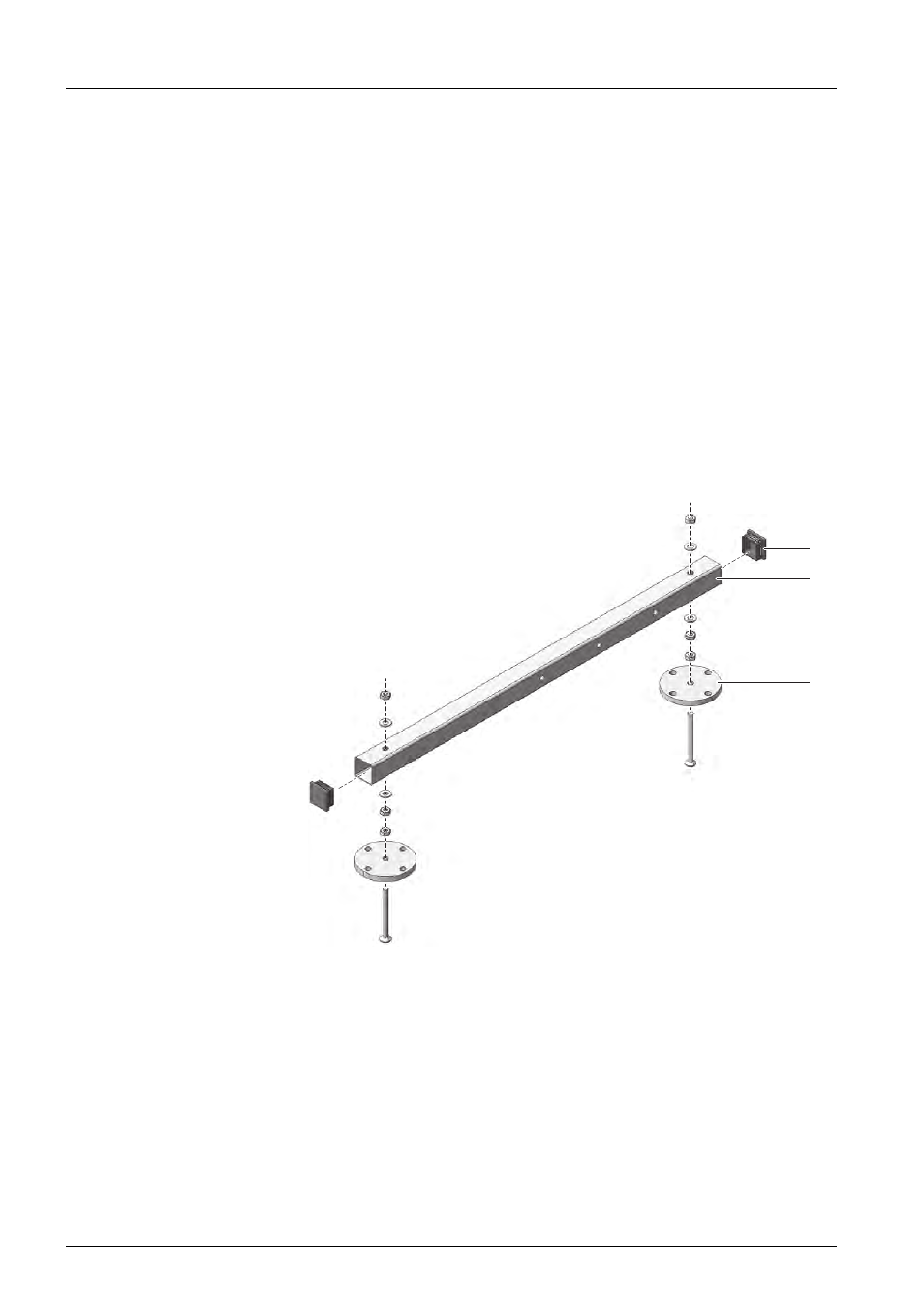

Fig. 3-1: Mounting the ground pipes
1 Press the plastic protective plugs (1) into both ends of the square
ground pipes (2).
2 Mount the four height adjustable stand feet (3) on the square
ground pipes (2) using the enclosed M10 hexagon countersunk
head screws. Make sure to use the correct number of plain wash-
ers and nuts in the correct order according to Fig. 3-1,  24.
1
2
(2 x)
3
