P 700 IQ

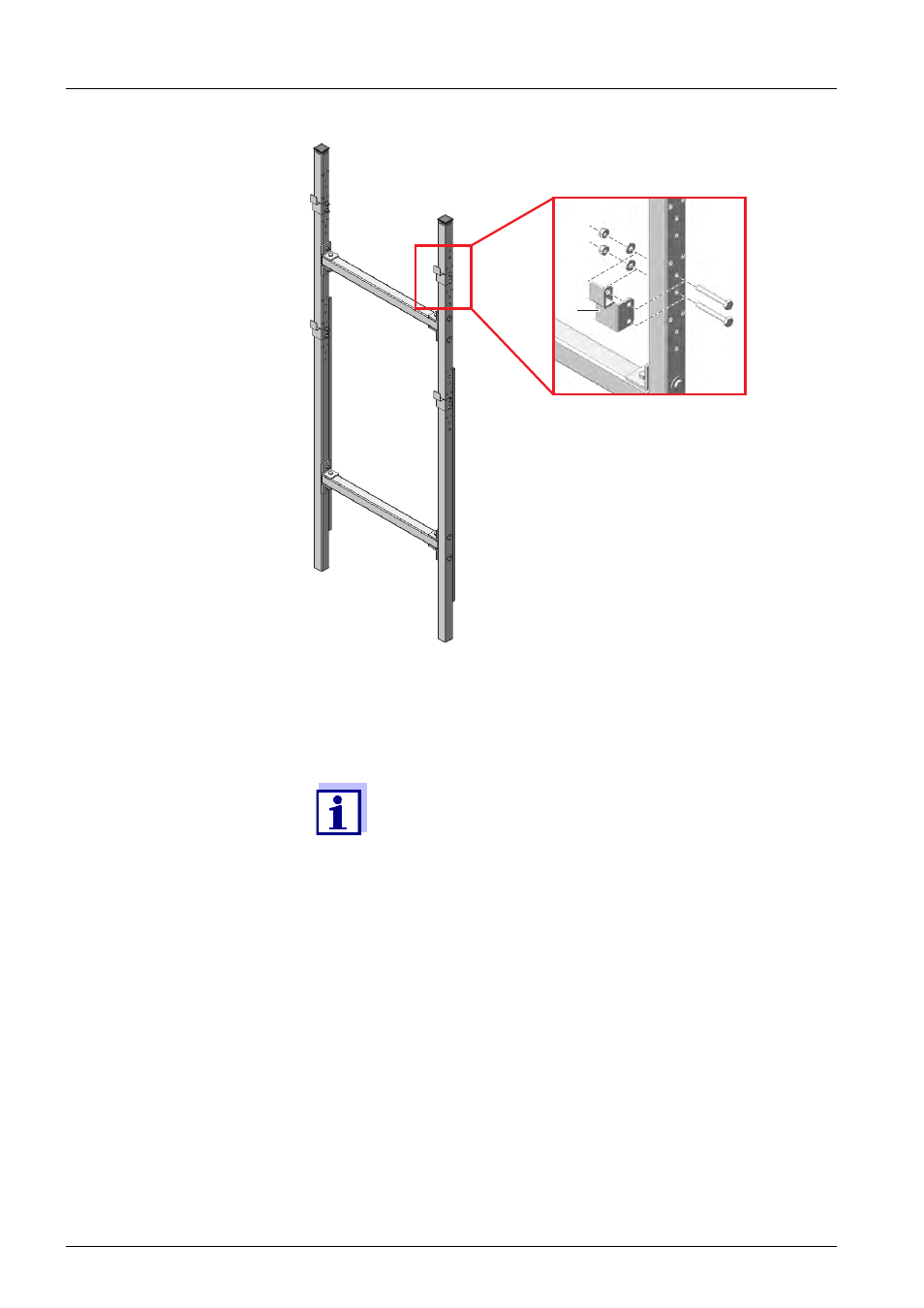

Fig. 3-8: Mounting the retaining hooks
3 Mount the four retaining hooks (5) on the rail mount. To do so,
use a total of eight short M8 hexagon head screws with small M8
plain washers and locknuts.
There are three pairs of holes each for the upper and lower
retaining hooks. Thus the analyzer can be mounted opti-
mally at working level. Use the same relative positions for
each of the upper and lower hooks.
