Appendix
Serial Communication Point Maps
Serial Communications Programming

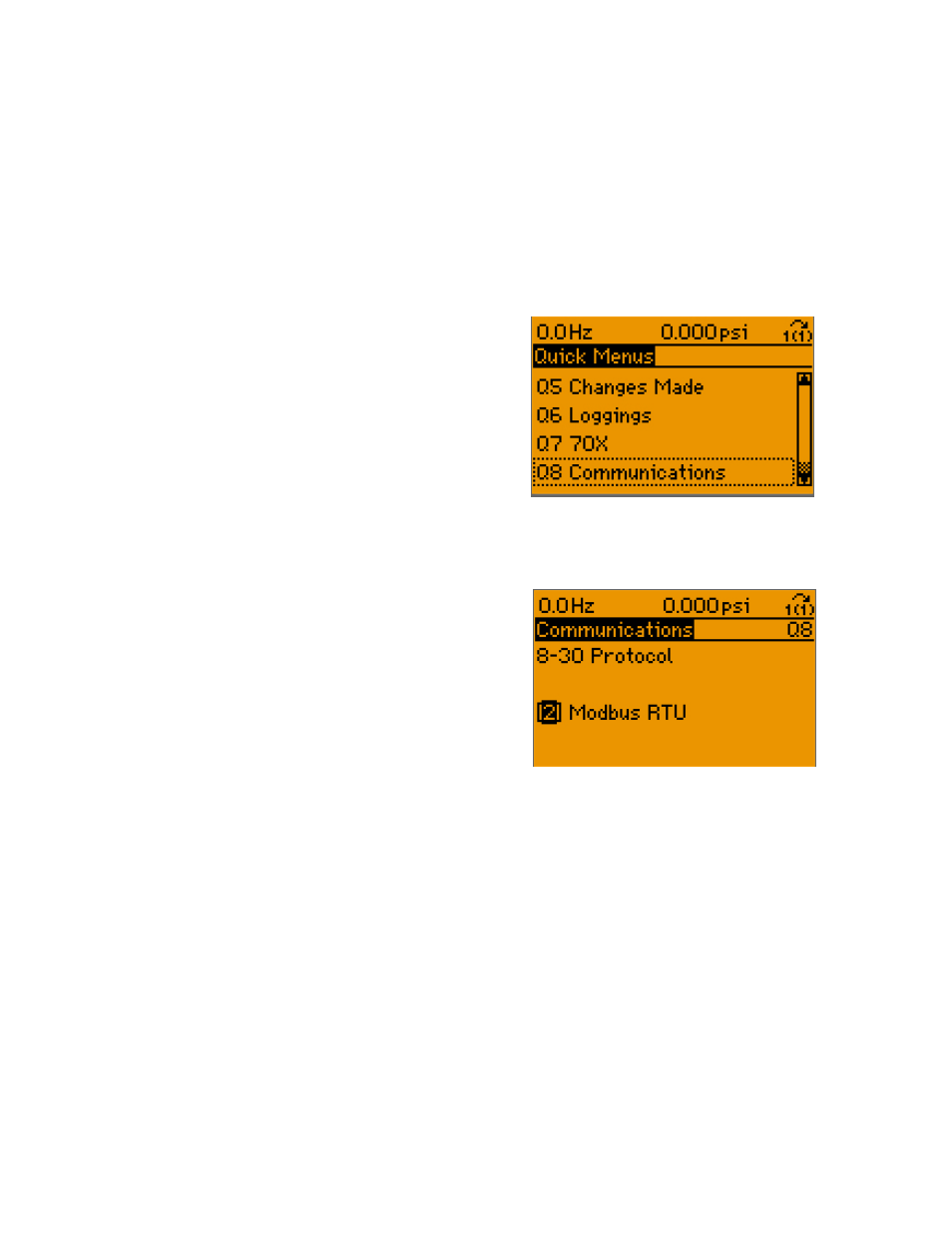

Select the serial communication protocol type in Quick
Menu item Q8, Communications.
Press the OK key to access the parameter choices
and scroll to parameter 8-30, Protocol to select the
protocol in use.
Protocols
Metasys N2: starts on page 63
Modbus RTU: starts on page 65
FLN: starts on page 68
