Bell & Gossett 176R0649C Technologic 502 Series Pump Controller User Manual
Page 36
36
Section 6 Programming and Operation
Basic Drive Programming
The following section demonstrates how to enter
basic motor and system data into the drive’s internal
memory. Most, if not all, of these functions are com-
monly factory programmed when specific applications
are known prior to shipment. For other applications,
the information provided here must be entered. (See
Section 5, User Interface for details on using the local
control panel.)
Entering Basic Motor Data

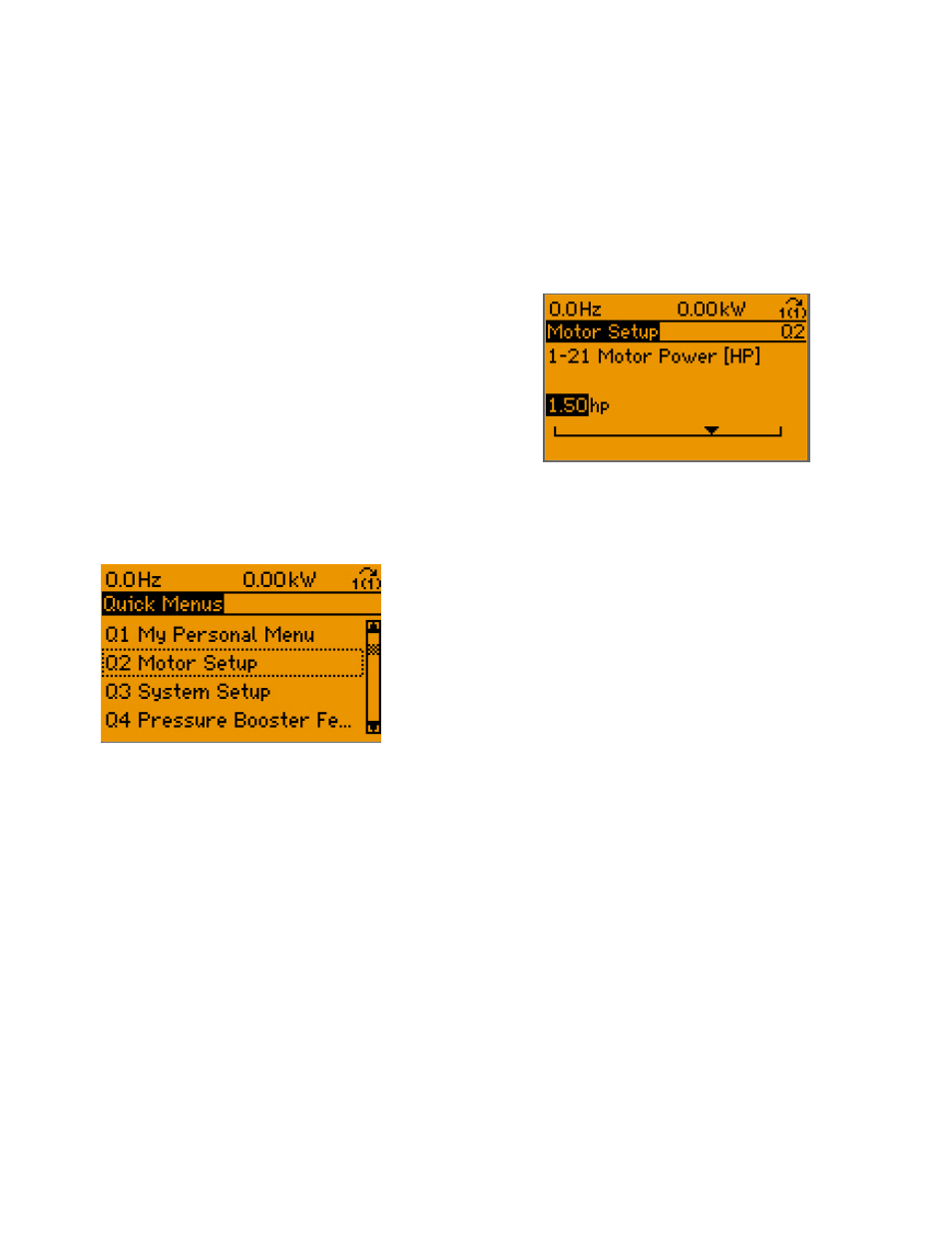

1. Enter the Quick Menu by pressing the Quick
Menu Key on the keypad.
2. Use the up/down arrows to find parameter
Q2, Motor Setup and press the OK key.
3. Press the OK key again to access the
parameter. Use the up/down arrows to
change values. From the motor nameplate,
enter the correct information for the following
settings.
1-21 Motor Power (HP)
1-22 Motor Voltage (VAC)
1-23 Motor Frequency (Hz)
1-24 Motor Current (A)
1-25 Motor Nominal Speed (Hz)
4-12 Motor Speed Low Limit (Hz)
4-14 Motor Speed High Limit (Hz)
Designating Master or Follower Drives
Master drives contain the optional MCB101 master
board located behind the LCP (see Figure XX). Pro-
gramming for the Master drive is factory installed.
