4-13 ASUS AP140R-E1 1U barebone server

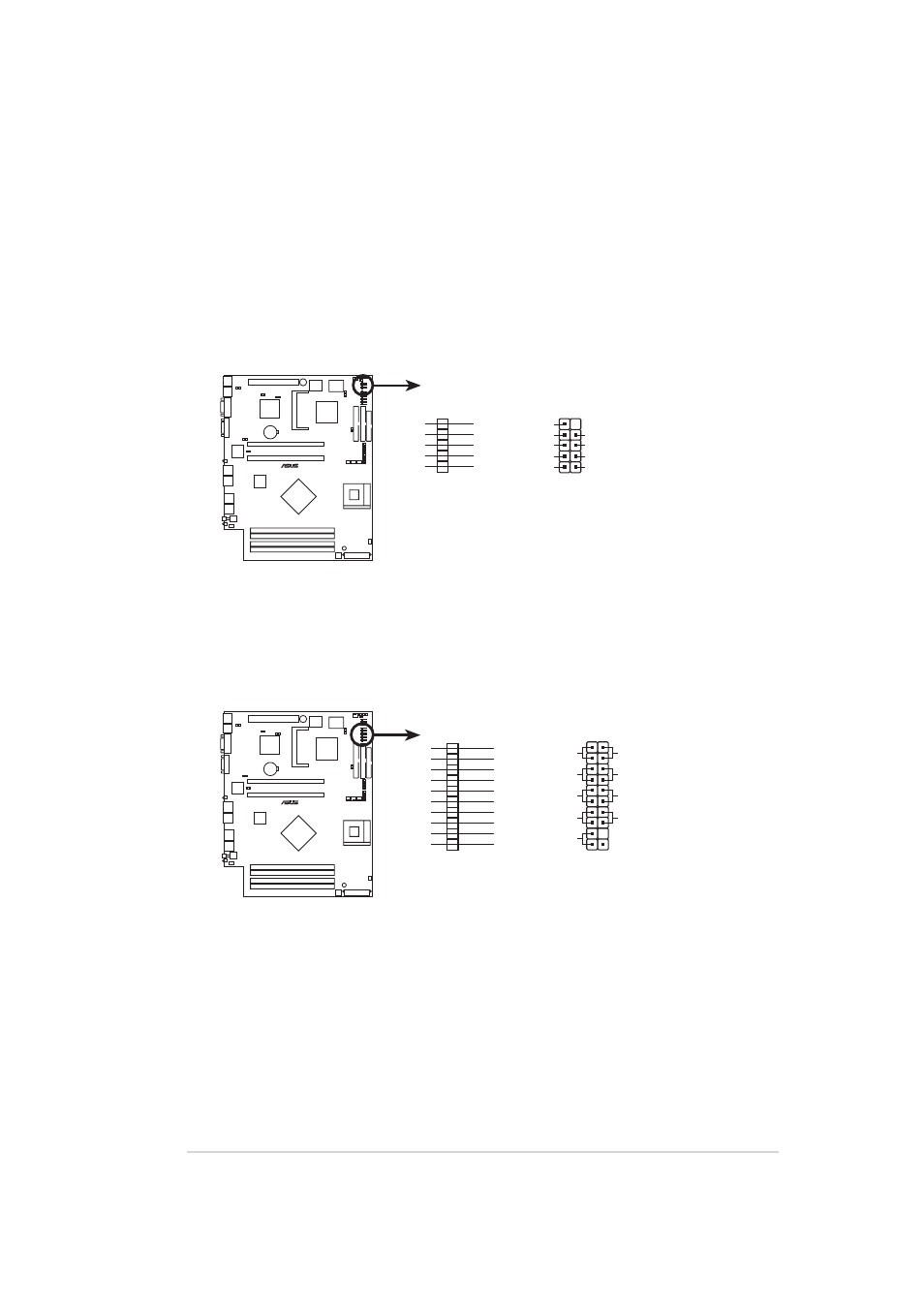

PSCH-LR
®
PSCH-LR PANEL Connector
LAN1_LED
LAN2_LED
IDE_LED
FP_LOCLED
PWR LED
RESET
PWRBTN
MSG_LED
FP_LOCSW
1
10. System panel connector (20-1 pin PANEL1)
This connector accommodates several system front panel functions.
9. USB header (10-1 pin USB34)
This USB header is connects to the two USB ports on the front panel.
The header complies with USB 2.0 specification that supports up to
480 Mbps connection speed. This speed advantage over the
conventional 12 Mbps on USB 1.1 allows faster Internet connection,
interactive gaming, and simultaneous running of high-speed
peripherals.
PSCH-LR
®
PSCH-LR USB Connector
+5V DUAL
1
USB-
USB+
GND
+5V DUAL
USB-
USB+
GND
NC
