ASUS AP140R-E1 1U barebone server 1-5
1.5 Internal features

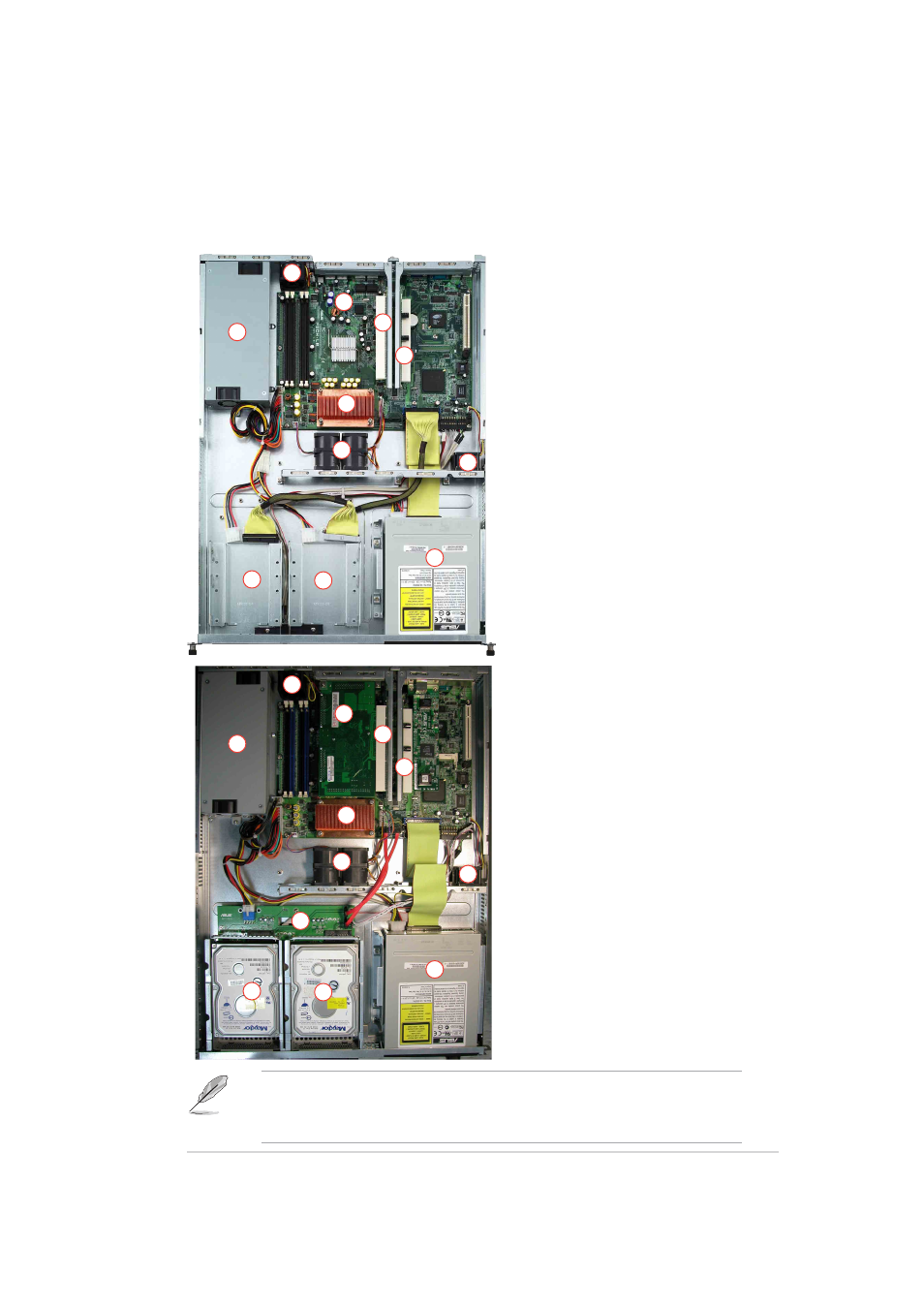

The barebone system includes the basic components as shown.
1. Power supply
2. Rear fan
3. PSCH-LR motherboard
4. PCI-X riser card (PCIX2)
5. PCI-X riser card (PCIX1)
6. CPU heatsink
7. System fans
8. Device fan
9. HDD bay 1
10. HDD bay 2
11. Optical drive
5
7
1
4
6
8
9 10
11
2
3
The barebone system does not include a floppy disk drive. Connect an
external floppy disk drive (USB interface) to any of the USB 2.0 ports on
the front or rear panel if you need to use a floppy disk.
5
7
1
4
6
8
9 10
2
3
1. Power supply
2. Rear fan
3. PSCH-LR motherboard
4. PCI-X riser card (PCIX2)
(Not include PCI-X card)
5. PCI-X riser card (PCIX1)
(Not include PCI-X card)
6. CPU heatsink
7. System fans
8. Device fan
9. Hot-swap HDD bay 1
(Not include HDD)
10. Hot-swap HDD bay 2
(Not include HDD)
11. 52X Optical drive
12. SATA HDD backplane
11
12
