Chapter 4: Motherboard information 4-10
PSCH-LR
®

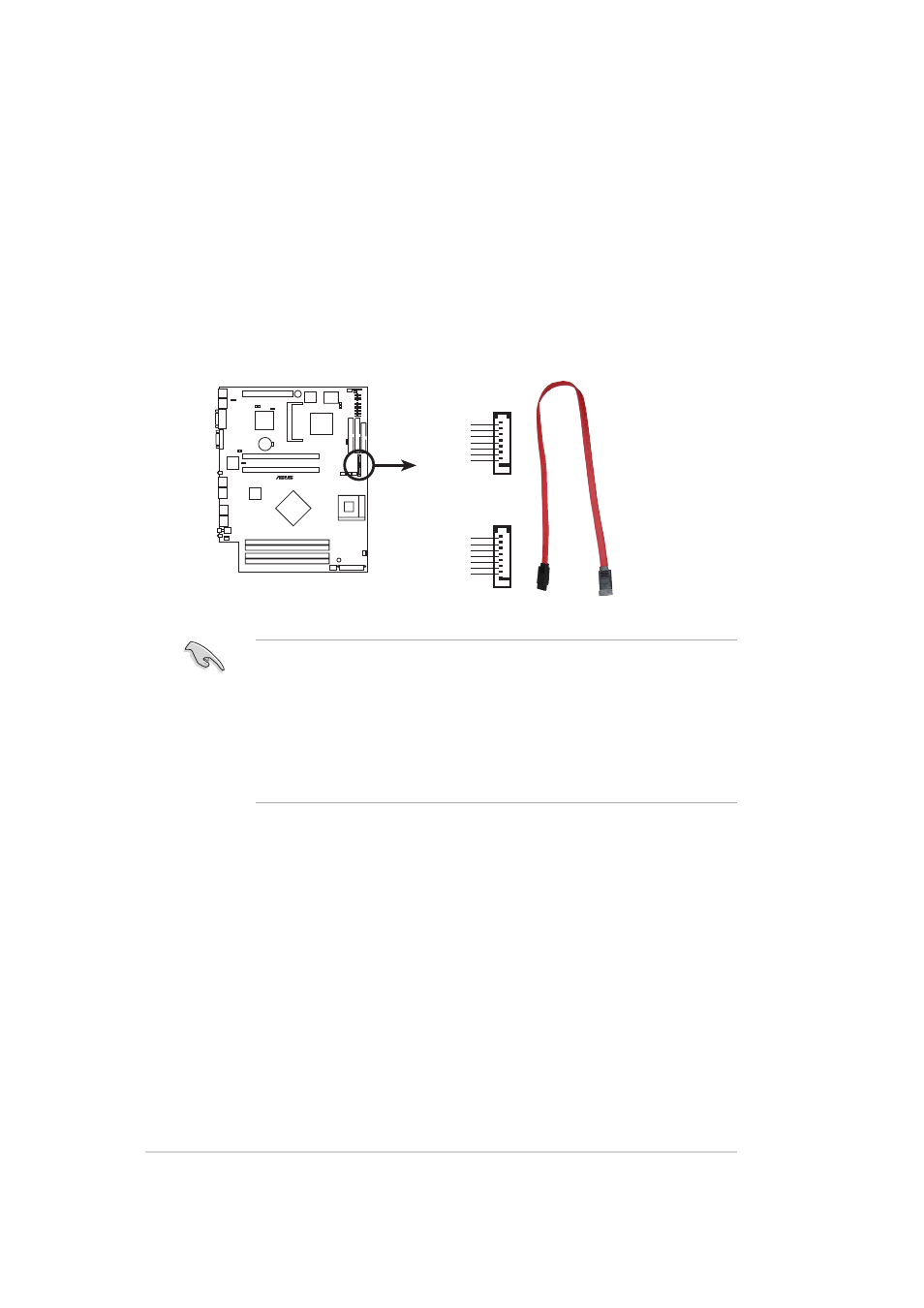

PSCH-LR SATA Connectors
SATA2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
4. Serial ATA connectors (7-pin SATA1, SATA2)
These next generation connectors support the thin Serial ATA cables
for Serial ATA hard disks. The current Serial ATA interface allows up to
150 MB/s data transfer rate, faster than the standard parallel ATA with
133 MB/s (Ultra ATA/133).
If you installed Serial ATA hard disks, you may create a RAID 0/RAID 1
configuration using the RAID feature of the Intel
® 6300ESB ICH.
Important notes on Serial ATA and RAID feature
1. You must enable the RAID function on the BIOS if you wish to
create a RAID disk. Refer to “Chapter 5 BIOS Setup” for
information.
2. Create a RAID driver disk from the Drivers folder in the support
CD. Select the specific driver folder for your operating system.
